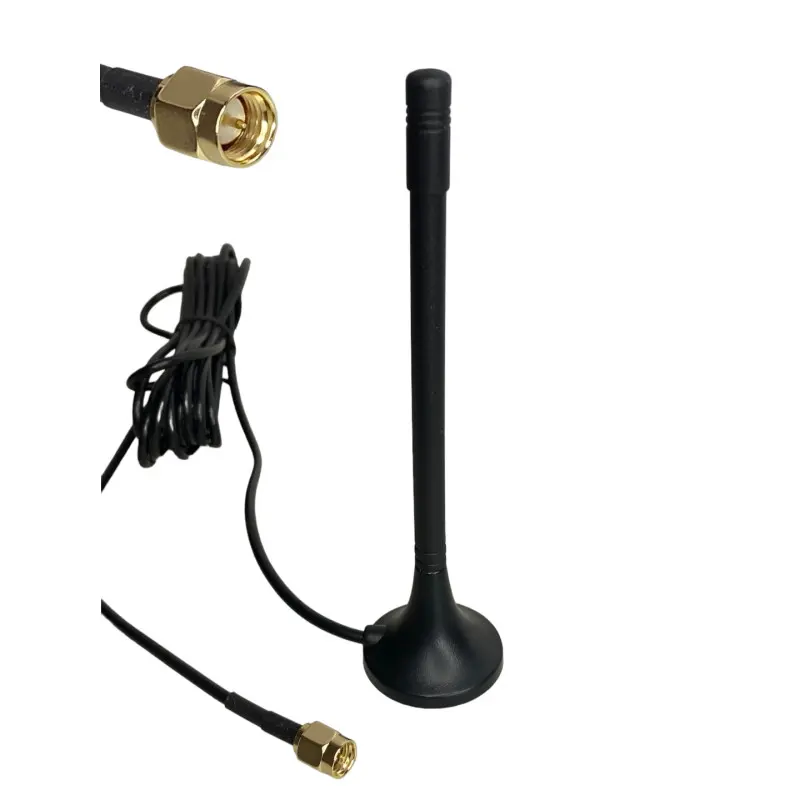

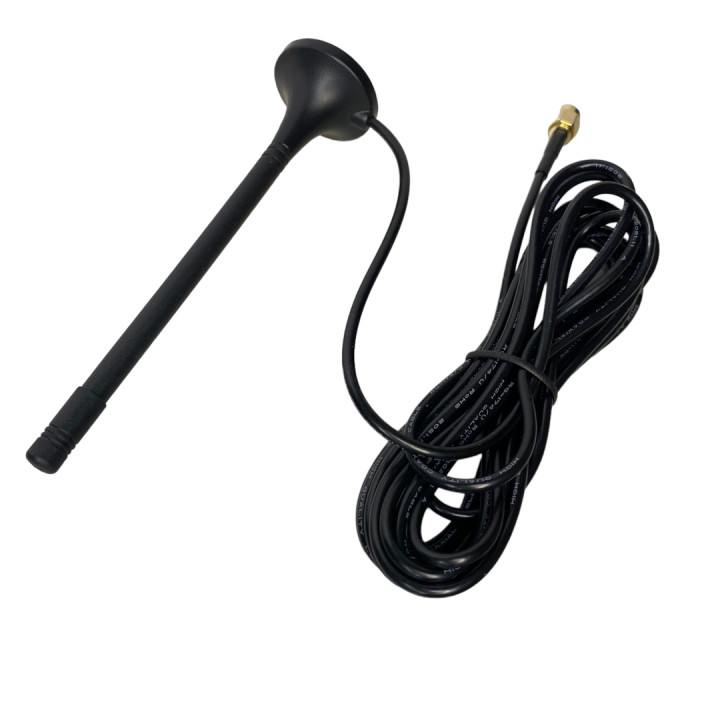

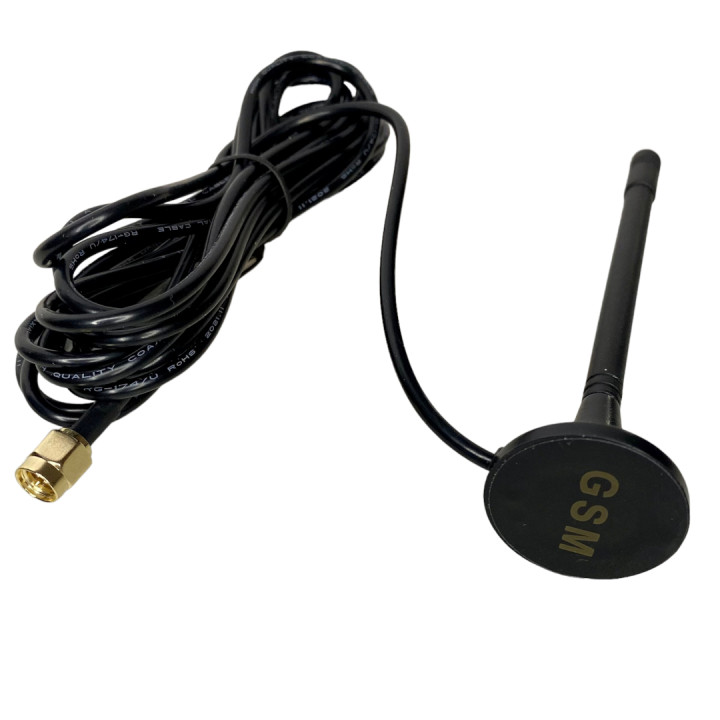

GSM 3G LTE 2dBi vertical MAGNET antenna SMA plug X16

GSM ANTENNA 2dBi 824-960MHz, 1710-2655MHz SMA PLUG with a magnetic attitude

Dual-band GSM antenna with wide range of applications:

• telephony, payment terminals,
• vending machines,
• commercial and industrial modems for use in supervision, security, telemetry and others.

Leading the antenna outside the housing devices or rooms significantly improves access and stability connections to a GSM operator.

SPECIFICATION

• Frequency: 824...960MHz, 1710...2655MHz
• Transmission: 3G, 4G, LTE
• Antenna energy gain: 2dBi
• Impedance: 50Ω
• Polarization: linear
• Operating temperature: -40...85°C
• Connector type: SMA plug
• Cable type: RG174
• Cable length: 3m
• Antenna height 120mm
• Antenna base diameter 29mm

ADDITIONAL ANTENNA OPTIONS - PAID OPTIONS - look for them on the auction as ANTENNA SUPPLEMENT:

It is possible to change the connector according to the customer's order:

• BNC-plug: electronic modules, microphones, microports and other
• CRC9- plug: GSM modems and routers
• F- plug: GSM repeaters
• FAKRA - socket: radio communication devices ( mainly automotive)
• FAKRA - plug
• FME- plug: GSM repeaters
• MC CARD - plug: modules electronic, microphones, microports and others
• MCX - plug: electronic modules, microphones, microports and others
• MMCX - plug: electronic modules, microphones, microports and more
• N- socket: GSM repeaters and other
• N-plug: repeaters, GSM plug connector
• SMA-RP - plug: electronic modules, microphones, microports and more
• SMB- socket: electronic modules, microphones, microports and others
• SMB- plug: electronic modules, microphones, microports and other
• TNC-plug: electronic modules, microphones, microports, GSM repeaters and others
• TS9- plug: GSM modems and routers
• TWIX -2 in 1 CRC9/TS9 plug: GSM modems and routers

In case of purchase of a modified antenna, it is not refundable, so if If you are not sure about the purchase, please buy an antenna and the appropriate adapter.

The antenna cable will be up to 5 cm shorter than the declared length in the description antennas.

The delivery time for a modified antenna may be extended by one day.

If you haven't found the connector you would like to mount on your antenna please submit an inquiry.

INSTALLATION NOTES:

• Antenna output to outside the device housing or room significantly improves the range and stability of data transmission.
• In the case of an antenna mounted on adhesive tape should be avoided when mounting it on surfaces metal, because it leads to a decrease in its profit and changes directional characteristics.
