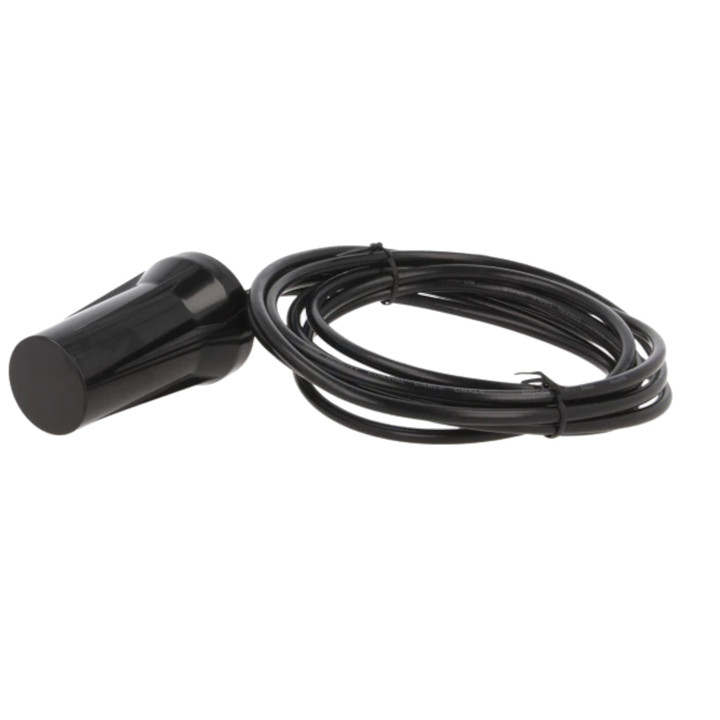

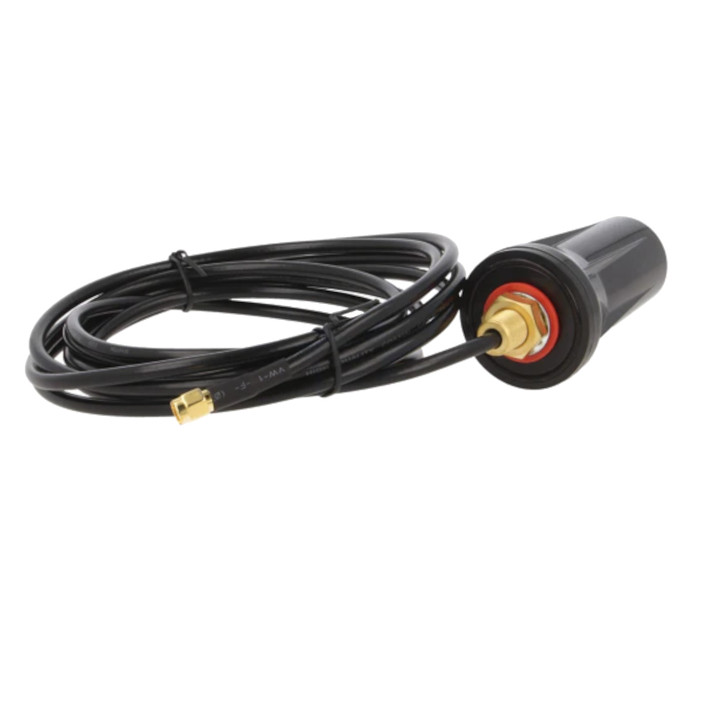

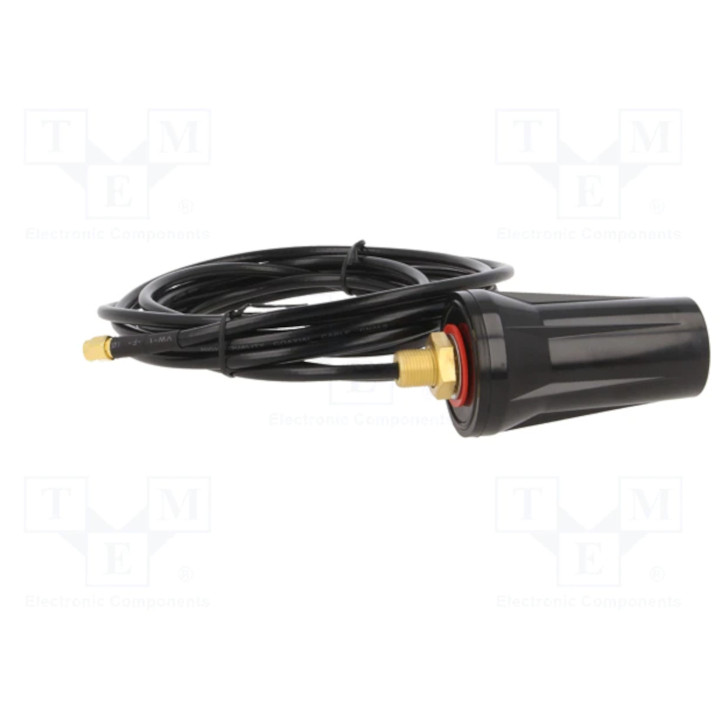

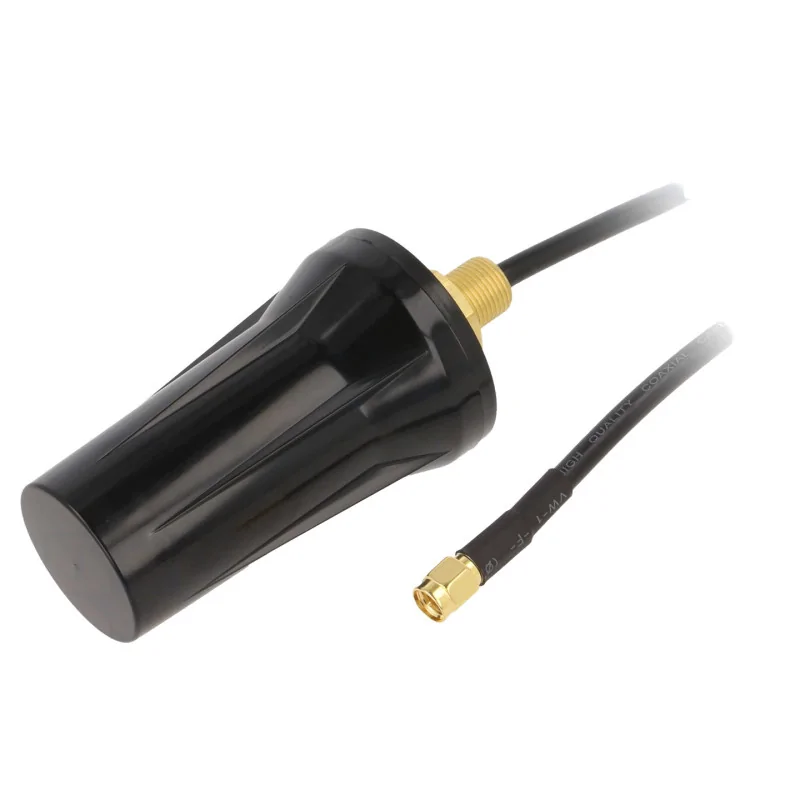

GSM 3G LTE 2dBi antenna MOUNTING SCREW SMA plug X23

GSM ANTENNA 2dBi 1710-2655MHz, 824-960MHz SMA PLUG FOR THROUGH-HOLE MOUNTING

Dual-band GSM antenna with wide application:

• telephony, payment terminals,
• vending machines,
• commercial and industrial modems for use in supervision, security, telemetry and others.

Leading the antenna outside the housing devices or rooms significantly improves access and stability connections to a GSM operator.

Antenna designed for for mounting to the housing, chassis, body through the mounting hole fi=12mm.

Once installed, it blends in discreetly with assembly place

SPECIFICATION

• Frequency : 1710...2655MHz, 824...960MHz
• Transmission: 3G, 4G, LT3G, 4G, LTE
• Antenna energy gain: 2dBi
• Impedance: 50Ω
• Polarization: linear
• Operating temperature: -40...85°C
• Mounting: screw (fixing nut)
• Diameter: mounting hole 12 mm
• Connector type: SMA plug
• Cable type: RG58
• Cable length: 3m
• Antenna height: 75.5mm
• Antenna diameter: 45mm

ADDITIONAL ANTENNA OPTIONS - PAID OPTIONS - look for them on the auction as ANTENNA SUPPLEMENT:

It is possible to change the connector according to the customer's order:

• BNC-plug: electronic modules, microphones, microports and other
• FME- plug: GSM repeaters
• N- socket: GSM repeaters and other
• N-plug: repeaters, GSM plug connector
• SMA-RP - plug: electronic modules, microphones, microports and more

In case of purchase of a modified antenna, it is not refundable, so if If you are not sure about the purchase, please buy an antenna and the appropriate adapter.

The antenna cable will be up to 5 cm shorter than the declared length in the description antennas.

The delivery time for a modified antenna may be extended by one day.

If you haven't found the connector you would like to mount on your antenna please submit an inquiry.

INSTALLATION NOTES:

• Antenna output to outside the device housing or room significantly improves the range and stability of data transmission.
• In the case of an antenna mounted on adhesive tape should be avoided when mounting it on surfaces metal, because it leads to a decrease in its profit and changes directional characteristics.
