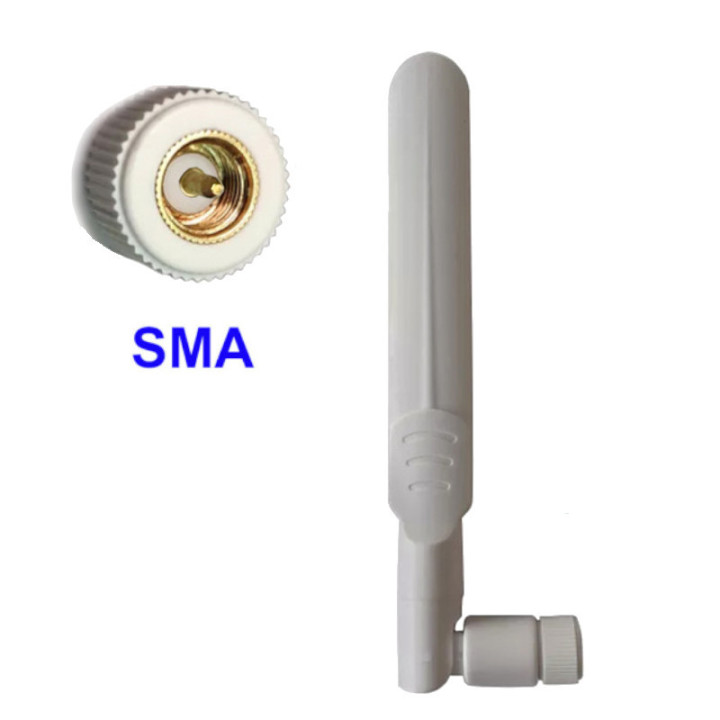

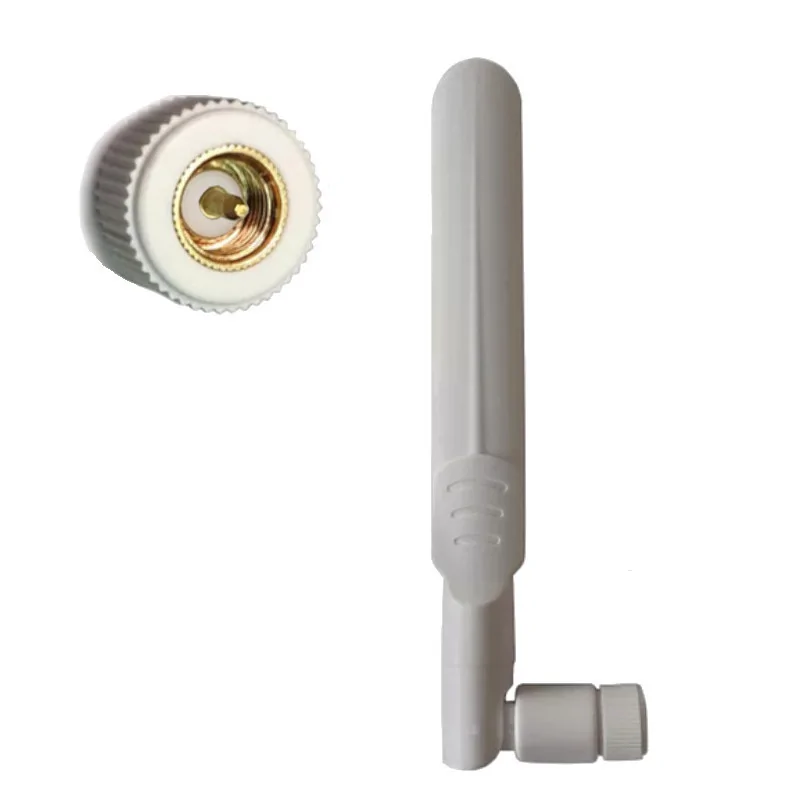

GSM, LTE 6dbi Dual Band Antenna SMA Plug WHITE

ANTENNA LTE 4G 6dBi SMA plug

Internal LTE antenna is an alternative improving the energy gain of STB routers. Thanks to this, it stabilizes the connection is established and higher connection speeds are achieved.

Supports technologies: LTE, HSPA+, HSUPA, HSDPA, UMTS, EDGE, GPRS, GSM.

Specifications :

• Gain: 6dBi
• Frequency band: 698-960 MHz and 1710-2700 MHz.
• VSWR: <1.6.
• Connector type: SMA male.
• Operating temperature: -40 to +80.
• Antenna length: 160mm

• Wave impedance: 50 Ohm

ATTENTION:
Antenna energy gain multiband is given as the sum of the gains for all component bands.
If the antenna is e.g. Dual Band WiFi 2.4/5GHz has a stated gain of 8dBi, it does not mean that this gain is for everyone 2.4GHz and 5Ghz bands. This division is usually not equal to e.g. 4dBi and 4dBi.
Dual Band WiFi 2.4/5GHz antenna with a gain of 8dBi when used only in the 2.4GHz band in reality has lower gain than a 6dBi dedicated antenna only for this band.
Using a Dual Band antenna makes sense when the router is simultaneously supports both bands for different users in different NO

In the case of multi-band antennas with a very wide operating frequency range have a given gain significantly higher than for a single-band antenna. The given numerical value of this gain has the dimension real only when aggregating bands when establishing a logical connection ( 5G technology). In the case of communication on a specific channel, the unit gain is lower.

In order to assess the parameters of the antenna, you should use its frequency response. Consider whether to use an antenna multi-band or dedicated to a specific band.

Popular multiband antennas:

• LTE (800, 900, 1800, 2100 and 2600 MHz) ,
• 5G (700 MHz / 694 – 790 MHz / 3.6 GHz /3.4 – 3.8 GHz/ and 26 GHz /24.25 – 27.5 GHz/),
• WiFi Dual Band 2.4 GHz (2.400 - 2.485 GHz) and 5 GHz (4.915 - 5825 GHz),
• and others.
