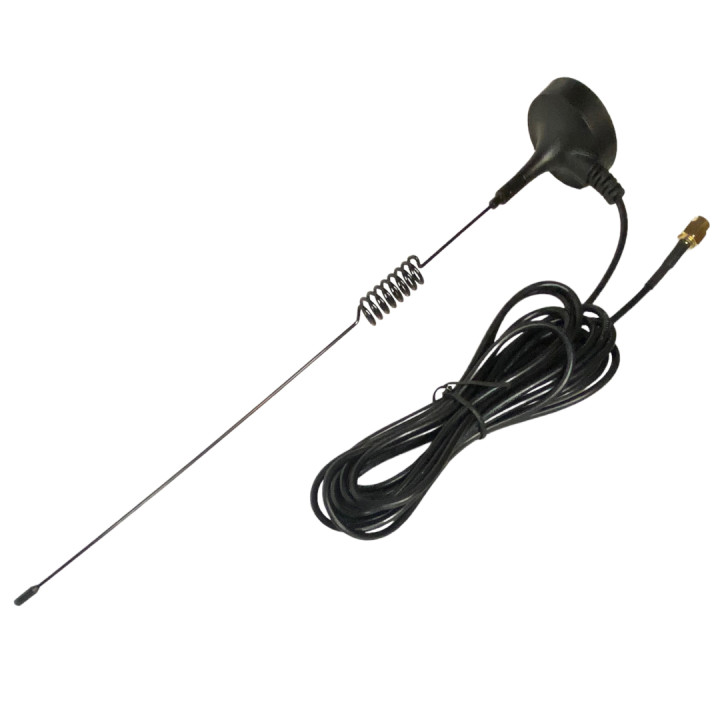

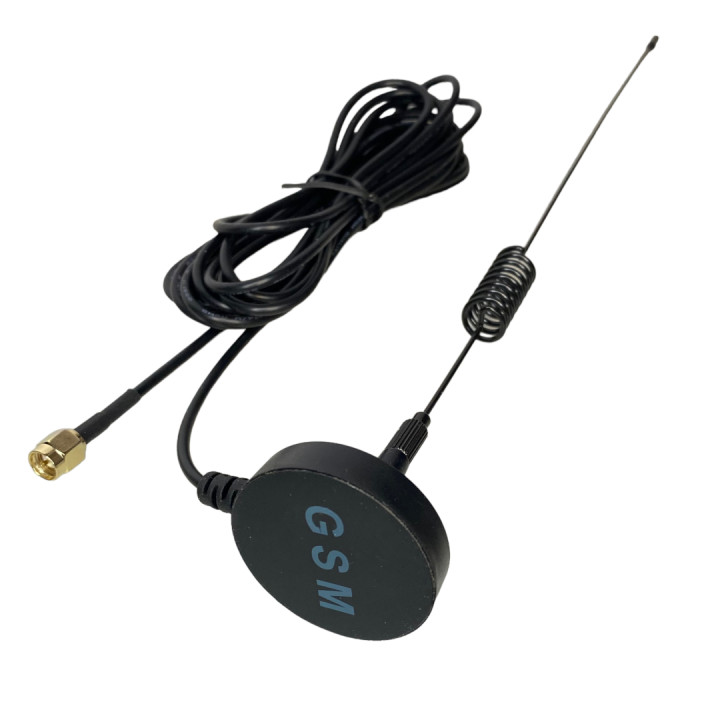

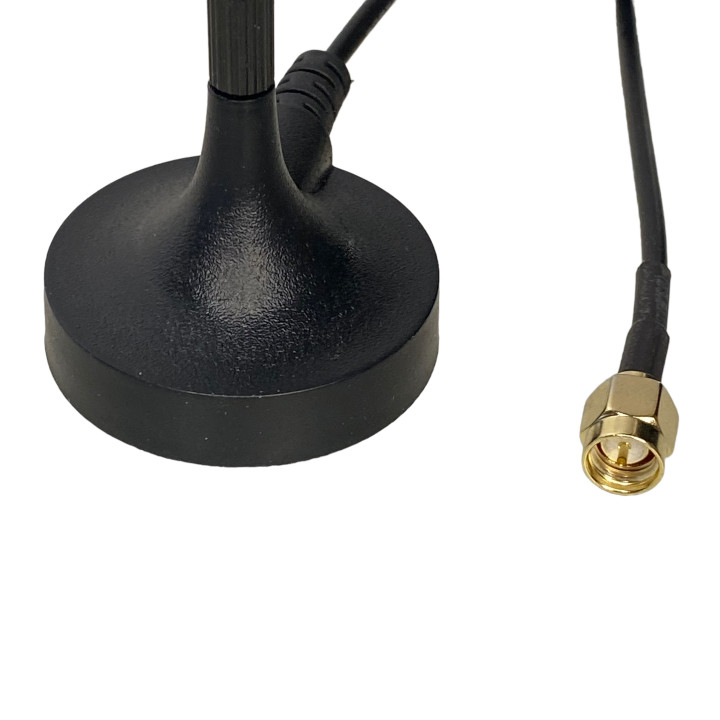

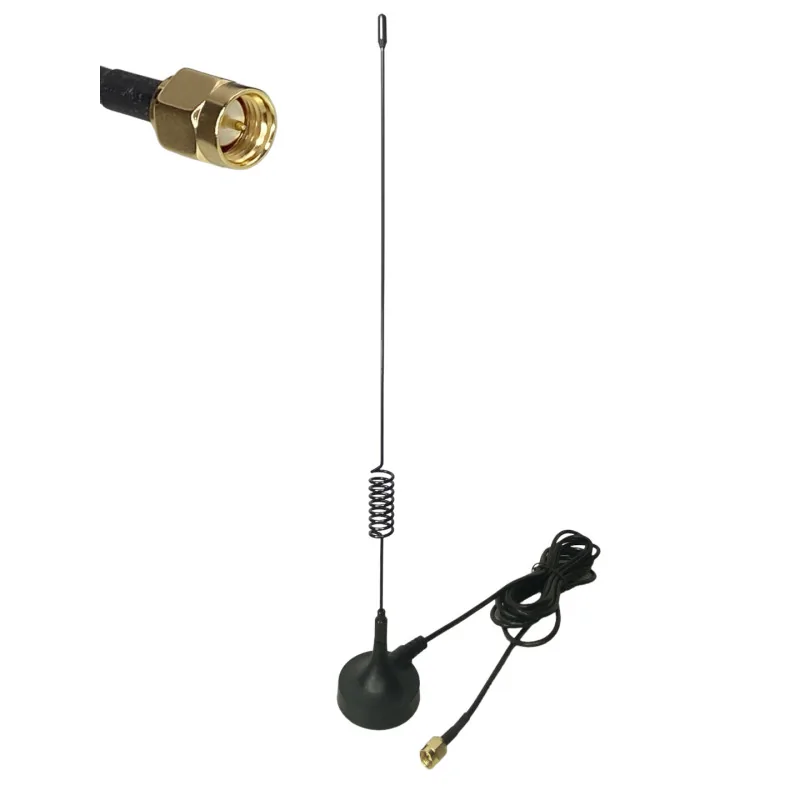

SATEL Antenna - GSM / LTE for Centarla v1

ANTENNA GSM 5 dBi 3G, 4G. LTE, GSM /

8 face="Arial"> color="#004080"> 24-960 MHz , 1710-2170 MHz SMA plug with attitude magnetic

The dual-band GSM 900/1800 MHz antenna is designed for support for communication modules of SATEL control panels

GSM-4,

color="#222222">GPRS-T1, GPRS-T2, GPRS-T4, GPRS-T6

GSM-X**, GSM-X LTE **

GSM LT-1, GSM LT2,

GPRS-A, GPRS-A LTE

INT-GSM **, INT-GSM 4G **,

and with PERFECTA 16 **, PERFECTA 16-WRL **, PERFECTA 32 ** alarm control panels, PERFECTA 32-WRL **, PERFECTA 32 LTE **, PERFECTA 32-WRL LTE **, VERSA Plus **, INTEGRA 128-WRL **

** ATTENTION:

By models additionally marked with the symbol ** you may need an adapter antenna connections to the control panel or communication module

NO PAY BUY IN A SET

Leading the antenna outside the housing devices, rooms. Distance from thick obstacles improves access and stability of the connection with the operator GSM.

BASIC PARAMETERS

• Frequency:   824...960 MHz, 1710...2170MHz
• Antenna gain: 5 dBi
• Antenna plug: SMA plug
• Transmission: 3G, 4G, LTE, GSM
• Antenna mount: base magnetic
• Antenna cable length: 3m
• Assembly: base magnetic

ADDITIONAL TECHNICAL DATA
