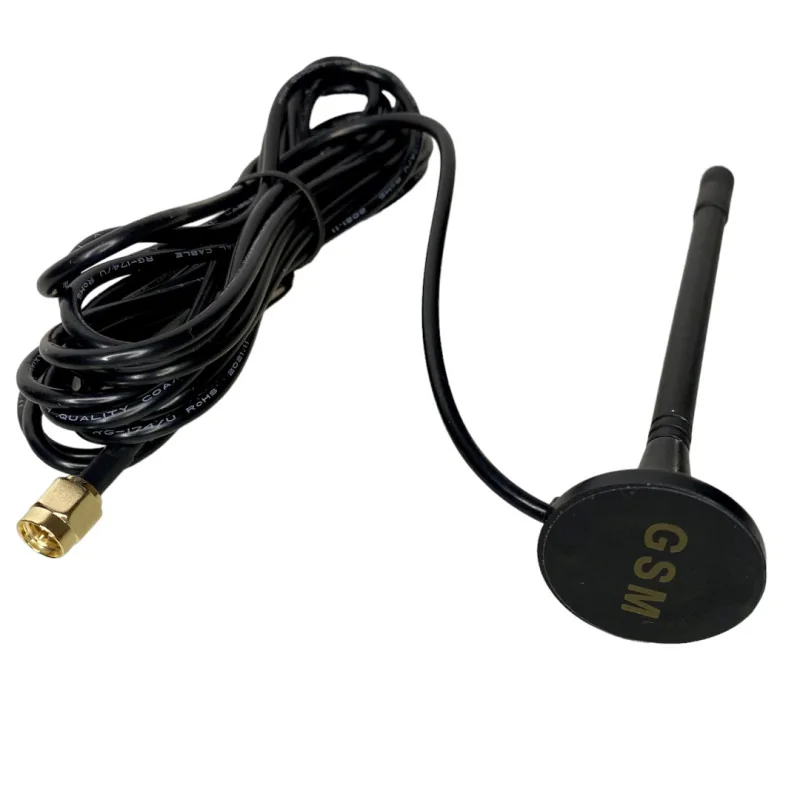

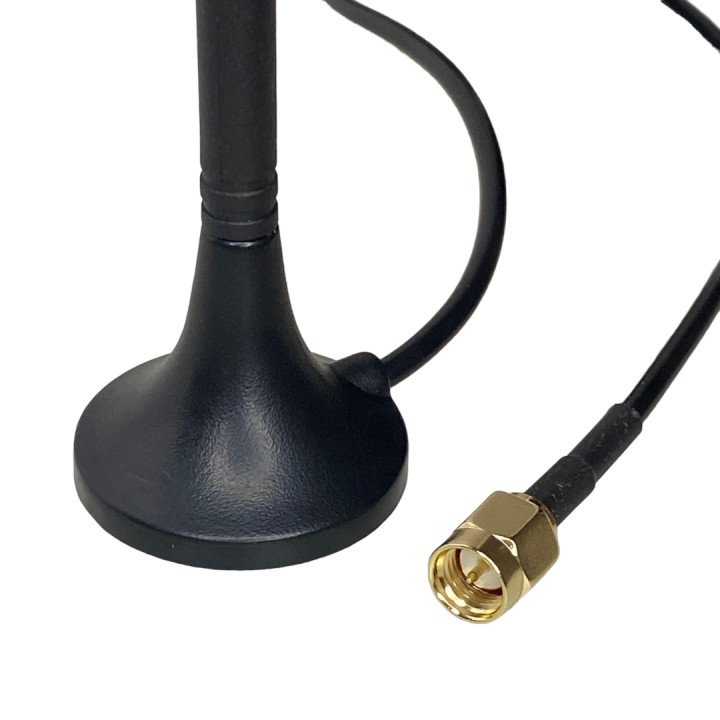

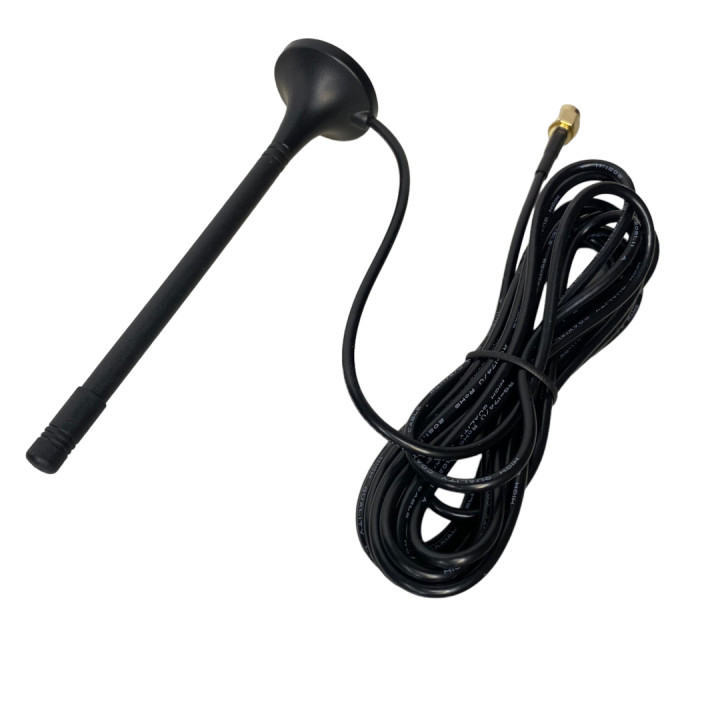

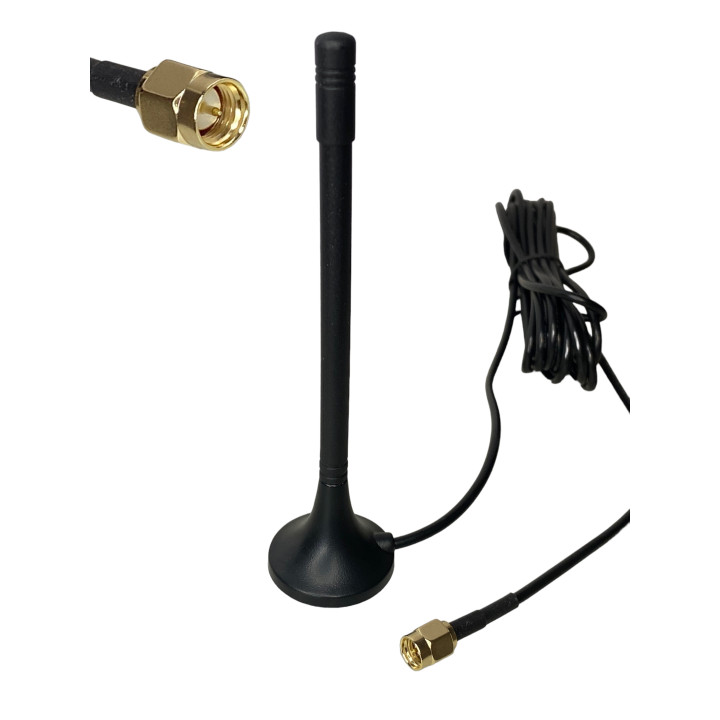

SATEL Antenna - GSM / LTE for Centarla v3

Name: SATEL Antenna - GSM / LTE for Centarla v3
Brand: RF CONNECTORS
SKU: ANT SATEL16
Price: 33.54 PLN
Availability: InStock

Brutto: zł33.54

(zł33.54 szt.)

Netto: 27.27 PLN

Czas wysyłki 1-2 dni robocze

Volume discounts

Quantity	Unit price	You Save
10	zł33.54	zł20.13
25	zł33.54	zł92.24
50	zł33.54	zł268.35
100	zł33.54	zł670.86
200	zł33.54	zł1,610.07

Product in permanent offer.
In the event of a temporary shortage or demand for more, the delivery time is 5-10 working days.

In stock 160 Items

Quantity

Delivery of goods

Returns of goods

Description
Product Details

ANTENNA GSM 2.5dBi 3G, 4G. LTE, GSM /

824-960MHz, 1710-2170MHz SMA plug with stand magnetic

face="Arial">

The dual-band GSM 900/1800 MHz antenna is designed for support for communication modules of SATEL control panels

GSM-4,

color="#222222">GPRS-T1, GPRS-T2, GPRS-T4, GPRS-T6

GSM-X**, GSM-X LTE **

GSM LT-1, GSM LT2,

GPRS-A, GPRS-A LTE

INT-GSM **, INT-GSM LTE**,

and with PERFECTA 16 **, PERFECTA 16-WRL **, PERFECTA 32 ** alarm control panels, PERFECTA 32-WRL **, PERFECTA 32 LTE **, PERFECTA 32-WRL LTE **, VERSA Plus **, INTEGRA 128-WRL **

** ATTENTION:

By models additionally marked with the symbol ** you may need an adapter antenna connections to the control panel or communication module

NO PAY BUY IN A SET

Leading the antenna outside the housing devices, rooms. Distance from thick obstacles improves access and stability of the connection with the operator GSM.

BASIC PARAMETERS

face="Arial">Frequency: 824...960MHz, 1710...2170MHz
Antenna gain: 2.5 dBi
Antenna plug: SMA plug
Transmission: 3G, 4G, LTE, GSM
Antenna mount: base magnetic
Antenna cable length: 3m face="Times New Roman">
Assembly: base magnetic

ADDITIONAL TECHNICAL DATA

face="Arial">Impedance: 50Ω Polarization: linear Operating temperature: -40...85°C Cable type antenna: RG174 Cable length: 3m Antenna height: 120 mm Antenna base diameter: 29 mm

Brand RF CONNECTORS

Reference ANT SATEL16

In stock 160 Items

Data sheet
