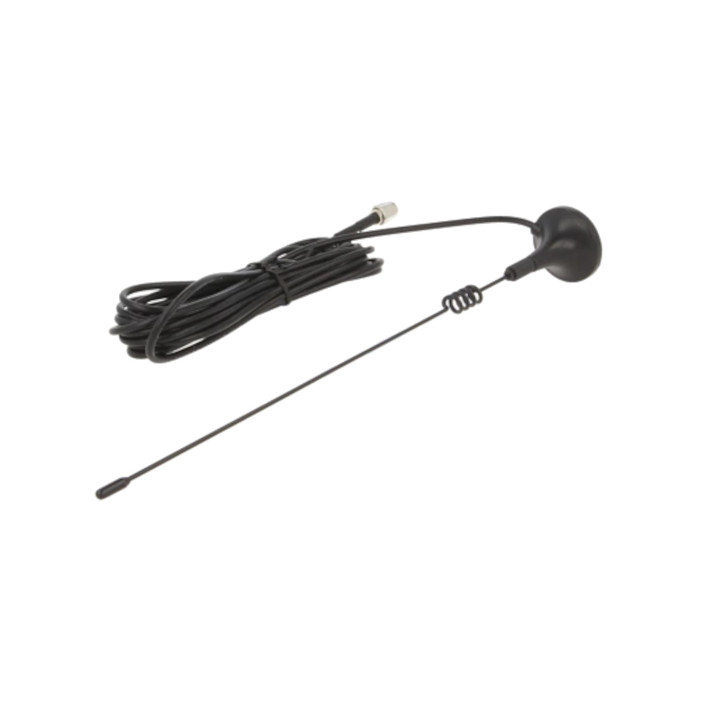

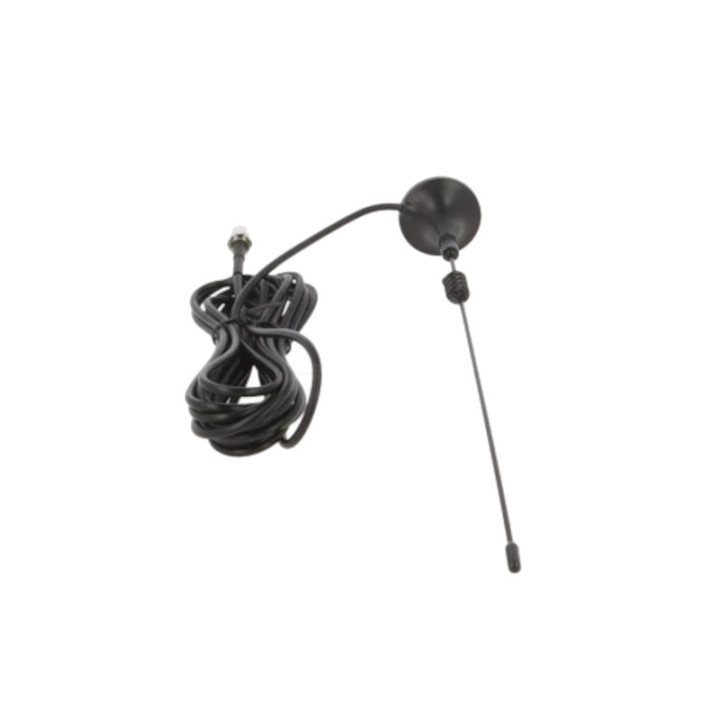

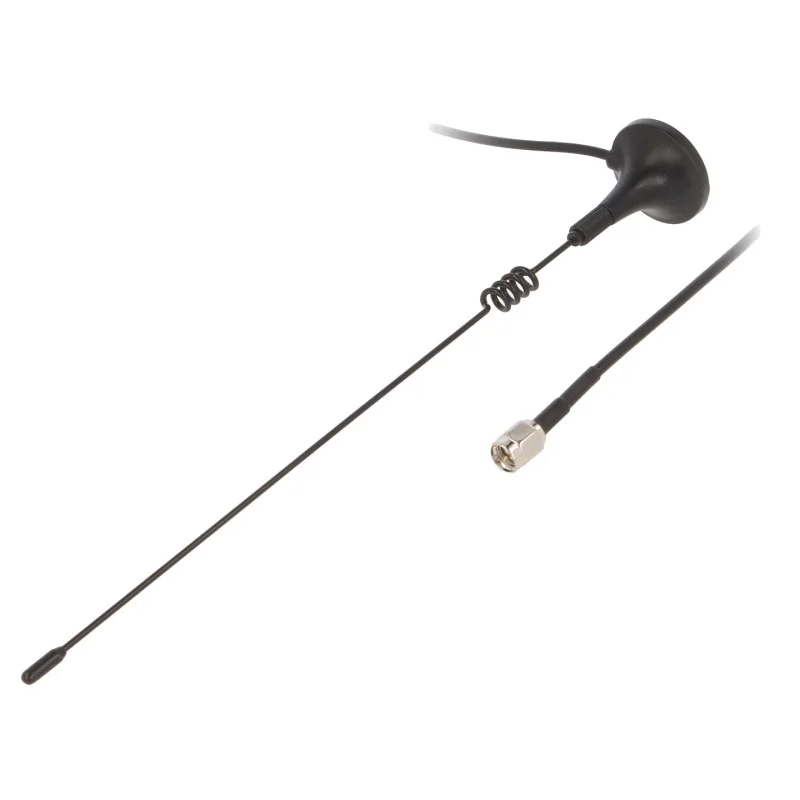

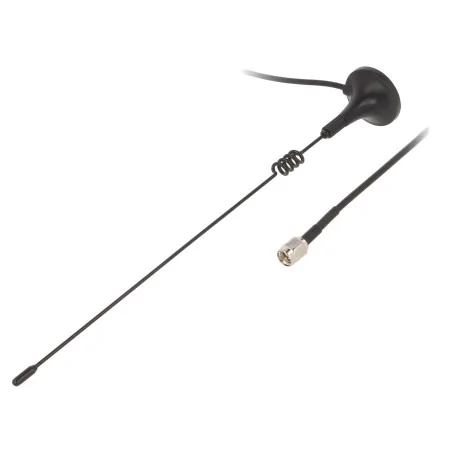

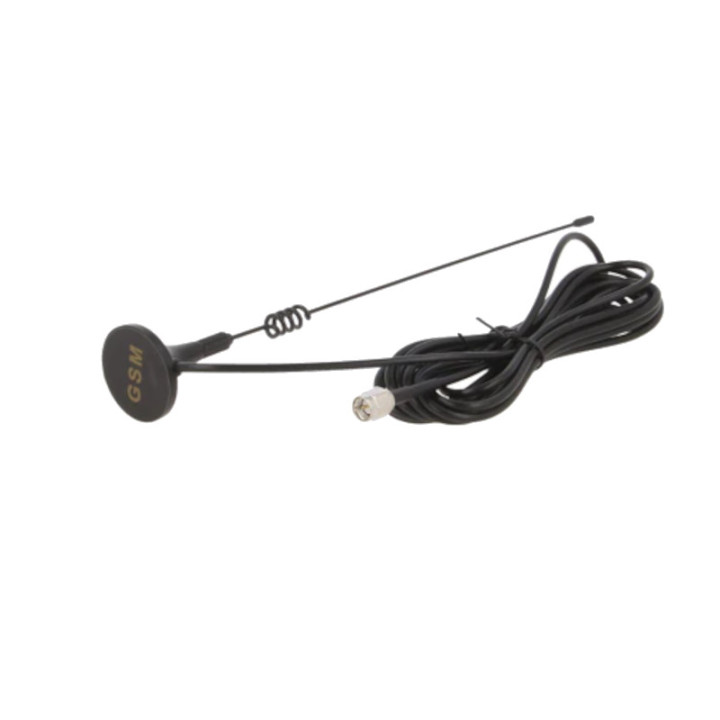

GSM ANTENNA 2dBi
824-960MHz, 1710-2655MHz SMA PLUG
with a magnetic attitude
Dual-band GSM antenna with wide range of applications:
- telephony, payment terminals,
- vending machines,
- commercial and industrial modems for use in
supervision, security, telemetry and
others.
Leading the antenna outside the housing
devices or rooms significantly improves access and stability
connections to a GSM operator.
SPECIFICATION
- Frequency:
824...960MHz,
1710...2655MHz
- Transmission: 3G, 4G, LTE
- Antenna energy gain: 2dBi
- Impedance: 50Ω
- Polarization: linear
- Operating temperature:
-40...85°C
- Connector type: SMA
plug
- Cable type:
RG174
- Cable length:
3m

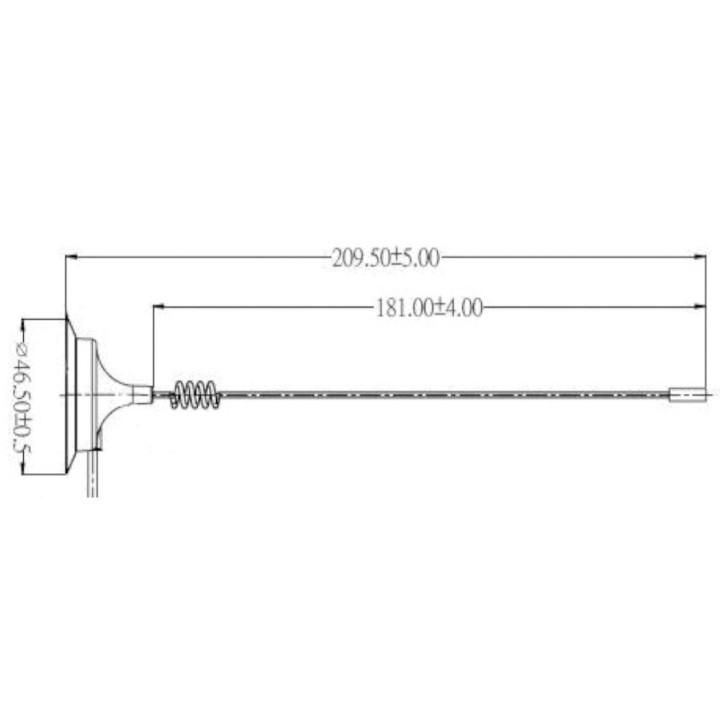

- Antenna height 210mm
- Antenna base diameter 46.5mm
face="Arial">
ADDITIONAL ANTENNA OPTIONS - PAID OPTIONS - look for them on the auction
as ANTENNA SUPPLEMENT:
It is possible to change the connector according to the customer's order:
- BNC-plug: electronic modules, microphones, microports and
other
- CRC9- plug: GSM modems and routers
- F- plug: GSM repeaters
- FAKRA - socket: radio communication devices (
mainly automotive)
- FAKRA - plug
- FME- plug: GSM repeaters
- MC CARD - plug: modules
electronic, microphones, microports and others
- MCX - plug: electronic modules, microphones,
microports and others
- MMCX - plug: electronic modules,
microphones, microports and more
- N- socket: GSM repeaters and
other
- N-plug: repeaters, GSM plug connector
- SMA-RP - plug: electronic modules,
microphones, microports and more
- SMB- socket: electronic modules, microphones, microports
and others
- SMB- plug: electronic modules, microphones, microports and
other
- TNC-plug: electronic modules, microphones, microports,
GSM repeaters and others
- TS9- plug: GSM modems and routers
- TWIX -2 in 1 CRC9/TS9 plug: GSM modems and routers
In case of purchase of a modified antenna, it is not refundable, so if
If you are not sure about the purchase, please buy an antenna and the appropriate adapter.
The antenna cable will be up to 5 cm shorter than the declared length in the description
antennas.
The delivery time for a modified antenna may be extended by one day.
If you haven't found the connector you would like to mount on your antenna
please submit an inquiry.
INSTALLATION NOTES:
- Antenna output to
outside the device housing or room significantly
improves the range and stability of data transmission.
- In the case of a mounted antenna
adhesive tape should be avoided when mounting it on surfaces
metal, because it leads to a decrease in its profit and changes
directional characteristics.
