GSM ANTENNA 2dBi
1710-2655MHz, 824-960MHz SMA-WT FOR HOUSING MOUNTING
IP67
Dual-band GSM antenna with wide range of applications:
- telephony, payment terminals,
- vending machines,
- commercial and industrial modems for use in
surveillance, security, telemetry and more.
Leading the antenna outside the device housing,
whether the room significantly improves access and stability of the connection with
GSM operator.
Antenna designed for mounting
to the housing, chassis, body through a mounting hole fi=12mm.
Once installed, it blends in discreetly with the space.
assembly
SPECIFICATION
- Frequency: 1710...2655MHz,
824...960MHz
- Transmission: 3G, 4G, LTE
- Antenna energy gain: 2dBi
- Impedance: 50Ω
- Polarization: linear
- Operating temperature: -40...85°C

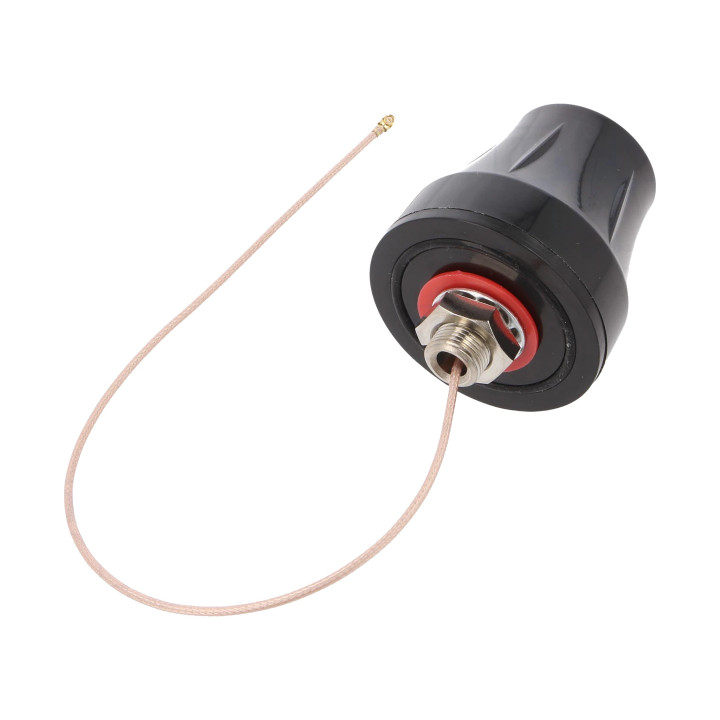

- Mounting: screw (fixing nut)
- Mounting hole diameter: 12
mm
- Connector Type: u.FL IPX IPEX
plug
- Cable type:
RG178
- Length
250mm cable

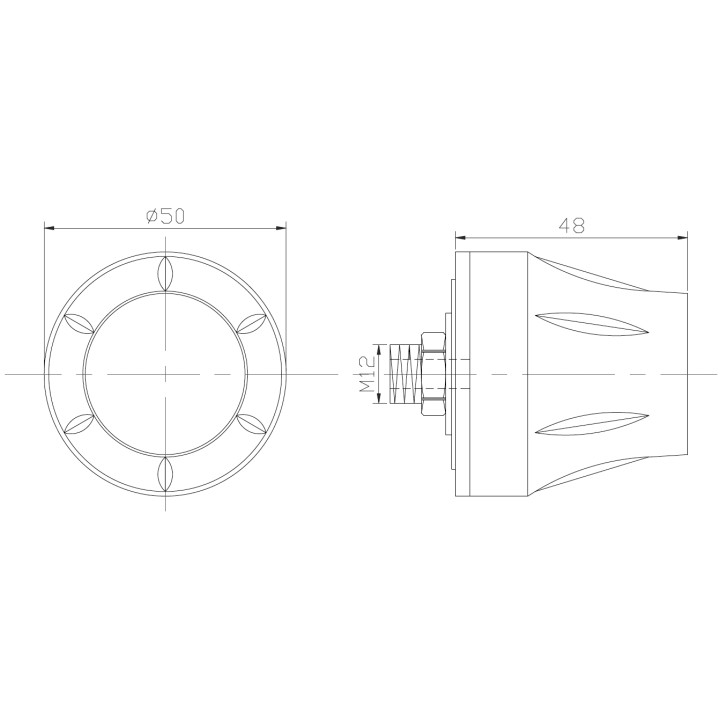

- Antenna height 48mm
- Antenna diameter 45mm
- Degree of protection: IP67 (otherwise
resistance to environmental conditions)
