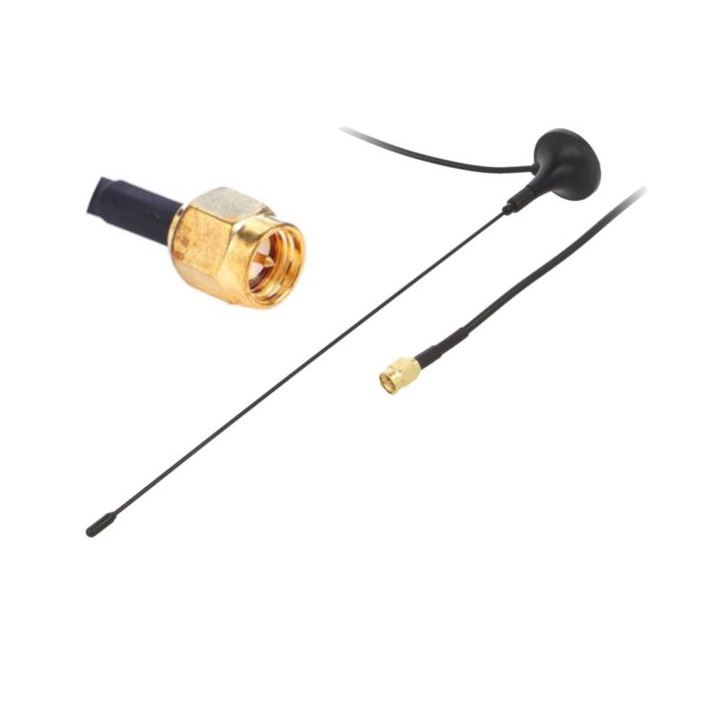

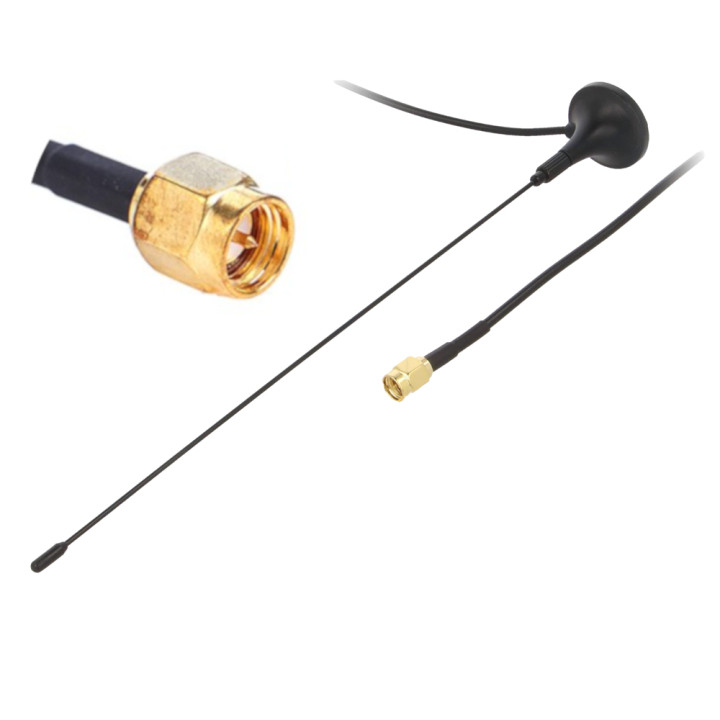

GSM 3G LTE Antenna 2.8dBi Vertical MAGNET SMA B Plug

868Mhz Antenna 2.8dBi magnetic SMA plug

Application:

• a smart home,
• garage door control systems,
• alarm sensors,
• temperature controllers,
• radio lines,
• Telemetry

Leading the antenna outside the device housing, whether the room significantly improves the range and stability of transmission data.

face="Arial"> SPECIFICATION:

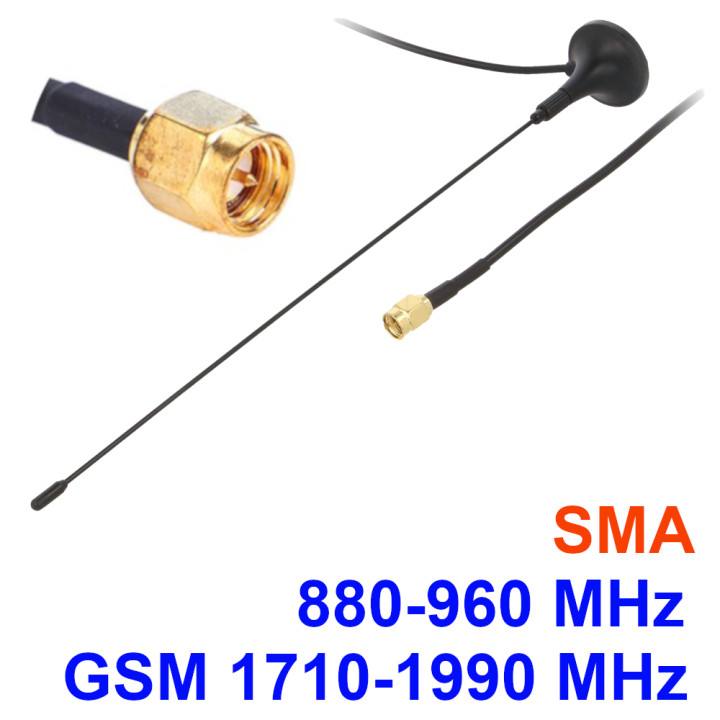

• Frequency: 880...960MHz, 1710...1990MHz
• Antenna gain: 2.8dBi
• Impedance: 50Ω
• Polarization: linear
• Operating temperature: -40...85°C
• Installation: on magnet
• Connector Type: SMA Male
• Cable type: RG174
• Cable length: 3m

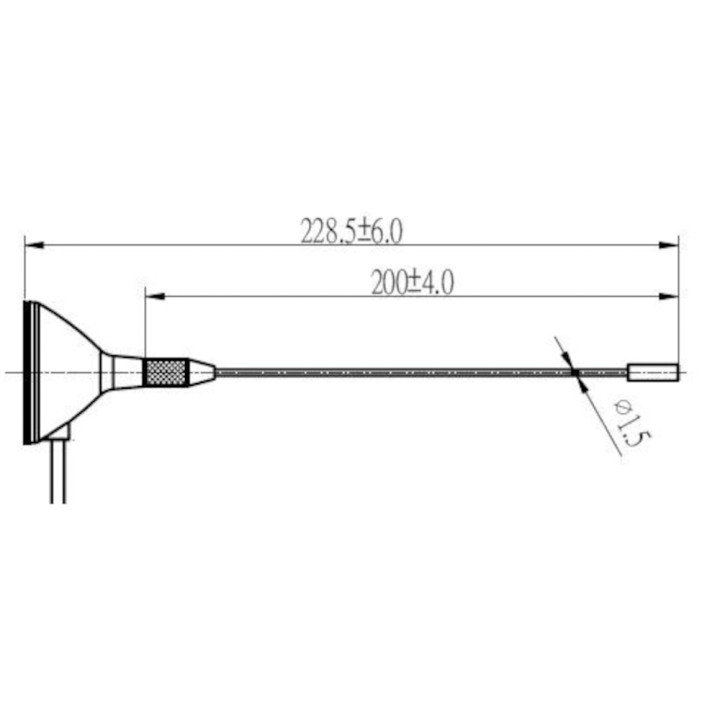

• Height antennas: 228.5mm
• Base diameter: 29 mm

ADDITIONAL ANTENNA OPTIONS - PAID OPTIONS - look for them on the auction as ANTENNA SUPPLEMENT:

It is possible to change the connector according to the customer's order:

• BNC-plug: electronic modules, microphones, microports and other
• CRC9- plug: GSM modems and routers
• F- plug: GSM repeaters
• FAKRA - socket: radio communication devices ( mainly automotive)
• FAKRA - plug
• FME- plug: GSM repeaters
• MC CARD - plug: modules electronic, microphones, microports and others
• MCX - plug: electronic modules, microphones, microports and others
• MMCX - plug: electronic modules, microphones, microports and more
• N- socket: GSM repeaters and other
• N-plug: repeaters, GSM plug connector
• SMA-RP - plug: electronic modules, microphones, microports and more
• SMB- socket: electronic modules, microphones, microports and others
• SMB- plug: electronic modules, microphones, microports and other
• TNC-plug: electronic modules, microphones, microports, GSM repeaters and others
• TS9- plug: GSM modems and routers
• TWIX -2 in 1 CRC9/TS9 plug: GSM modems and routers

In case of purchase of a modified antenna, it is not refundable, so if If you are not sure about the purchase, please buy an antenna and the appropriate adapter.

The antenna cable will be up to 5 cm shorter than the declared length in the description antennas.

The delivery time for a modified antenna may be extended by one day.

If you haven't found the connector you would like to mount on your antenna please submit an inquiry.

INSTALLATION NOTES:

• Antenna output to outside the device housing or room significantly improves the range and stability of data transmission.
• In the case of a mounted antenna adhesive tape should be avoided when mounting it on surfaces metal, because it leads to a decrease in its profit and changes directional characteristics.
