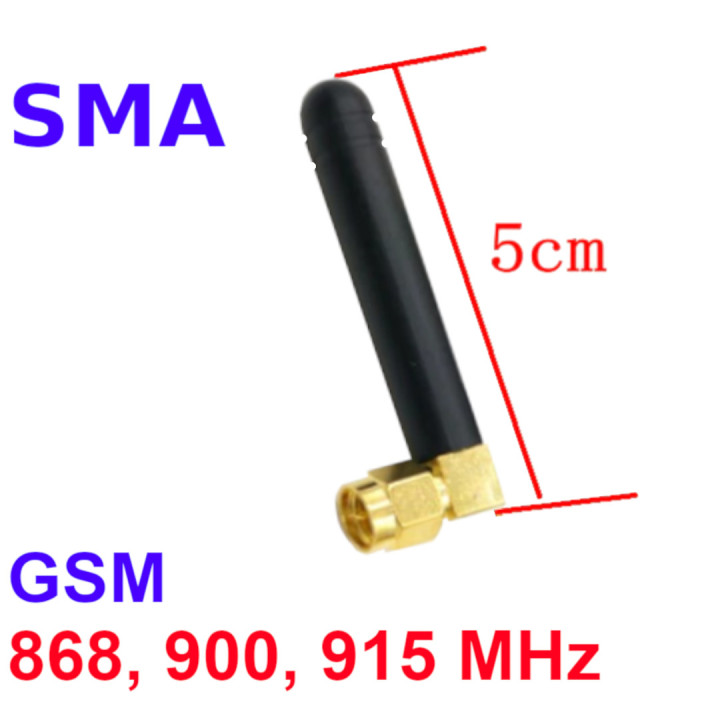

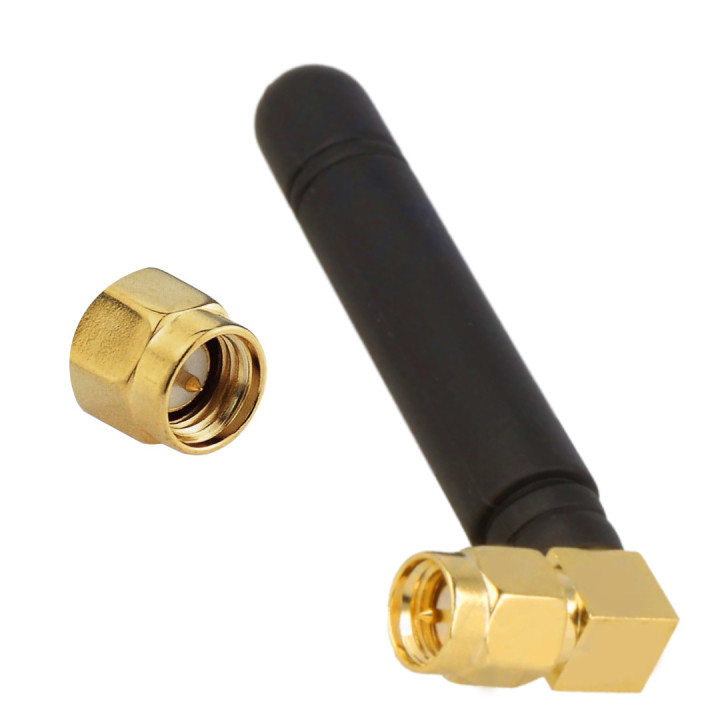

GSM Antenna 868Mhz /900Mhz
/915MH 2.2 dBi SMA plug ANGLED face="Arial">
Application:
- a smart home,
- garage door control systems,
- alarm sensors,
- temperature controllers,
- radio lines,
- Telemetry
Leading the antenna outside the device housing,
whether the room significantly improves the range and stability of transmission
data.
SPECIFICATION
- Frequency: 868Mhz /900Mhz
/915MHz
- Antenna energy gain:
2.2dBi
- Impedance: 50Ω
- Polarization: linear
- Operating temperature: -40...85°C
- Installation: to
connectors
- Connector Type: SMA
male
- Antenna height: 50 mm
- Antenna diameter: 10
mm
- face="Arial"> Antenna shape: angled
