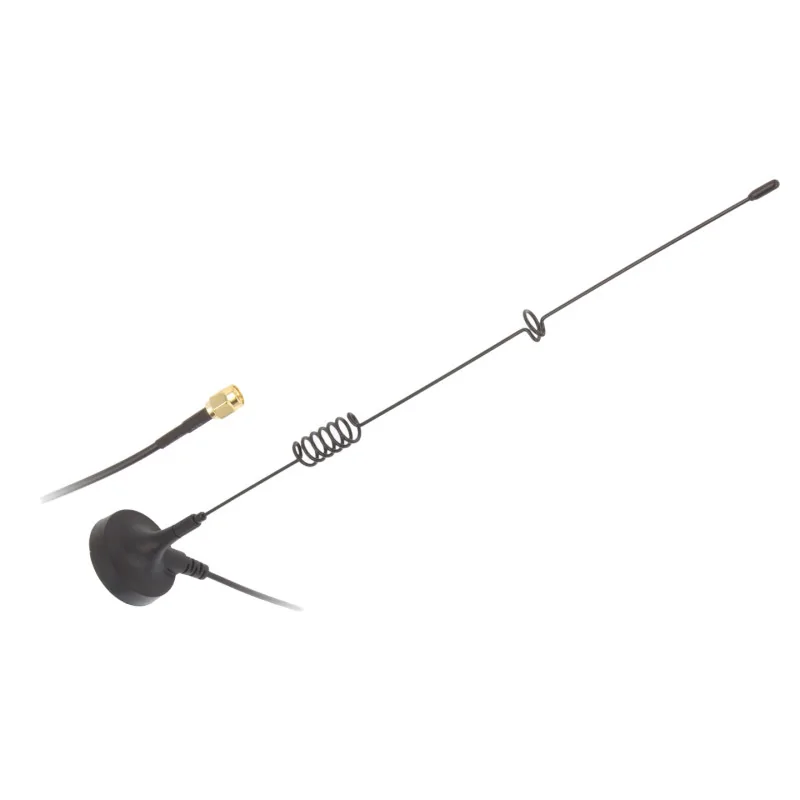

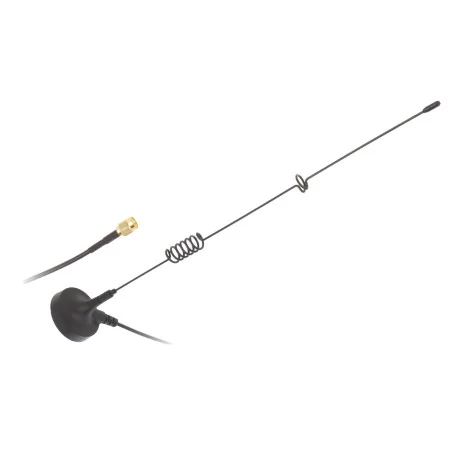

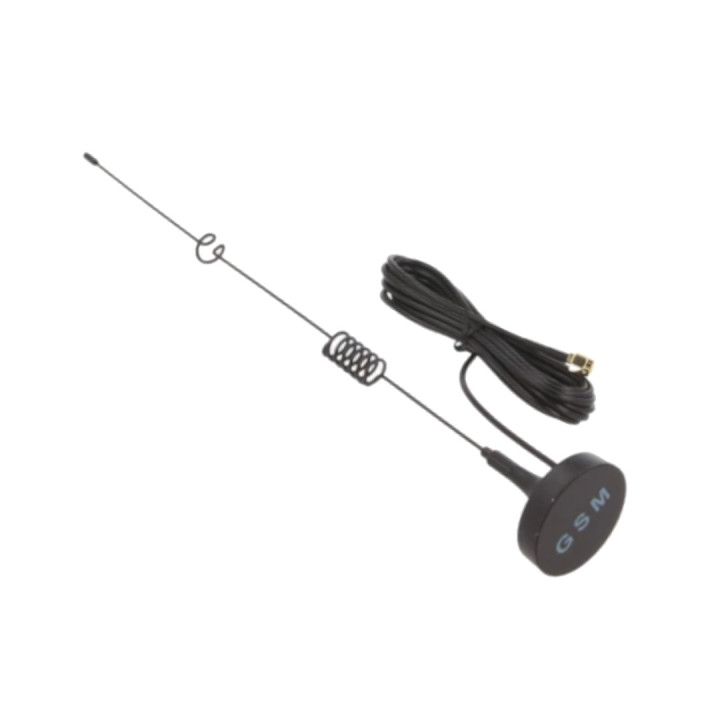

GSM 3G LTE 5dBi vertical antenna MAGNET SMA plug X24

ANTENNA GSM 5Bi 824-960MHz, 1710-2700MHz SMA PLUG with base magnetic

Dual-band GSM antenna with wide application:

• telephony, payment terminals,
• vending machines,
• commercial and industrial modems for use in supervision, security, telemetry and others.

Leading the antenna outside the housing devices or rooms significantly improves access and stability connections to a GSM operator.

SPECIFICATION:

• face="Arial">Frequency:   824...960MHz, 1710...2700MHz
• Transmission: 3G, 4G, LTE
• Antenna energy gain: 5dBi
• Connector: SMA plug
• Impedance: 50Ω
• Polarization: linear
• Operating temperature: -40...85°C
• Assembly: base magnetic
• Type wire: RG174
• Cable length: 3m

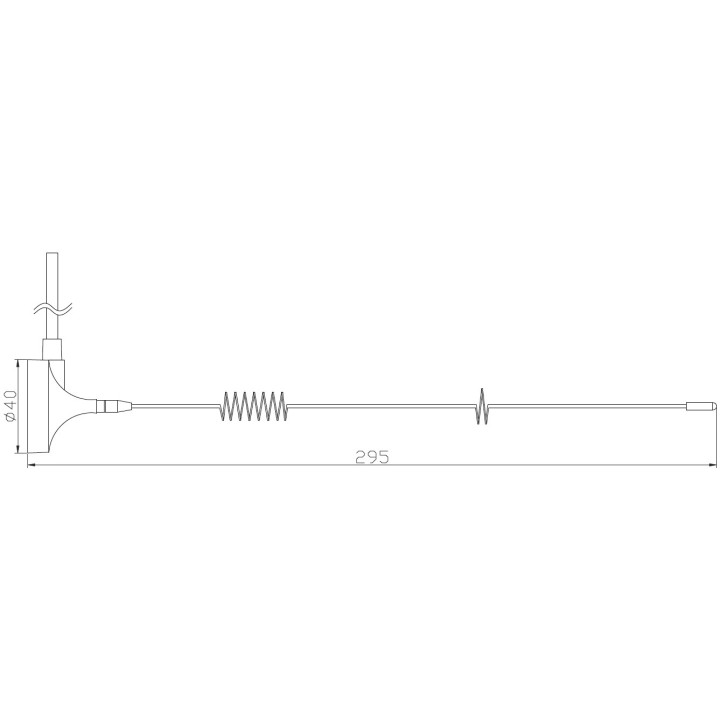

• Antenna height: 295 mm
• Antenna base diameter: 40mm

ADDITIONAL ANTENNA OPTIONS - PAID OPTIONS - look for them on the auction as ANTENNA SUPPLEMENT:

It is possible to change the connector according to the customer's order:

• BNC-plug: electronic modules, microphones, microports and other
• CRC9- plug: GSM modems and routers
• F- plug: GSM repeaters
• FAKRA - socket: radio communication devices ( mainly automotive)
• FAKRA - plug
• FME- plug: GSM repeaters
• MC CARD - plug: modules electronic, microphones, microports and others
• MCX - plug: electronic modules, microphones, microports and others
• MMCX - plug: electronic modules, microphones, microports and more
• N- socket: GSM repeaters and other
• N-plug: repeaters, GSM plug connector
• SMA-RP - plug: electronic modules, microphones, microports and more
• SMB- socket: electronic modules, microphones, microports and others
• SMB- plug: electronic modules, microphones, microports and other
• TNC-plug: electronic modules, microphones, microports, GSM repeaters and others
• TS9- plug: GSM modems and routers
• TWIX -2 in 1 CRC9/TS9 plug: GSM modems and routers

If you purchase a modified antenna, it is non-refundable, therefore If you are not sure about the purchase, please buy the antenna and the appropriate adapter.

The antenna cable will be up to 5 cm shorter than the declared length in the description antennas.

The delivery time for a modified antenna may be extended by one day.

If you haven't found the connector you would like to mount on your antenna please submit an inquiry.

INSTALLATION NOTES:

• Antenna output to outside the device housing or room significantly improves the range and stability of data transmission.
• In the case of a mounted antenna adhesive tape should be avoided when mounting it on surfaces metal, because it leads to a decrease in its profit and changes directional characteristics.
