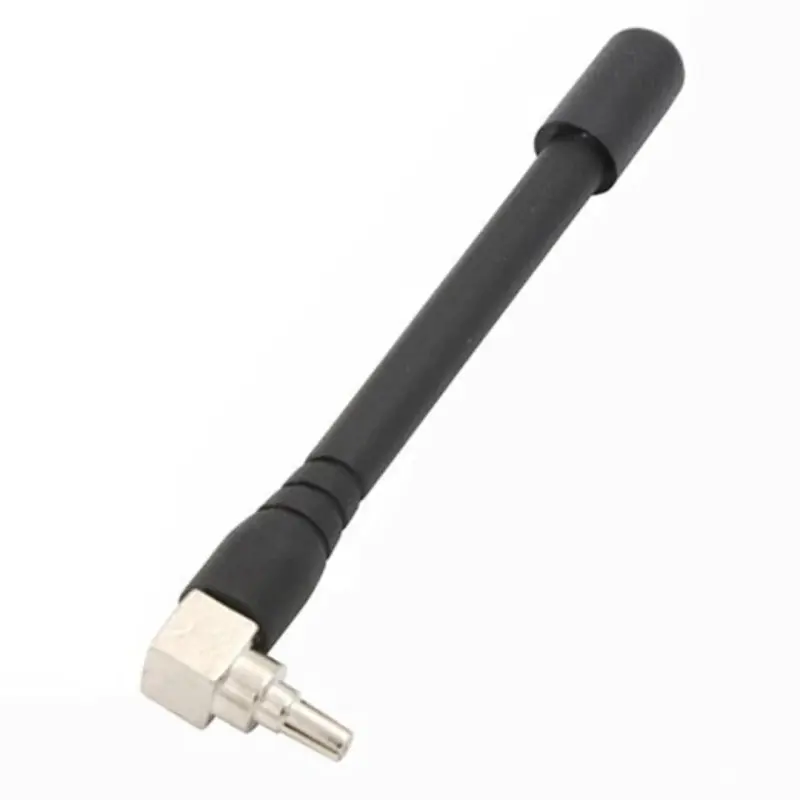

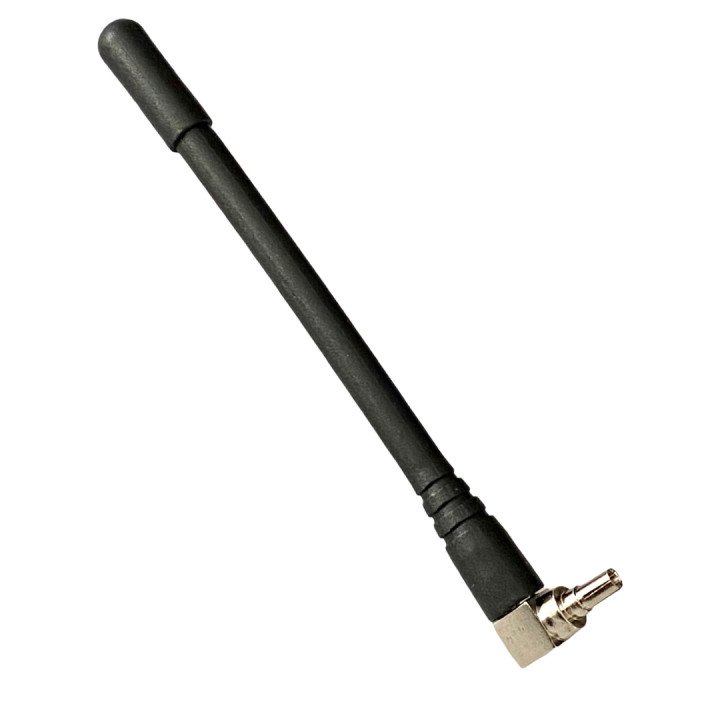

GSM1900-2100MHz Antenna 3
dBi plug CRC9 face="Arial">
Application:
- GSM internet,
- a smart home,
- garage door control systems,
- alarm sensors,
- temperature controllers,
- radio lines,
- Telemetry
Leading the antenna outside the device housing,
whether the room significantly improves the range and stability of transmission
data.
SPECIFICATION
- face="Arial"> Frequency: 1900-2100MHz
- Antenna energy gain:
3dBi
- Impedance: 50Ω
- VSWR coefficient : ≤
1.5
- face="Arial"> Polarization: vertical
- Operating temperature: -40...85°C
- Installation: to

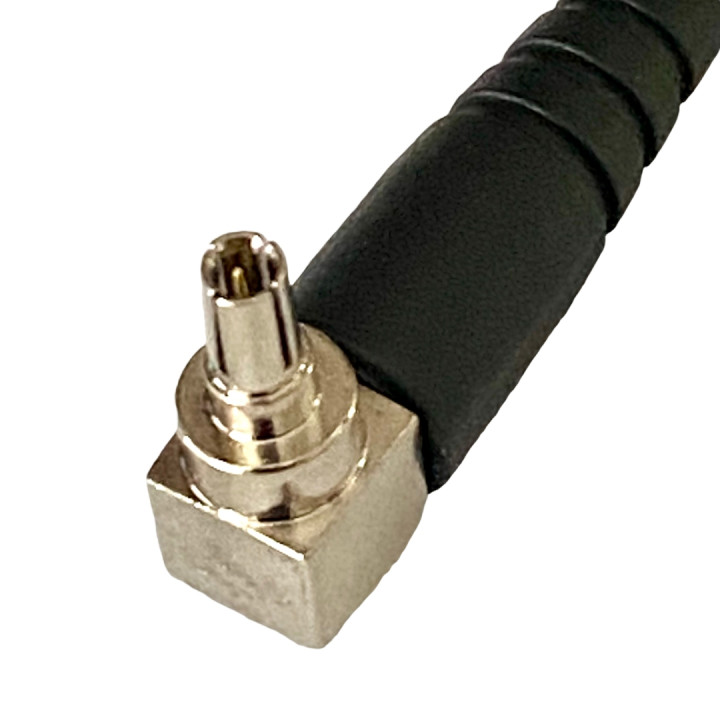

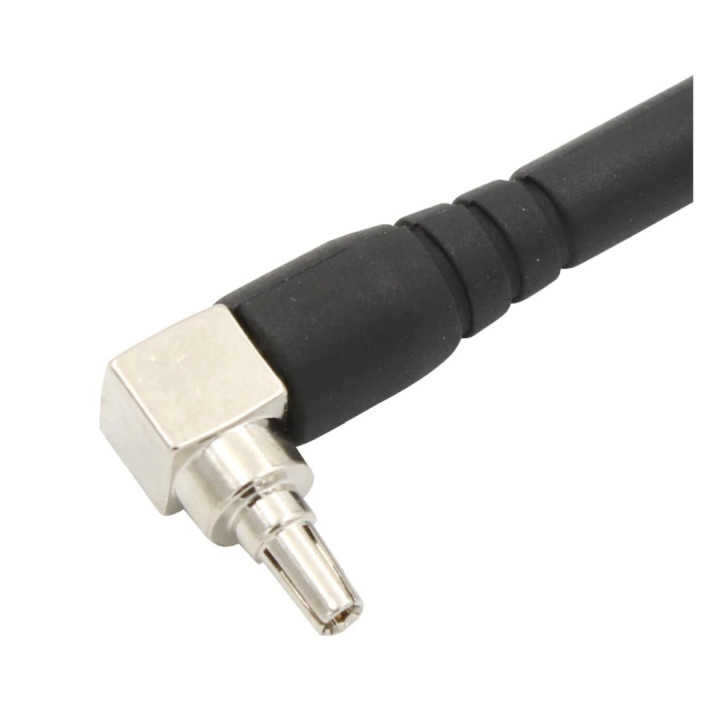

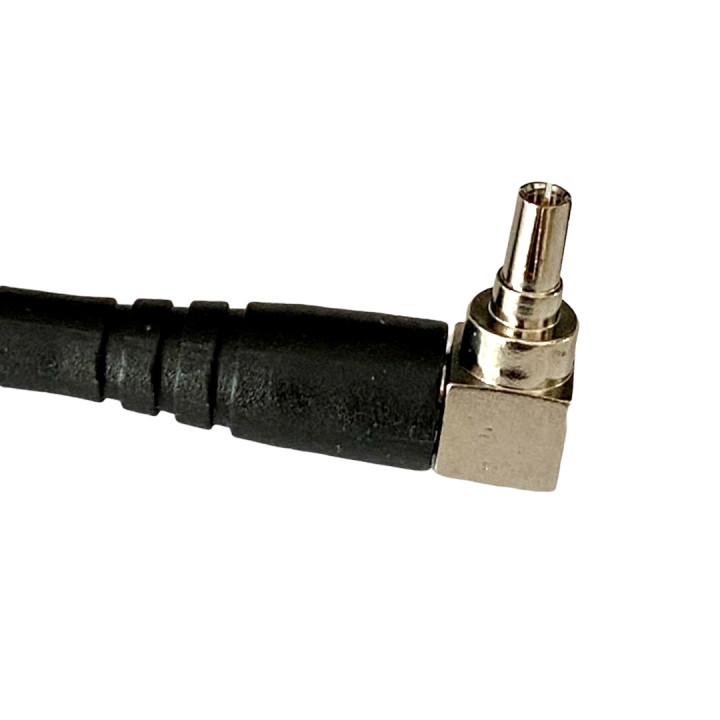

CRC9 connectors
- Connector Type: CRC9
male
- Antenna height: 95 mm
