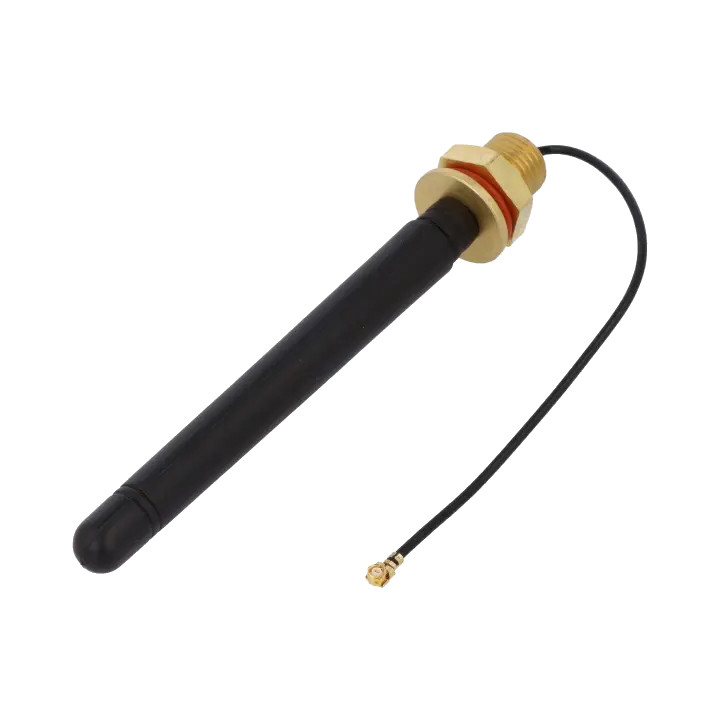

3G LTE 2dBi Antenna MOUNTING
SCREW plug U-FL
face="Arial">
Dual-band GSM antenna with wide range of applications:
- telephony, payment terminals,
- vending machines,
- commercial and industrial modems for use in
surveillance, security, telemetry and more.
Leading the antenna outside the housing
devices or rooms significantly improves access and stability
connections to a GSM operator.
Antenna designed for mounting to the housing,
chassis, bodywork through mounting hole fi=12mm.
Once installed, it blends in discreetly with
assembly place
Application:
- GSM communication,
- smart home control,
- garage door control systems,
- alarm sensors,
- temperature controllers,
- radio lines,
- Telemetry
SPECIFICATION
Frequency:
880...960MHz,1710...2170MHz
Antenna energy gain:
2dBi
Impedance:
50Ω
Polarization:
linear
Operating temperature:
-40...85°C
Mounting:
screw (fixing nut)
Connector type:
u.FL IPX,IPEX
Cable type:
RG178
Cable length:
100 mm
Antenna height:
96.2mm
Antenna diameter:
8.8mm
Mounting hole diameter:
10mm
Degree of protection:
IP67 (otherwise resistance to weather conditions)
environmental)
ADDITIONAL ANTENNA OPTIONS - PAID OPTIONS - look for them on the auction
as ANTENNA SUPPLEMENT:
It is possible to change the connector according to the customer's order:
- BNC-plug: electronic modules, microphones, microports and
other
- CRC9- plug: GSM modems and routers
- F- plug: GSM repeaters
- FAKRA - socket: radio communication devices (
mainly automotive)
- FAKRA - plug
- FME- plug: GSM repeaters
- MC CARD - plug: modules
electronic, microphones, microports and others
- MCX - plug: electronic modules, microphones,
microports and others
- MMCX - plug: electronic modules,
microphones, microports and more
- N- socket: GSM repeaters and
other
- N-plug: repeaters, GSM plug connector
- SMA-RP - plug: electronic modules,
microphones, microports and more
- SMB- socket: electronic modules, microphones, microports
and others
- SMB- plug: electronic modules, microphones, microports and
other
- TNC-plug: electronic modules, microphones, microports,
GSM repeaters and others
- TS9- plug: GSM modems and routers
- TWIX -2 in 1 CRC9/TS9 plug: GSM modems and routers
In case of purchase of a modified antenna, it is not refundable, so if
If you are not sure about the purchase, please buy an antenna and the appropriate adapter.
The antenna cable will be up to 5 cm shorter than the declared length in the description
antennas.
The delivery time for a modified antenna may be extended by one day.
If you haven't found the connector you would like to mount on your antenna
please submit an inquiry.
INSTALLATION NOTES:
- Antenna output to
outside the device housing or room significantly
improves the range and stability of data transmission.
- In the case of a mounted antenna
adhesive tape should be avoided when mounting it on surfaces
metal, because it leads to a decrease in its profit and changes
directional characteristics.
