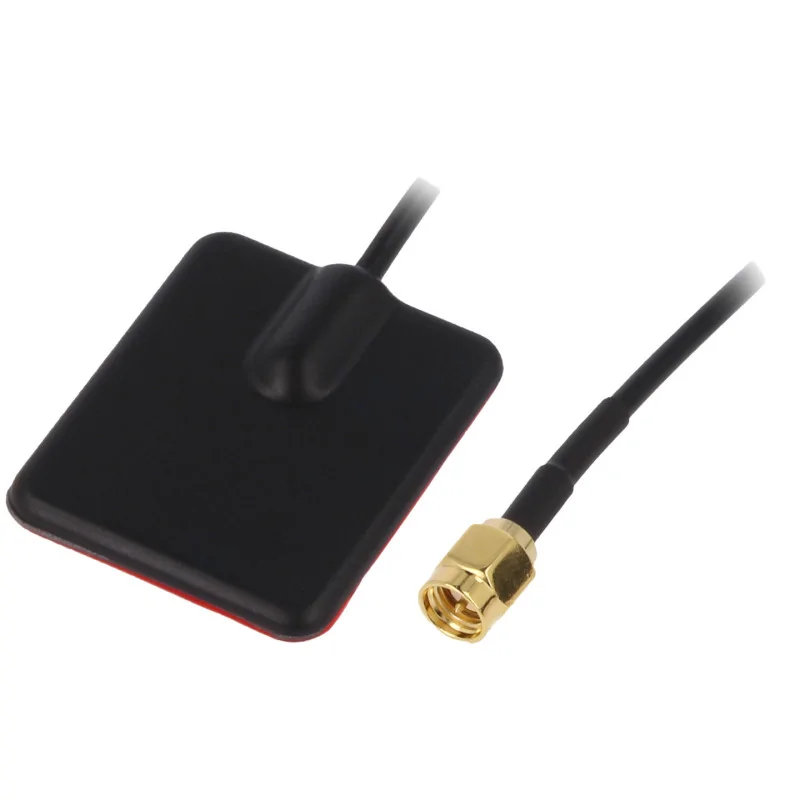

GSM 3G LTE 2dBi flat glued antenna SMA X17 plug

GSM ANTENNA 2dBi 1710-2655MHz, 824-960MHz SMA-WT TAPE MOUNTING
FOR GLASS OR FLAT SURFACE

Broadband GSM antenna with a wide range of applications:

• telephony, payment terminals,
• vending machines,
• commercial and industrial modems for use in surveillance, security, telemetry and more.

Leading the antenna outside the device housing, whether the room significantly improves access and stability of the connection with GSM operator.

The antenna is designed for mounting on a flat surface. using mounting tape.

SPECIFICATION

• Frequency 1710...2655MHz, 824...960MHz
• Transmission 3G, 4G, LT3G, 4G, LTE
• Antenna energy gain 2dBi
• Impedance 50Ω
• Linear polarization
• Operating temperature -40...85°C
• Mounting: on tape
• Connector type SMA plug
• Cable type RG58
• Cable length 3m

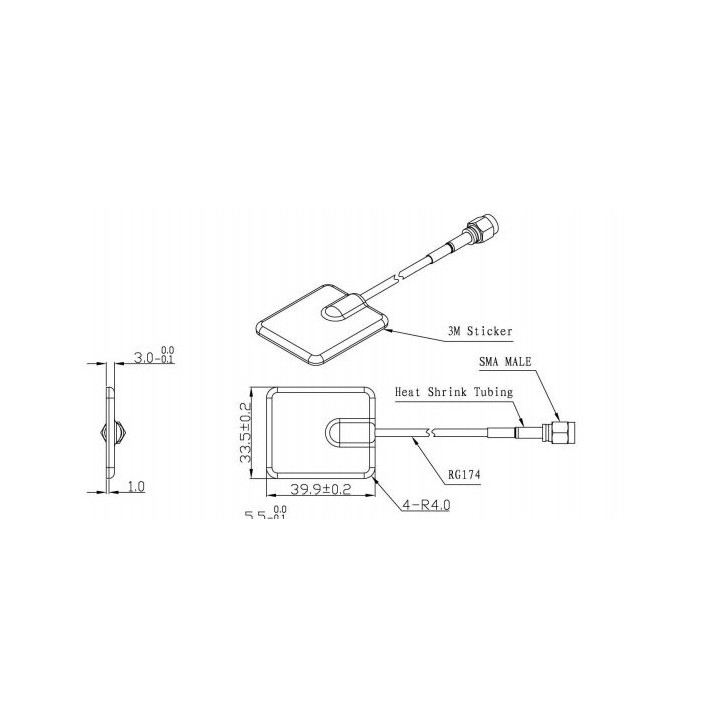

• Antenna dimensions: 39.9 x 33.5 x 5.5mm

ADDITIONAL ANTENNA OPTIONS - PAID OPTIONS - look for them on the auction as ANTENNA SUPPLEMENT:

It is possible to change the connector according to the customer's order:

• BNC-plug: electronic modules, microphones, microports and other
• CRC9- plug: GSM modems and routers
• F- plug: GSM repeaters
• FAKRA - socket: radio communication devices ( mainly automotive)
• FAKRA - plug
• FME- plug: GSM repeaters
• MC CARD - plug: modules electronic, microphones, microports and others
• MCX - plug: electronic modules, microphones, microports and others
• MMCX - plug: electronic modules, microphones, microports and more
• N- socket: GSM repeaters and other
• N-plug: repeaters, GSM plug connector
• SMA-RP - plug: electronic modules, microphones, microports and more
• SMB- socket: electronic modules, microphones, microports and others
• SMB- plug: electronic modules, microphones, microports and other
• TNC-plug: electronic modules, microphones, microports, GSM repeaters and others
• TS9- plug: GSM modems and routers
• TWIX -2 in 1 CRC9/TS9 plug: GSM modems and routers

If you purchase a modified antenna, it is non-refundable, therefore If you are not sure about the purchase, please buy the antenna and the appropriate adapter.

The antenna cable will be up to 5 cm shorter than the declared length in the description antennas.

The delivery time for a modified antenna may be extended by one day.

If you haven't found the connector you would like to mount on your antenna please submit an inquiry.

INSTALLATION NOTES:

• Antenna output to outside the device housing or room significantly improves the range and stability of data transmission.
• In the case of a mounted antenna adhesive tape should be avoided when mounting it on surfaces metal, because it leads to a decrease in its profit and changes directional characteristics.
