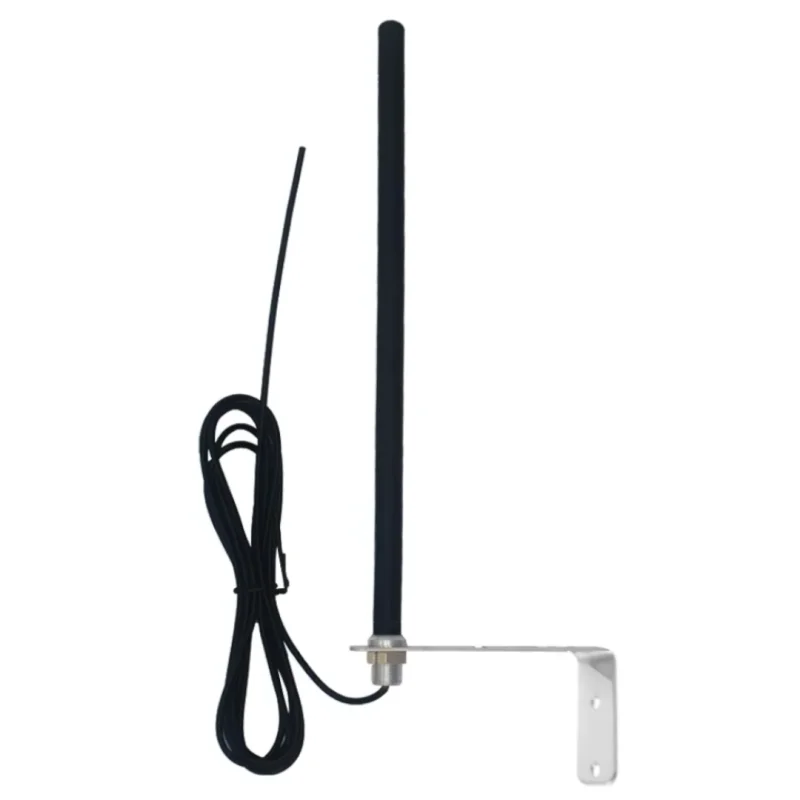

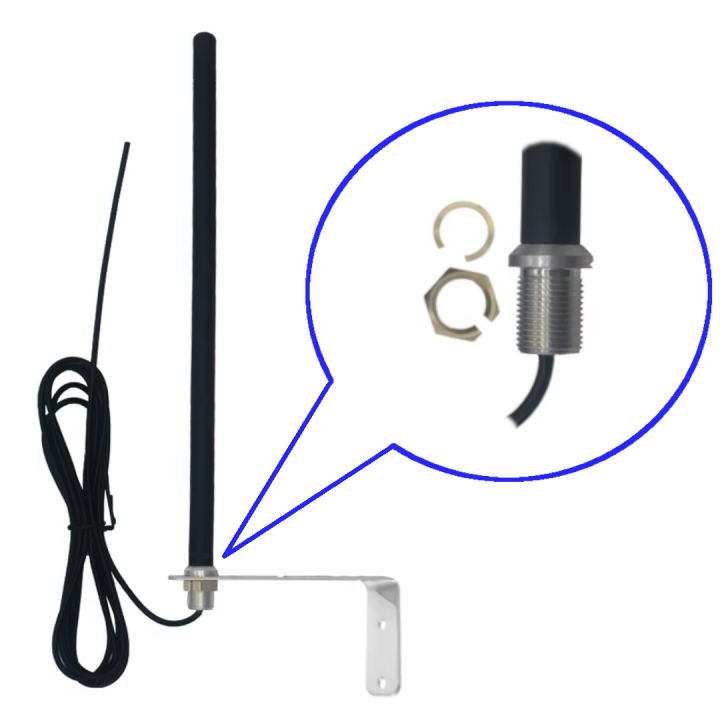

Antenna 433Mhz 5dBi external
Brutto:
zł82.94
Netto: 67.43 PLN
Czas wysyłki 1-2 dni robocze
Antenna 433Mhz 3dBi cable 2 meters, wall mounting (post etc.) !!
Application:
a smart home, garage and entrance gate control systems, alarm sensors, temperature controllers, radio lines, TelemetryLeading the antenna outside the device housing, whether the room significantly improves the range and stability of transmission data.
SPECIFICATION

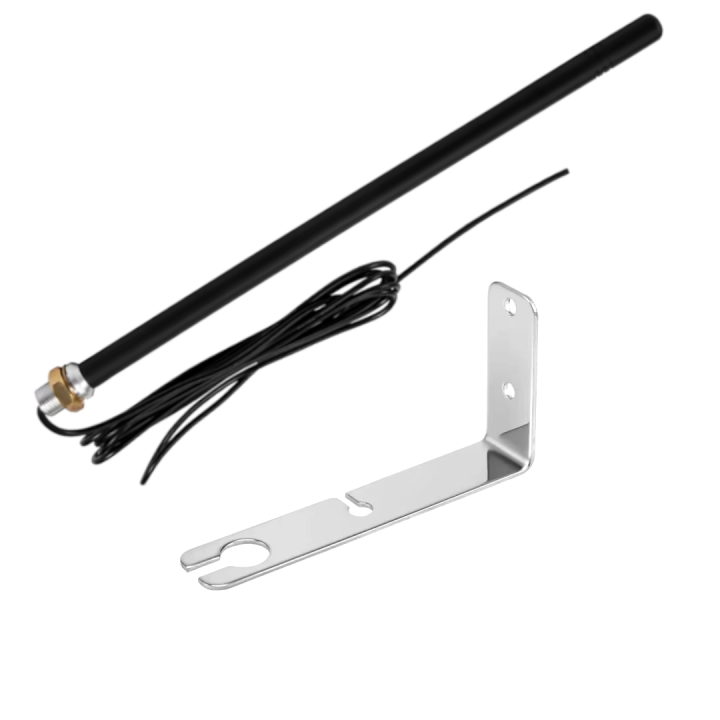

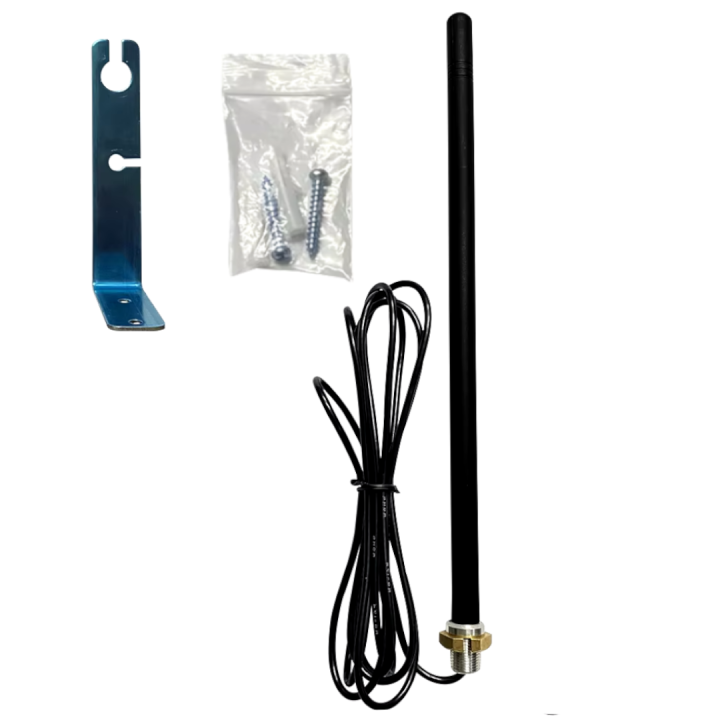

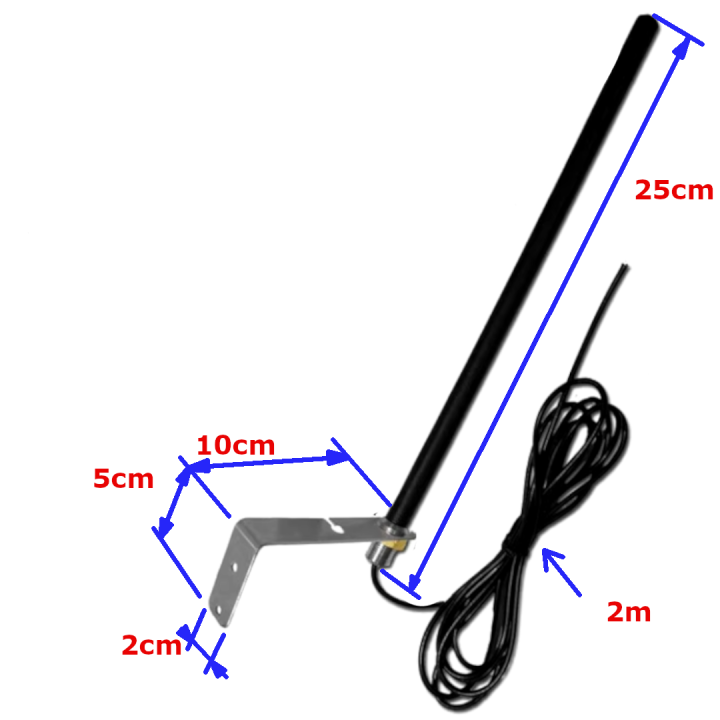

Frequency: 433.92MHz (428.92...438.92Mhz Width Bandwidth: 10MHz Antenna energy gain: 3dBi Impedance: 50Ω Polarization: linear Permissible input power : 20W VSWR <=1.5 (when fitted connector ) Operating temperature: -40...85°C Connector Type: NONE - POSSIBILITY OF INSTALLATION FOR ADDITIONAL COST FEE !!! Total antenna length: 25cm Antenna length to bracket : 30cm Cable length 2m Mounting method: antenna to bracket, wall bracketThe antenna kit includes include:
- antenna,
- bracket
- wall mounting plugs: (cellular block, concrete, solid brick)
ATTENTION:
Optionally FOR AN ADDITIONAL FEE you can order:
- Preparing the end of the cable for mounting under the screw strip driver
- Connector assembly (BNC, FME, MCX, MMCX, N, SMA, RP SMA, TNC, UHF and others)
For this purpose, please submit an inquiry via form
