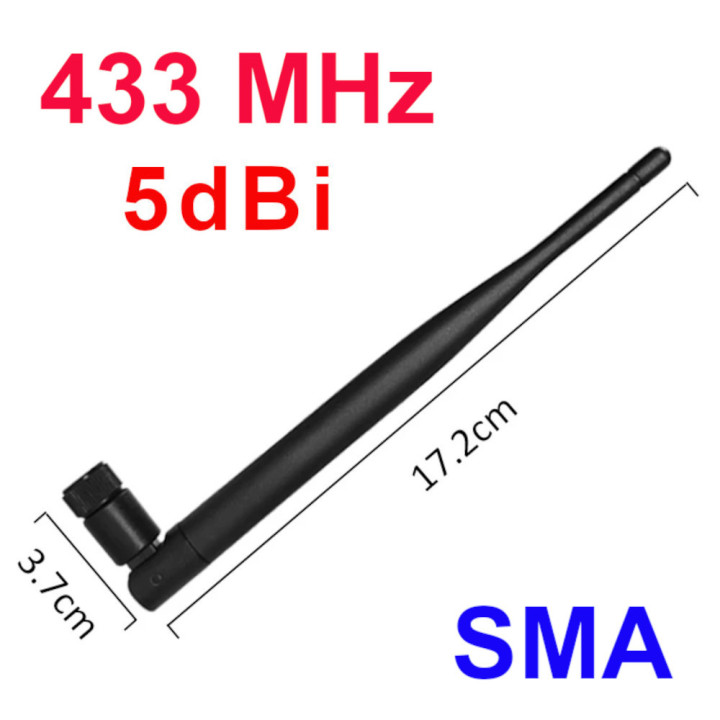

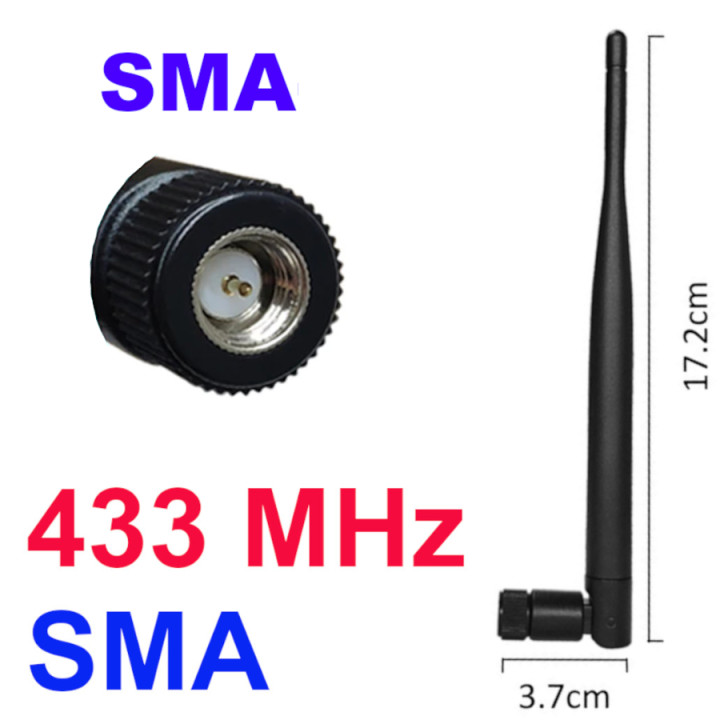

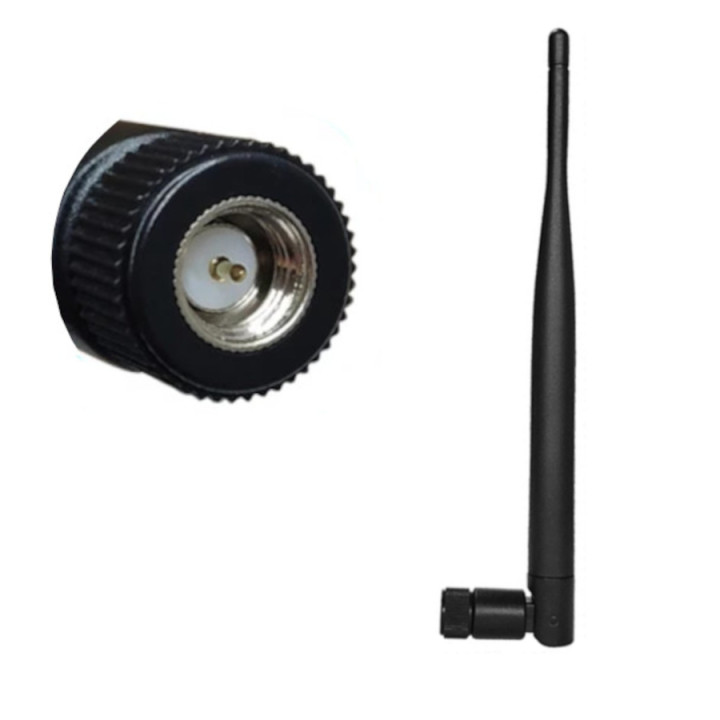

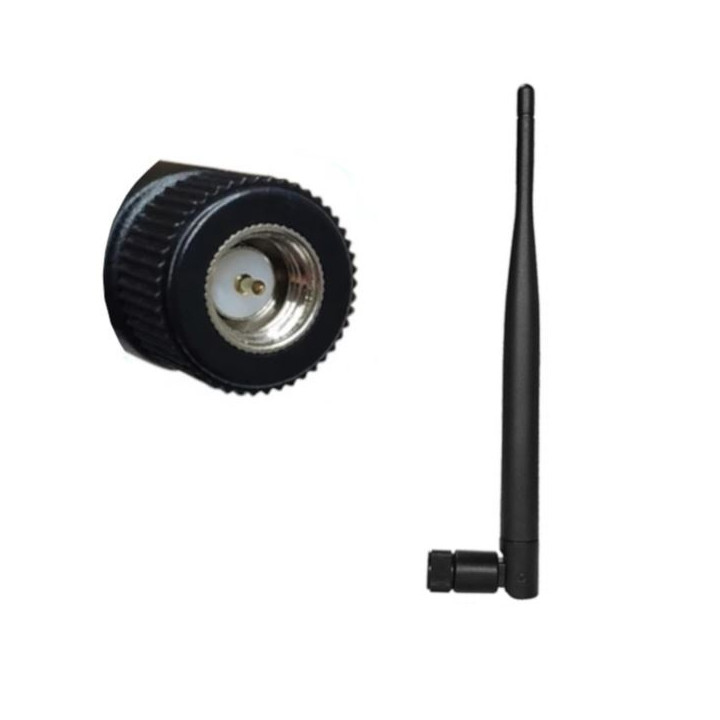

Antenna 433Mhz 5dBi bent with hinge SMA plug V2

Antenna 433 Mhz 5dBi plug SMA male

Application:

• a smart home,
• garage door control systems,
• alarm sensors,
• temperature controllers,
• radio lines,
• Telemetry

Leading the antenna outside the device housing, whether the room significantly improves the range and stability of transmission data.

SPECIFICATION

• Frequency: 433.05...434.79Mhz
• Antenna gain: 5dBi
• Impedance: 50Ω
• Polarization: linear
• Operating temperature: -40...85°C
• Installation: to connectors
• Connector Type: SMA male
• Total antenna length: 204 mm
• Antenna length to hinge: 172 mm
• Diameter antennas: 13.5mm

If you need to connect an antenna to the RF module with connector, U.FL (IPEX) can be found in our pigtail offer connection:

U.FL (IPEX) - SMA FEMALE Adapter 20cm
