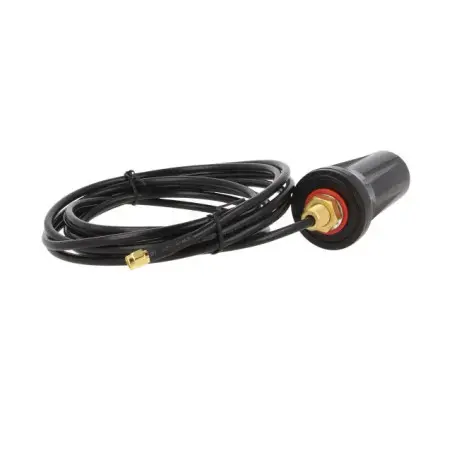

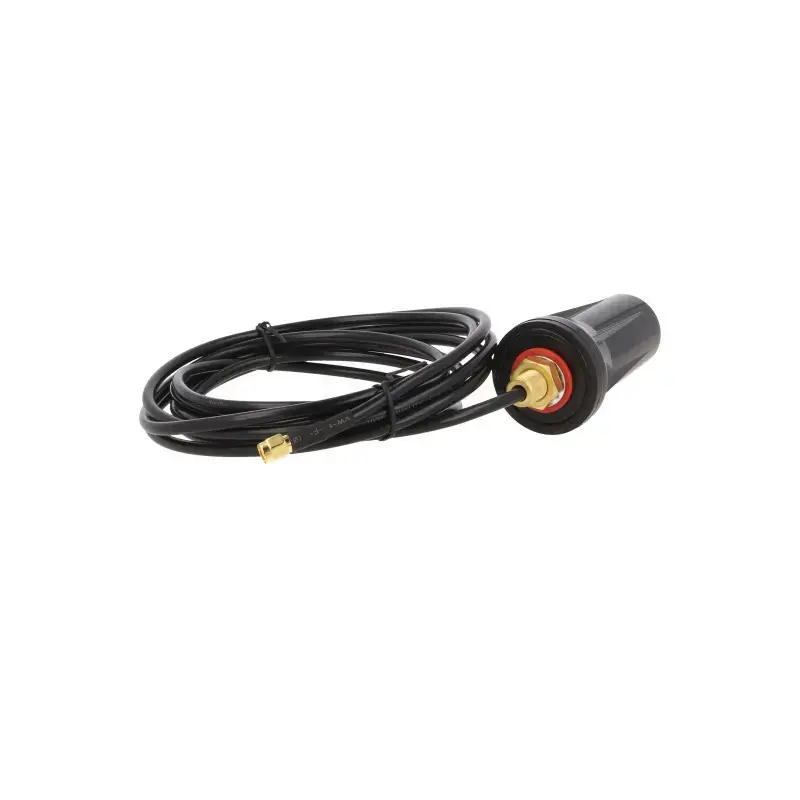

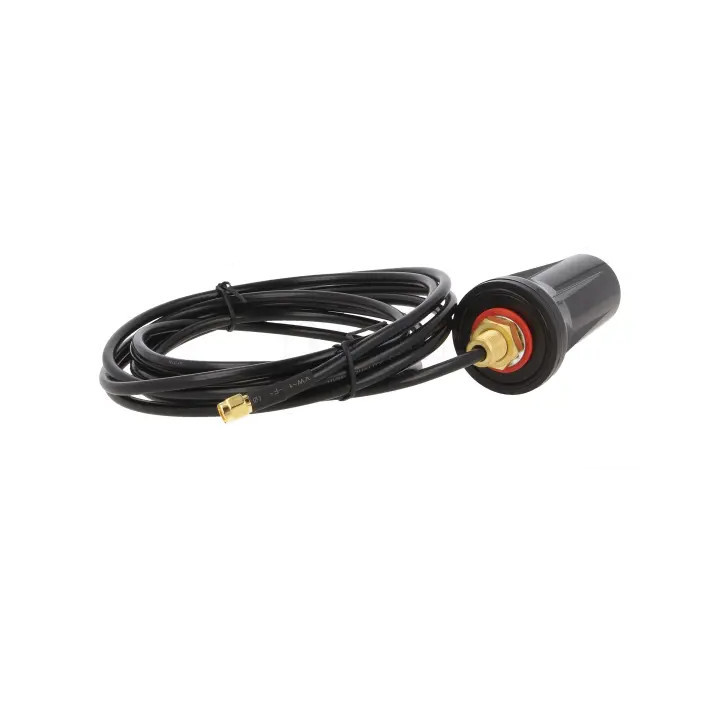

Antenna 433Mhz 3dBi MOUNTING SCREW SMA plug X23

Antenna 433 Mhz 3dBi MOUNTING SCREW SMA plug

Application:

• a smart home,
• garage door control systems,
• alarm sensors,
• temperature controllers,
• radio lines,
• Telemetry

Antenna designed for mounting on a housing, switchboard, or car body.

SPECIFICATION:

• Frequency: 433.05...434.79Mhz
• Antenna energy gain: 3dBi
• Impedance: 50Ω

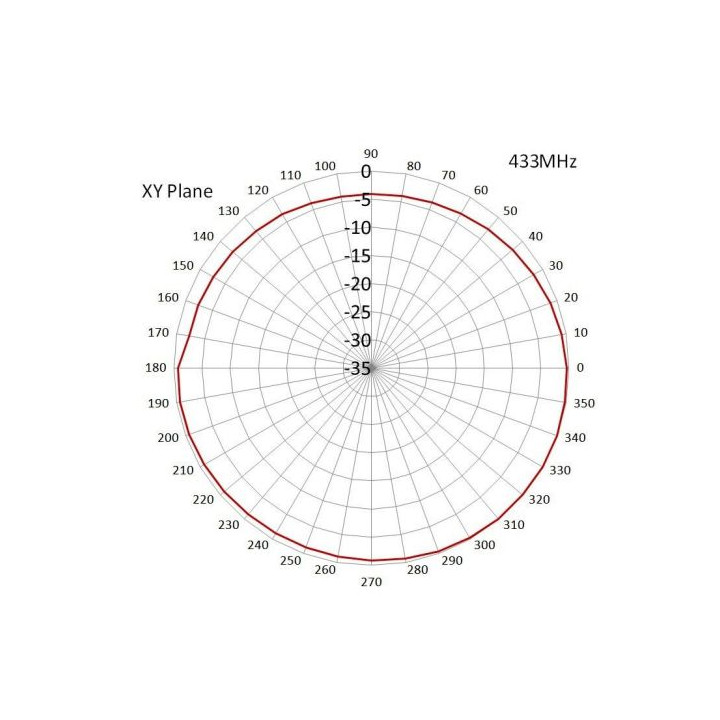

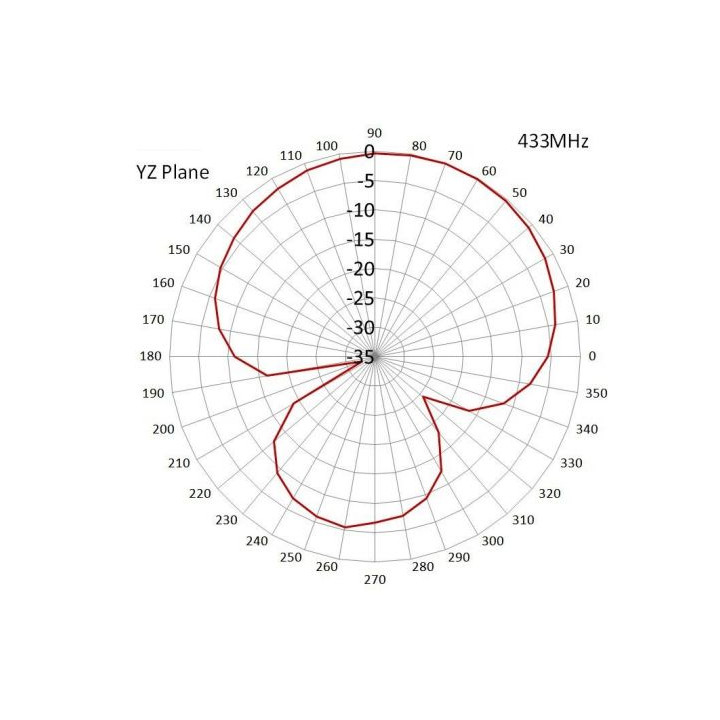

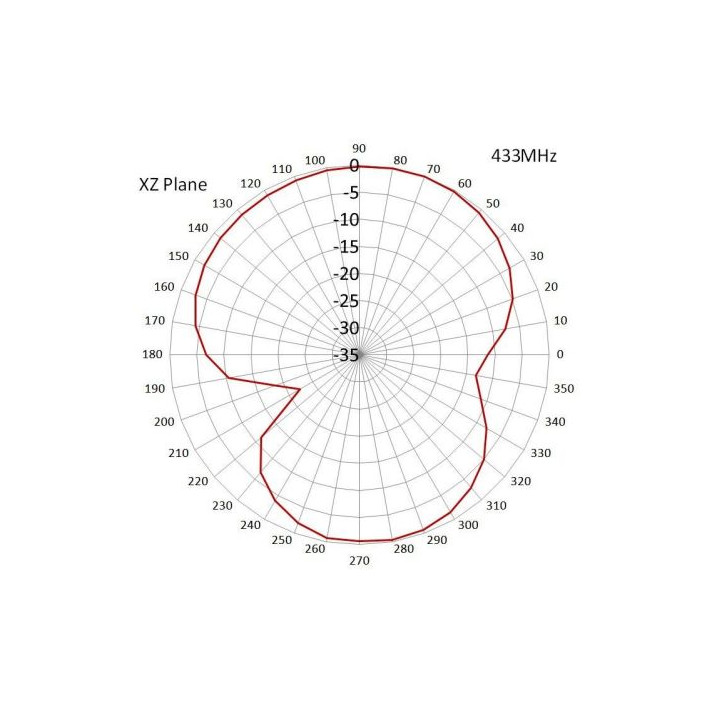

• Polarization: linear
• Operating temperature: -40...85°C
• Mounting: screw (fixing nut)
• Connector Type: SMA Male
• Cable type: RG58
• Cable length: 3m

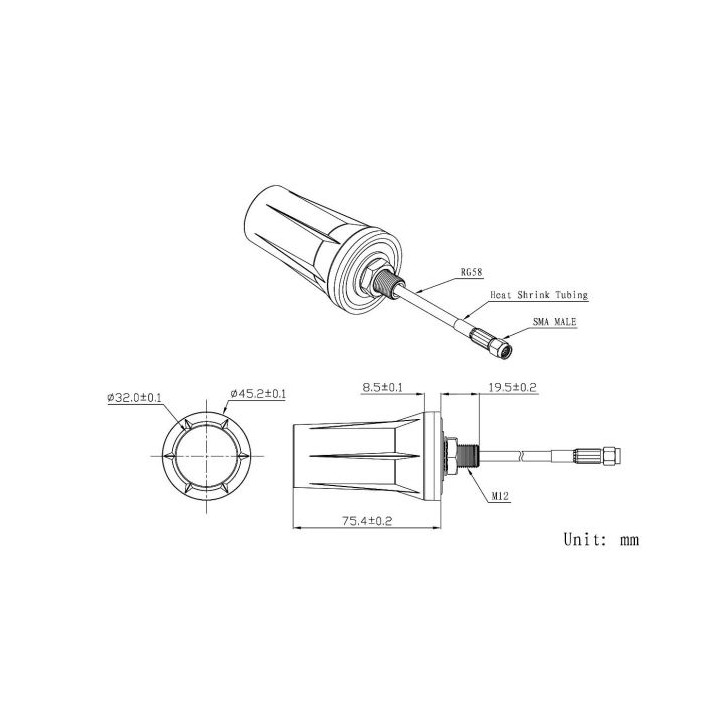

• Antenna height: 75.4mm
• Antenna diameter: 45.2 mm
• Mounting hole diameter : 12mm

ADDITIONAL ANTENNA OPTIONS - PAID OPTIONS - look for them on the auction as ADDITIONAL ANTENNA CHARGE:

It is possible to change the connector according to the customer's order:

• BNC-plug: electronic modules, microphones, microports and others
• FME- plug: GSM repeaters
• N- socket: GSM repeaters and others
• N-plug: repeaters, GSM plug connector
• SMA-RP - plug: electronic modules, microphones, microports and others
• TNC-plug: electronic modules, microphones, microports, GSM repeaters and others

In the case of purchase of a modified antenna, it is not subject to return, so if you are not sure about the purchase, please purchase the antenna and the appropriate adapter.

The antenna cable will be up to 5cm shorter than the declared length in the antenna description.

The delivery time for a modified antenna may be extended by one day.

If you have not found the connector that you would like to mount on your antenna, please submit an inquiry.

INSTALLATION NOTES:

• Placing the antenna outside the device housing or room significantly improves the range and stability of data transmission.
• In the case of an antenna mounted on adhesive tape, it should be avoided to mount it on metal surfaces, as this leads to a decrease in its gain and changes the directional characteristic. MOUNTING NOTES:


• Placing the antenna outside the device housing or room significantly improves the range and stability of data transmission.
• In the case of an antenna mounted on self-adhesive tape, avoid mounting it on metal surfaces as this leads to a reduction in its gain and changes the directional characteristics.
