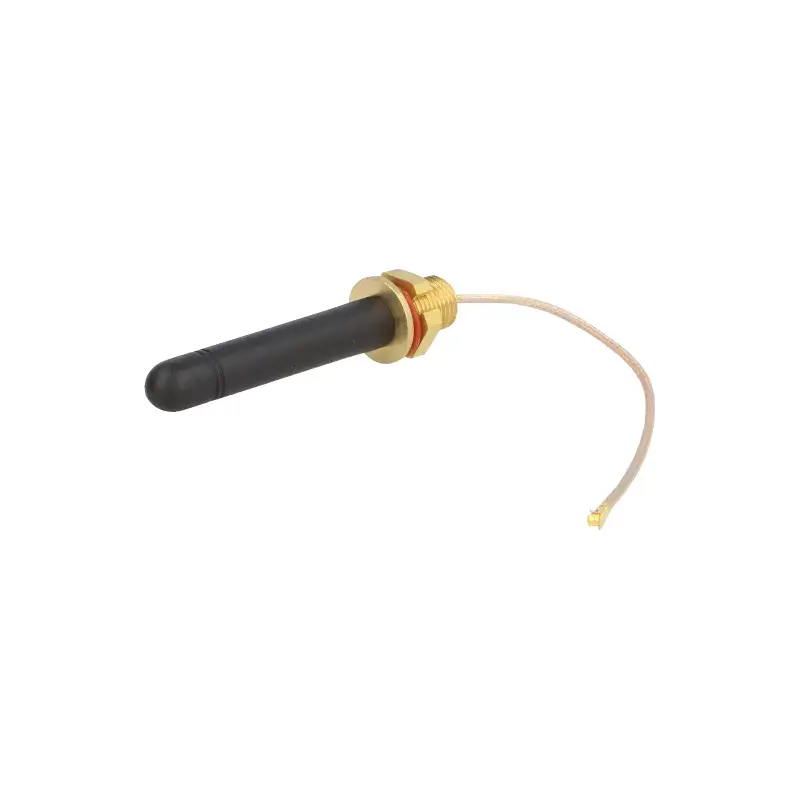

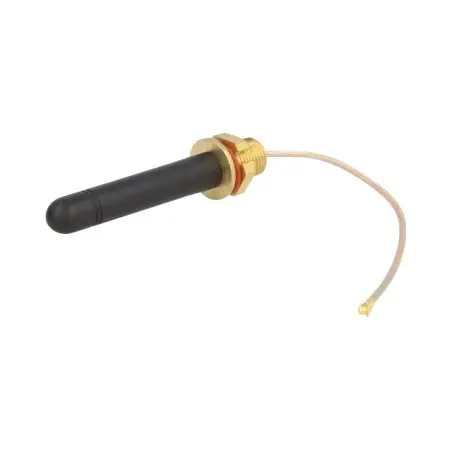

Antenna 433 Mhz 2dBi plug
U-FL
face="Arial">Use:
face="Arial">
- smart home control,
- garage door control systems,
- alarm sensors,
- temperature controllers,
- radio lines,
- Telemetry
Leading the antenna outside the housing
devices or rooms significantly improves access and stability
connections to a GSM operator.
Antenna designed for
for mounting to the housing, chassis, body through the mounting hole
fi=12mm.
Once installed, it blends in discreetly with
assembly place
face="Arial"> SPECIFICATION:
Frequency:
433.05...434.79Mhz
Antenna energy gain:
2dBi
Impedance:
50Ω
Polarization: linear
Operating temperature:
-40...85°C
Mounting:
screw (fixing nut)
Connector type:
u.FL
IPX,IPEX
Cable type:
RG178
Cable length:
100 mm
Antenna height:
63.6mm
Antenna diameter:
15.5 mm
Mounting hole diameter:
10mm
Degree of protection:
IP67 ( otherwise resistance to weather conditions)
environmental)
