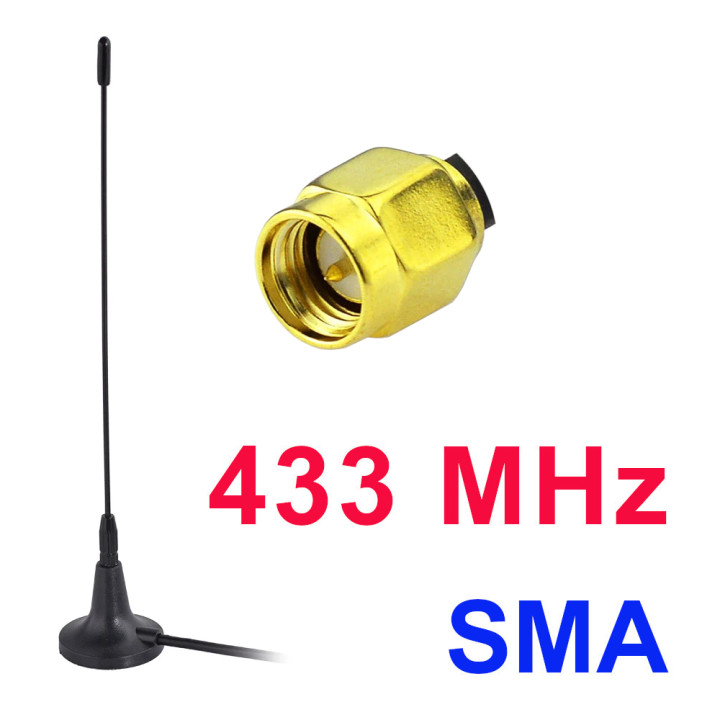

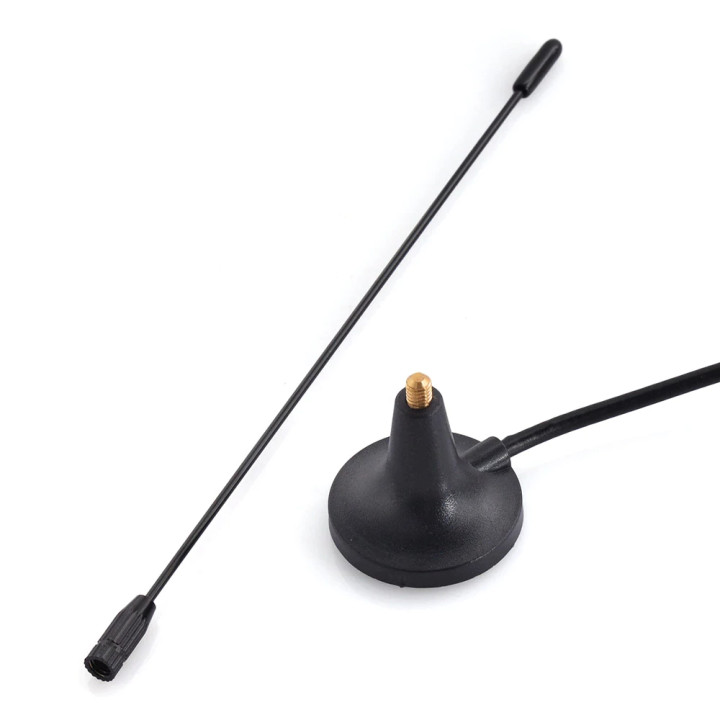

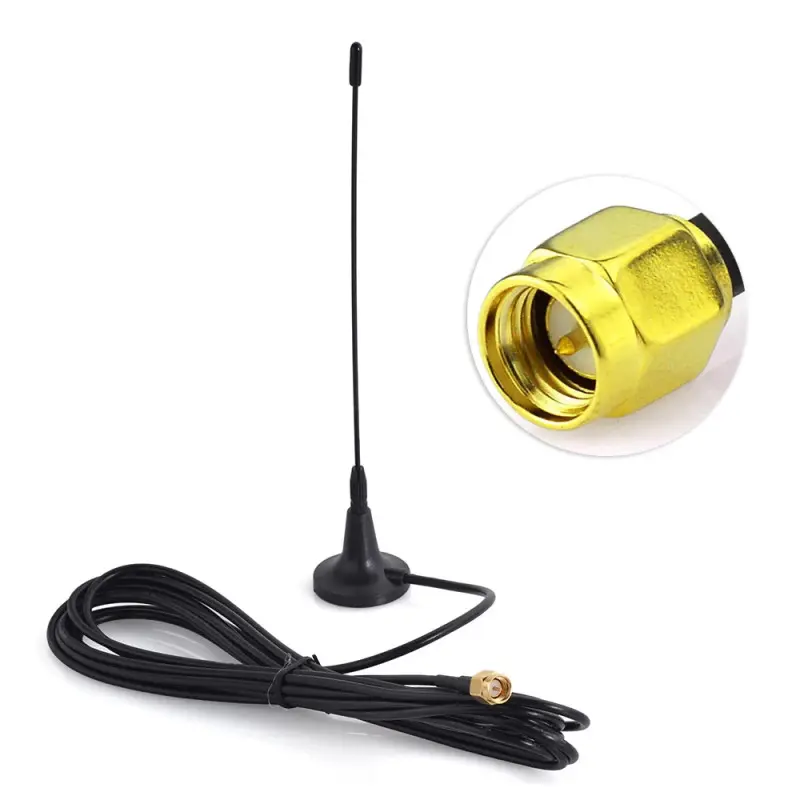

Antenna 433Mhz 3dBi magnetic SMA plug L23

Antenna 433 Mhz 3dBi magnetic SMA plug dual band L23

Use:

• smart home control rooms,
• garage door control systems,
• alarm detectors,
• temperature controllers,
• radiolines,
• telemetry

Leading the antenna outside the device housing or room significantly improves the range and stability of data transmission.

SPECIFICATION:

• Frequency: 433Mhz
• Antenna gain: 3dBi
• Impedance: 50Ω
• Polarization: linear
• Operating temperature: -40...85°C
• Mounting: magnet
• Connector type: SMA men
• Cable type: RG174
• Wire length: 3m
• Antenna Height: 151.3mm
• Base Diameter: 29.4mm

ADDITIONAL OPTIONS FOR ANTENNAS - PAID OPTIONS -  look for an auction as AN ANTENNA SURCHARGE:

It is possible to change the connector according to the customer's order:

• BNC- plug: electronic modules, microphones, microports and others
• CRC9- plug: GSM modems and routers
• F- plug: GSM speakers
• FAKRA - socket: radio communication devices (mainly automotive)
• FAKRA - plug
• FME- plug: GSM speakers
• MC CARD - plug:  electronic modules, microphones, microports and others
• MCX - plug:  electronic modules, microphones, microports and others
• MMCX - plug:  electronic modules, microphones, microports and others
• N-socket: GSM  and other speakers
• N-plug: speakers, GSM connector plug
• SMA-RP- plug: electronic modules, microphones, microports and others
• SMB- socket: electronic modules, microphones, microports and others
• SMB-plug: electronic modules, microphones, microports and others
• TNC- plug: electronic modules, microphones, microports, GSM  speakers and others
• TS9- plug: GSM modems and routers
• TWIX -plug 2 in 1 CRC9 / TS9: GSM modems and routers

In the case of purchasing a modified antenna, it is not refundable, so if you are not sure about the purchase, please buy an antenna and a suitable adapter.

The antenna cable will be shorter up to 5cm than the decarrated length in the antenna description.

The delivery time of a modified antenna can be extended by one day.

If you have not found a connector that you would like to mount on the air, please submit an inquiry.

INSTALLATION NOTES:

• Leading the antenna outside  the device housing or  room significantly improves the range and stability of data transmission.
• In the case of an antenna mounted on adhesive tape, its installation on matal surfaces should be avoided, as this leads to a decrease in its gain and changes the directional chartacteristics.
