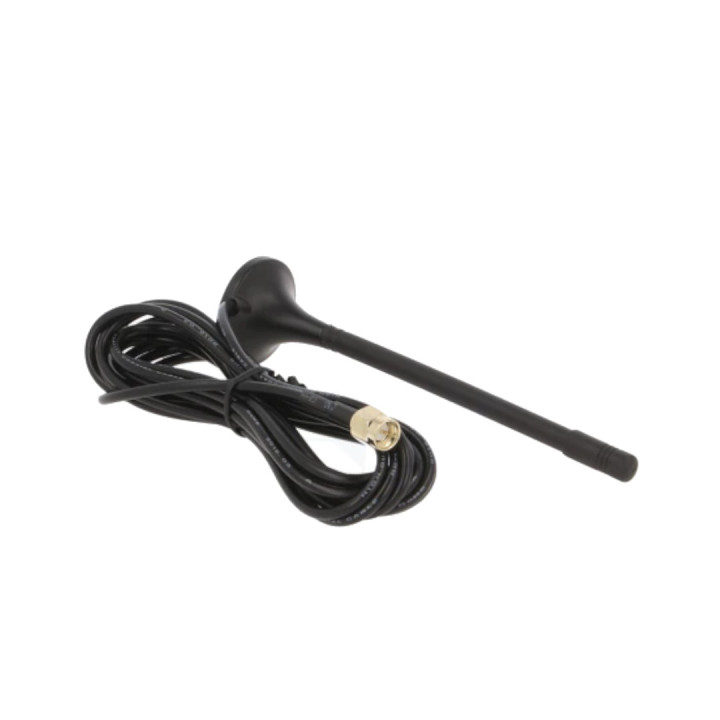

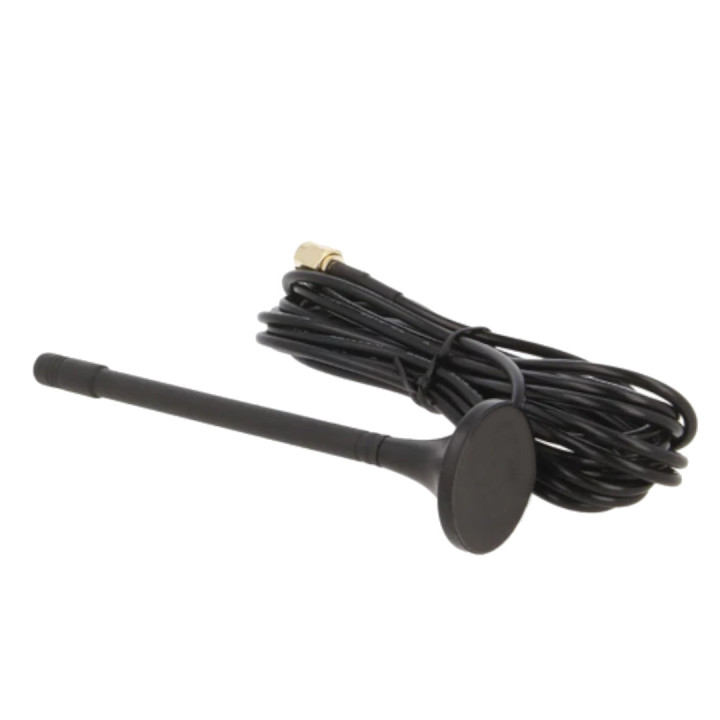

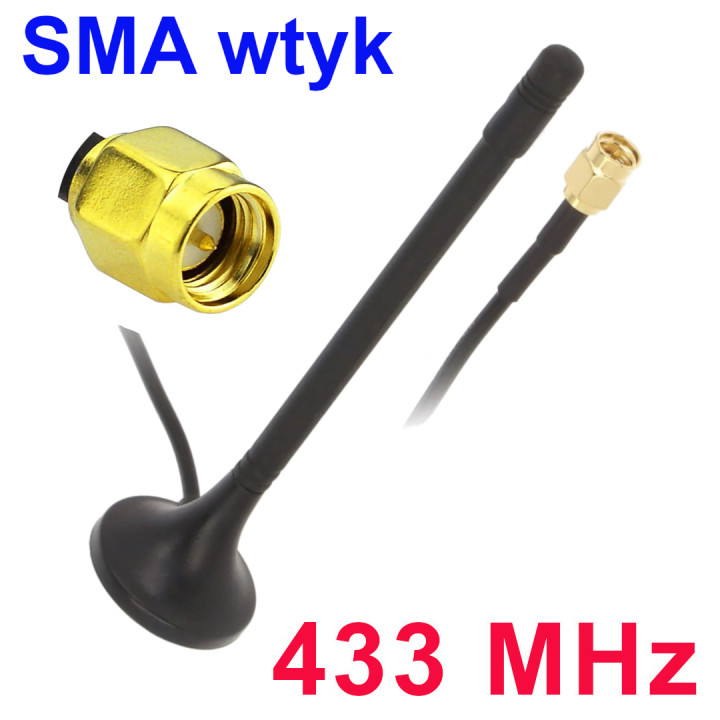

Antenna 433Mhz 3dBi magnetic SMA plug L16

Antenna 433 Mhz 3dBi magnetic SMA plug L16

Application:

• a smart home,
• garage door control systems,
• alarm sensors,
• temperature controllers,
• radio lines,
• Telemetry

Placing the antenna outside the device housing or room significantly improves the range and stability of data transmission.

In the case of an antenna mounted on self-adhesive tape, avoid mounting it on metal surfaces as this leads to a reduction in its gain and changes the directional characteristics.

SPECIFICATION:

• Frequency: 433Mhz
• Antenna energy gain: 3dBi
• Impedance: 50Ω
• Polarization: linear
• Operating temperature: -40...85°C
• Mounting: magnetic base
• Connector Type: SMA Male
• Cable type: RG174
• Cable length: 3m
• Antenna height: 121mm
• Base diameter: 29.4 mm

ADDITIONAL ANTENNA OPTIONS - PAID OPTIONS - look for them on the auction as ADDITIONAL ANTENNA CHARGE:

It is possible to change the connector according to the customer's order:

• BNC-plug: electronic modules, microphones, microports and others
• CRC9- plug: GSM modems and routers
• F- plug: GSM repeaters
• FAKRA - socket: radio communication devices (mainly automotive)
• FAKRA - plug
• FME- plug: GSM repeaters
• MC CARD - plug: electronic modules, microphones, microports and others
• MCX - plug: electronic modules, microphones, microports and more
• MMCX - plug: electronic modules, microphones, microports and more
• N- socket: GSM repeaters and others
• N-plug: repeaters, GSM plug connector
• SMA-RP - plug: electronic modules, microphones, microports and others
• SMB- socket: electronic modules, microphones, microports and more
• SMB- plug: electronic modules, microphones, microports and others
• TNC-plug: electronic modules, microphones, microports, GSM repeaters and others
• TS9- plug: GSM modems and routers
• TWIX -2 in 1 CRC9/TS9 plug: GSM modems and routers

In the case of purchase of a modified antenna, it is not subject to return, so if you are not sure about the purchase, please purchase the antenna and the appropriate adapter.

The antenna cable will be up to 5cm shorter than the declared length in the antenna description.

The delivery time for a modified antenna may be extended by one day.

If you have not found the connector that you would like to mount on your antenna, please submit an inquiry.

INSTALLATION NOTES:

• Placing the antenna outside the device housing or room significantly improves the range and stability of data transmission.
• In the case of an antenna mounted on self-adhesive tape, avoid mounting it on metal surfaces as this leads to a reduction in its gain and changes the directional characteristics.
