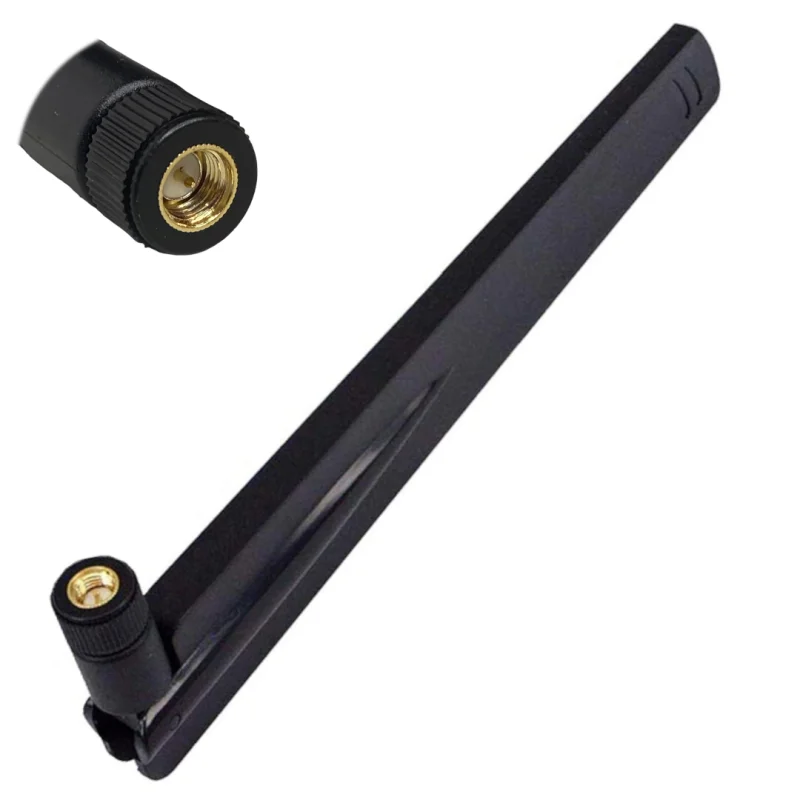

Antenna 433Mhz 15dBi
folded with hinge SMA plug face="Arial">
Application:
- a smart home,
- garage door control systems,
- alarm sensors,
- temperature controllers,
- radio lines,
- Telemetry
Leading the antenna outside the device housing,
whether the room significantly improves the range and stability of transmission
data.
SPECIFICATION
- Frequency: 433MHz
- Antenna gain: 15dBi
- Impedance: 50Ω
- Polarization: linear
- Maximum input power: 50W
- VSWR:
<=1.5
- Operating temperature: -40...85°C
- Installation: to
connectors
- Connector Type: SMA
male

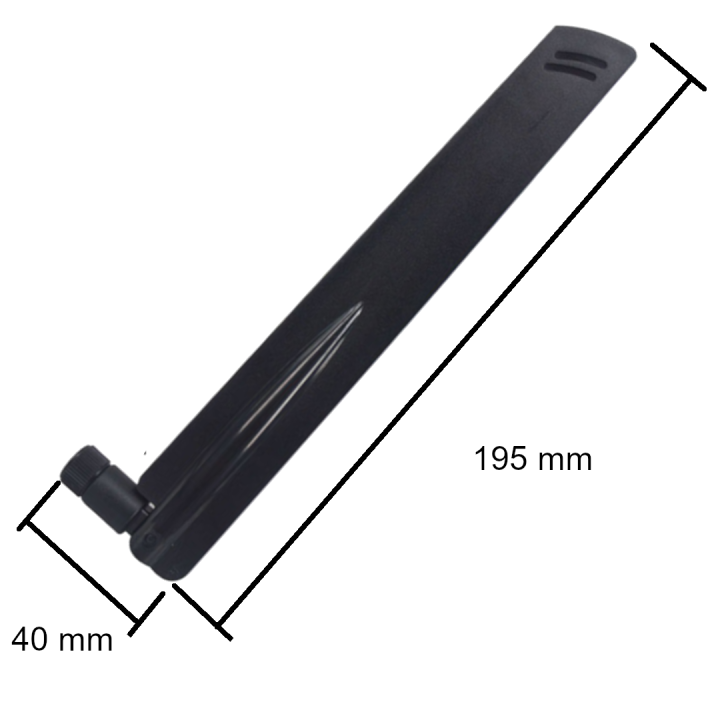

- Total length of the antenna
: 220mm
- Antenna length up to
hinge: 195
mm
