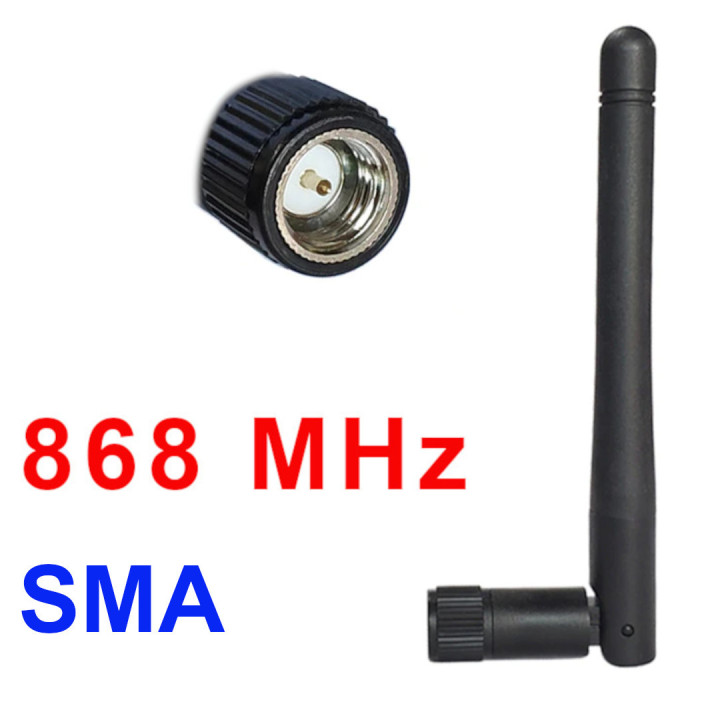

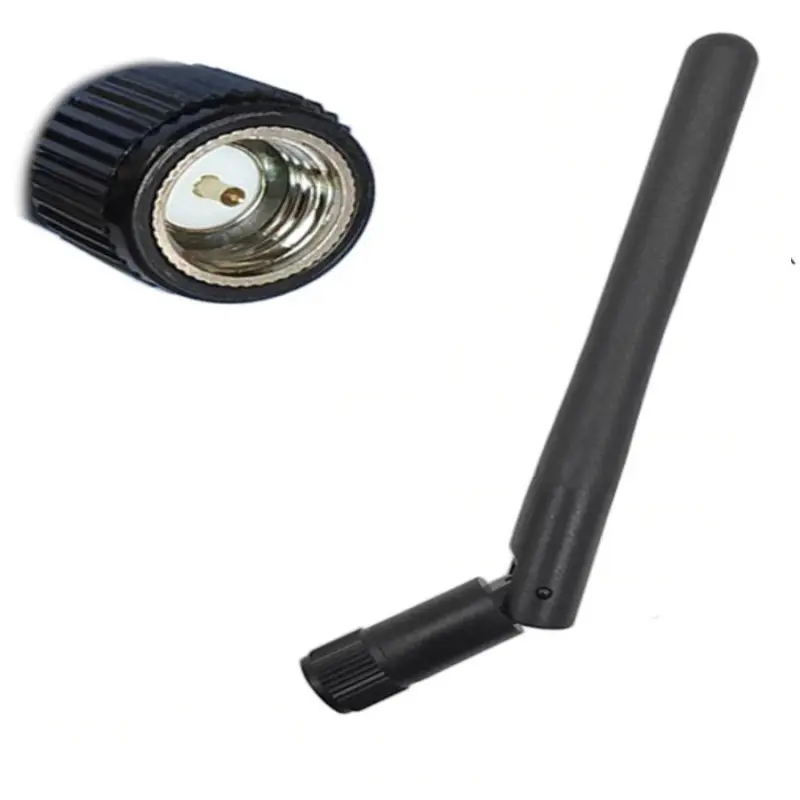

Antenna 868Mhz 3dBi
SMA male plug
face="Arial"> Usage:
- a smart home,
- garage door control systems,
- alarm sensors,
- temperature controllers,
- radio lines,
- Telemetry
Leading the antenna outside the device housing,
whether the room significantly improves the range and stability of transmission
data.
SPECIFICATION
- Frequency: 868...915 Mhz
- Antenna energy gain:
3dBi
- SVR:
<=1.9
- Impedance: 50Ω
- Polarization: linear
- Operating temperature: -40...85°C
- Installation: to
connectors
- Connector Type: SMA
male
- Total antenna length: 115
mm
- Antenna to hinge length: 87
mm
