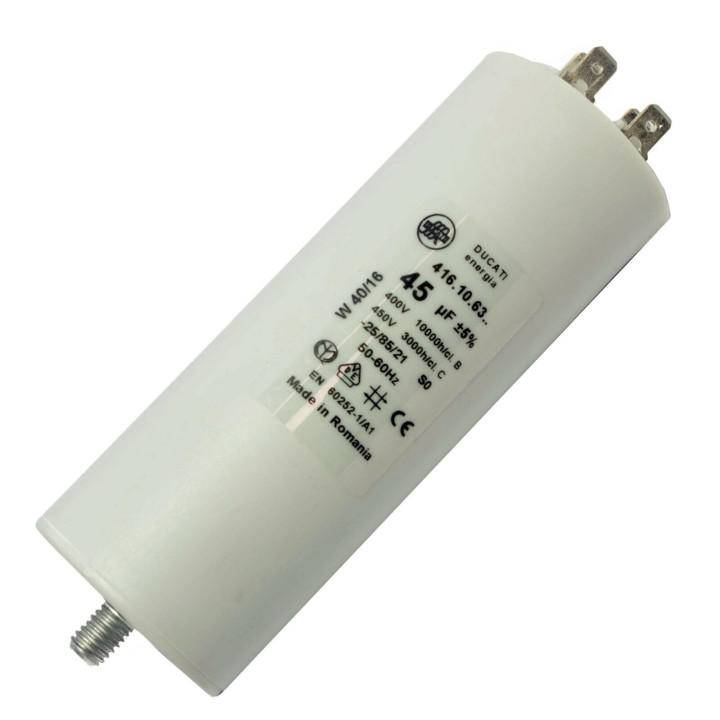

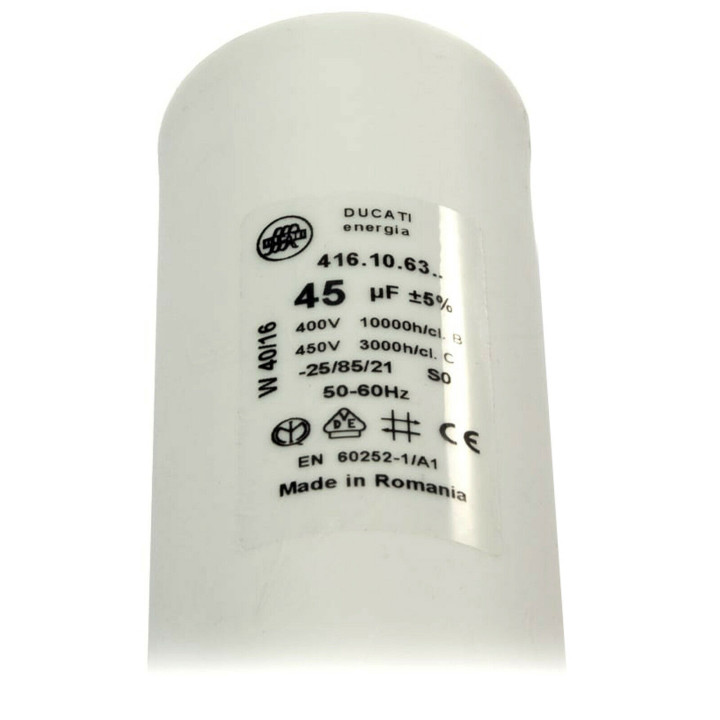

DUCATI 45uF 450Vac Motor Capacitor

DUCATI 45uF 450Vac LONG motor capacitor LIFETIME 10000 hours

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Are used:

• lawn mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

SPECIFICATION TECHNICAL

• Manufacturer DUCATI ENERGIA
• Capacitor type polypropylene
• Application capacitors for motors, work
• Capacity 45µF
• Operating voltage 425V
• Body dimensions Ø45 x 117mm
• Operating temperature -25...85
• T olerance ±5%
• Climate category 25/85/21
• Lifespan 10000h
• Leads CONNECTORS 6.3mm
• Gross weight: 0.2 kg


Capacity selection:

You should always be guided by the documentation and the status found in device. The important information is that you can always increase the capacity ( max by 20%) compared to the damaged one. Too much capacity causes decrease in engine speed and power (actually a decrease in torque rotational). Too small capacity causes the engine to have problems with start-up.

Symptoms of capacitor damage:

- optical inspection - external melting in the form of gray "lava" ++

- auditory inspection - the engine does not work and roars ++

- electrical measurement with a meter

++ the methods described above usually determine capacitor failure, but this may not be the only fault in the system driving
