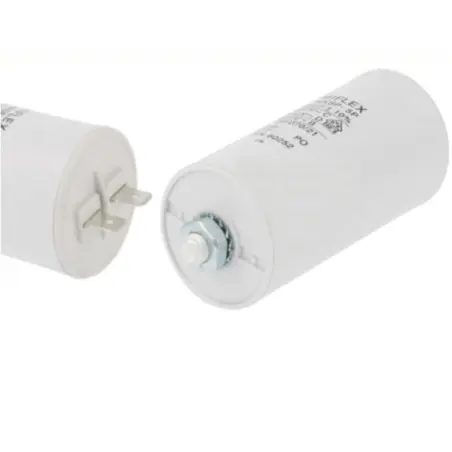

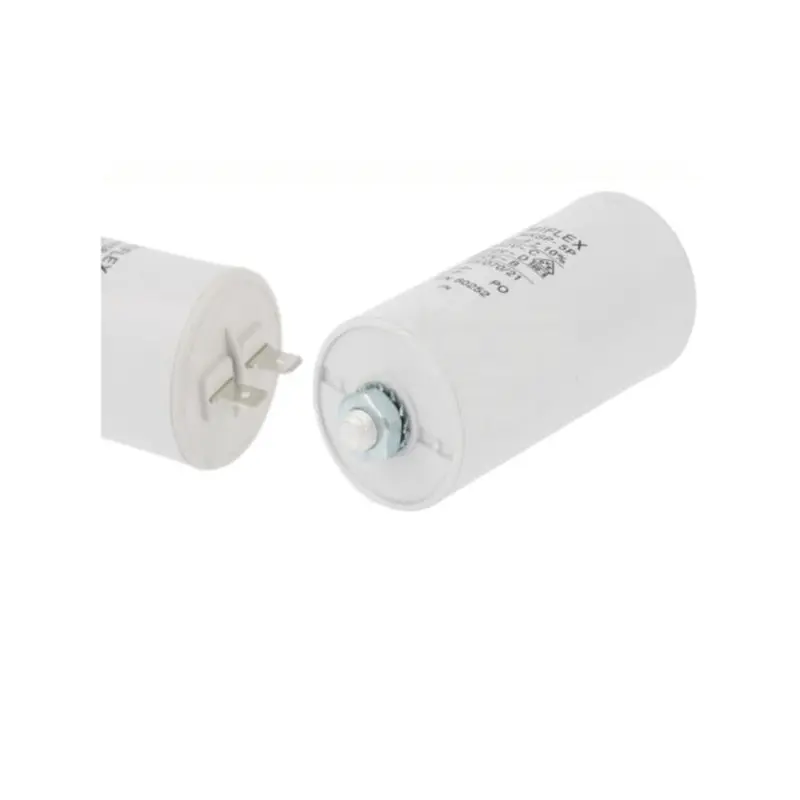

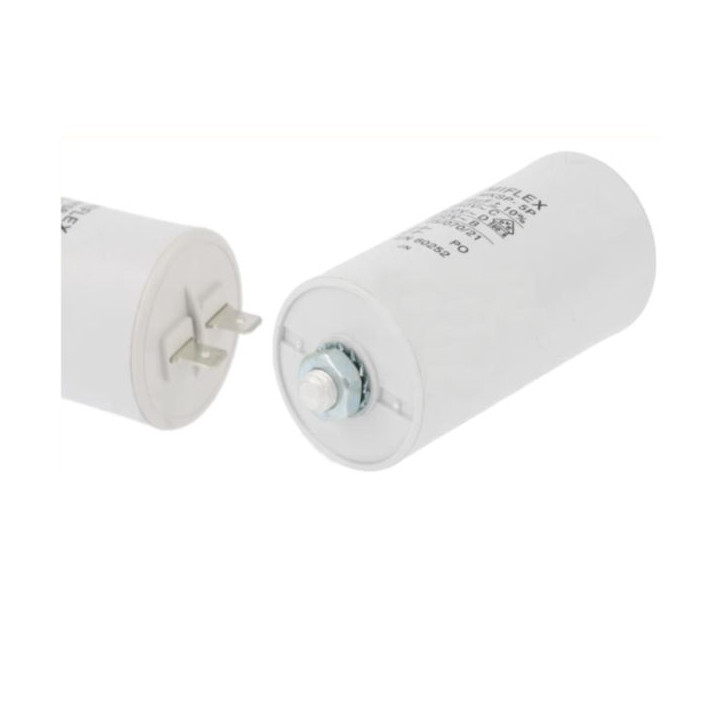

MIFLEX 35uF 450Vac motor capacitor POLISH

CAPACITOR MOTOR 35uF/450V WITH MIFLEX CONNECTORS Polish product color="#000000" face="Times New Roman" size="3">

LONG LIFETIME 10000 hours

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Are used:

• mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

SPECIFICATION TECHNICAL

• Manufacturer MIFLEX
• Capacitor type polypropylene
• Application capacitors for motors, work
• Capacity 35µF
• face="Arial">Working voltage 450V
• face="Arial"> Body dimensions Ø50 x 83m
• face="Arial"> Operating temperature -25...70
• face="Arial"> T face="Arial">olerance ±10%
• face="Arial"> face="Arial">Climate category 25/70/21
• Lifespan 10000h
• Terminals CONNECTORS
• Gross weight: 0.2 kg


Capacity selection:

You should always be guided by the documentation and the status found in device. The important information is that you can always increase the capacity ( max by 20%) compared to the damaged one. Too much capacity causes decrease in engine speed and power (actually a decrease in torque rotational). Too small capacity causes the engine to have problems with start-up.

Symptoms of capacitor damage:

- optical inspection - external melting in the form of gray "lava" ++

- auditory inspection - the engine does not work and roars ++

- electrical measurement with a meter

++ the methods described above usually determine capacitor failure, but this may not be the only fault in the system driving
