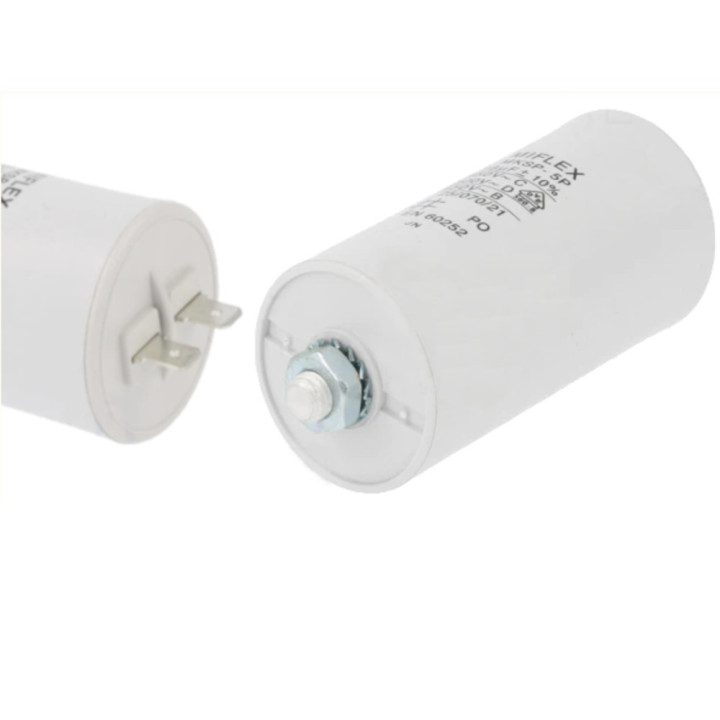

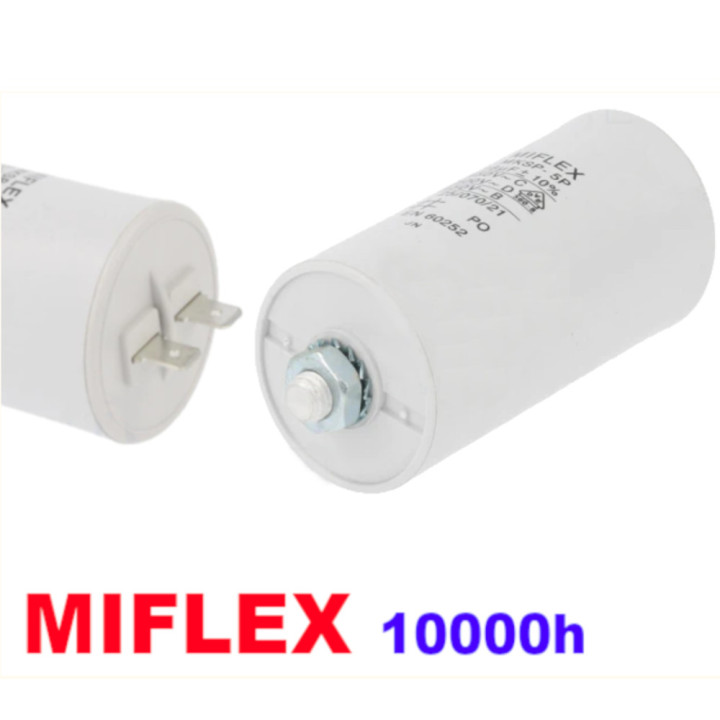

MIFLEX 8uF 450Vac POLISH v3 motor capacitor

LONG LIFETIME 10000 hours

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Are used:

• mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

SPECIFICATION TECHNICAL

• Manufacturer MIFLEX
• Capacitor type: polypropylene
• Application of capacitors for motors, work
• Capacitance 8µF
• Operating voltage 450V
• MKSP-5P capacitor series
• Version 2
• Body dimensions Ø35 x 65mm
• Operating temperature -25...70
• Tolerance ±10%
• Climate category 25/701
• Lifespan 10000h
• Leads CONNECTORS 6.4mm
• M8 mounting screw
• Gross weight: 0.1 kg

Selection capacity:

It is necessary always refer to the documentation, the condition found in the device. Important the information is that you can always increase the capacity (max. 20%) in in relation to the damaged one. Too much capacity causes a drop in speed rotational speed and engine power. Too small a capacity causes the engine to have problem with starting.

Symptom capacitor damage:

• optical inspection - melting on the outside in the form of gray "lava" ++
• auditory inspection - engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine capacitor damage, but it may not be the only fault in the drive system
