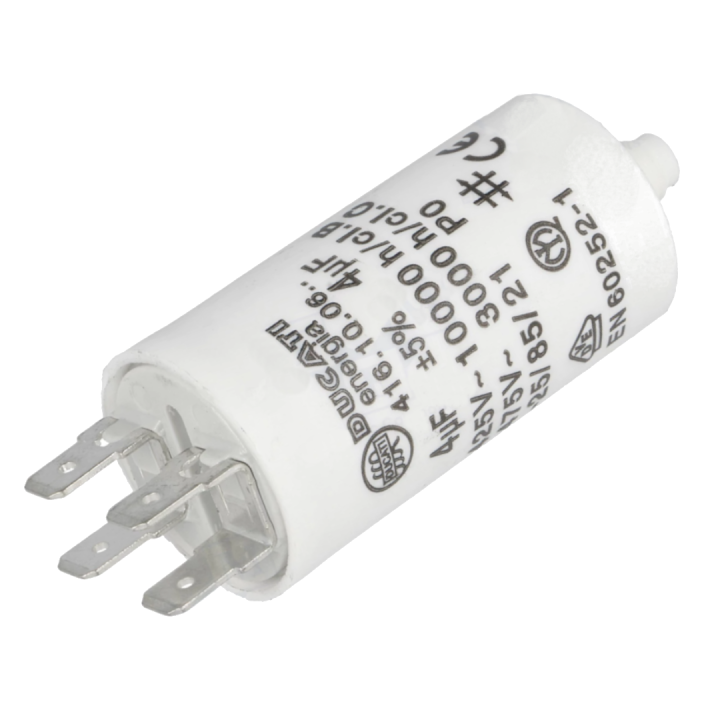

Engine capacitor WORK 4uF/425V- DUCATI

CAPACITOR ENGINE WORK 4uF/425V DUCATI ENERGIA

LONG LIFETIME 10000 hours

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Applied:

• fans
• central heating circulation pumps
• roller shutter actuators and bars
• and others

SPECIFICATION TECHNICAL

• Manufacturer DUCATI ENERGIA
• Capacitor type: polypropylene
• Application of capacitors for motors, work
• Capacitance 4µF
• Operating voltage 425V
• Body dimensions Ø28 x 55mm
• Operating temperature -25...85
• Tolerance ±5%
• Climate category 25/85/21
• Series 416.10
• Lifespan 10000h
• Leads CONNECTORS 6.3mm
• Mounting: M8 screw
• Kit contents: without washer and nut
• Gross weight: 0.04 kg

Selection capacity:

It is necessary always refer to the documentation, the condition found in the device. Important the information is that you can always increase the capacity (max. 20%) in in relation to the damaged one. Too much capacity causes a drop in speed rotational speed and engine power. Too small a capacity causes the engine to have problem with starting.

Symptom capacitor damage:

• optical inspection - melting on the outside in the form of gray "lava" ++
• auditory inspection - engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine capacitor damage, but it may may not be the only fault in the drive system.
