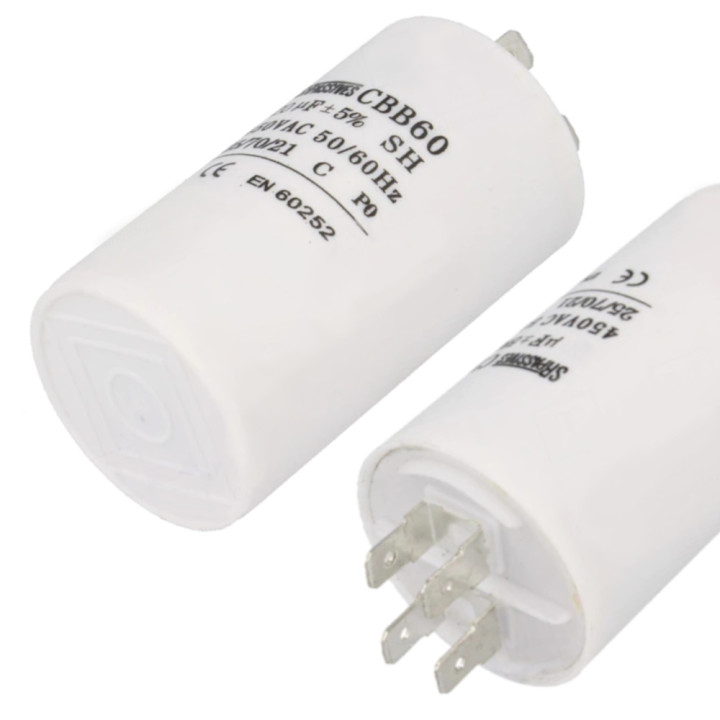

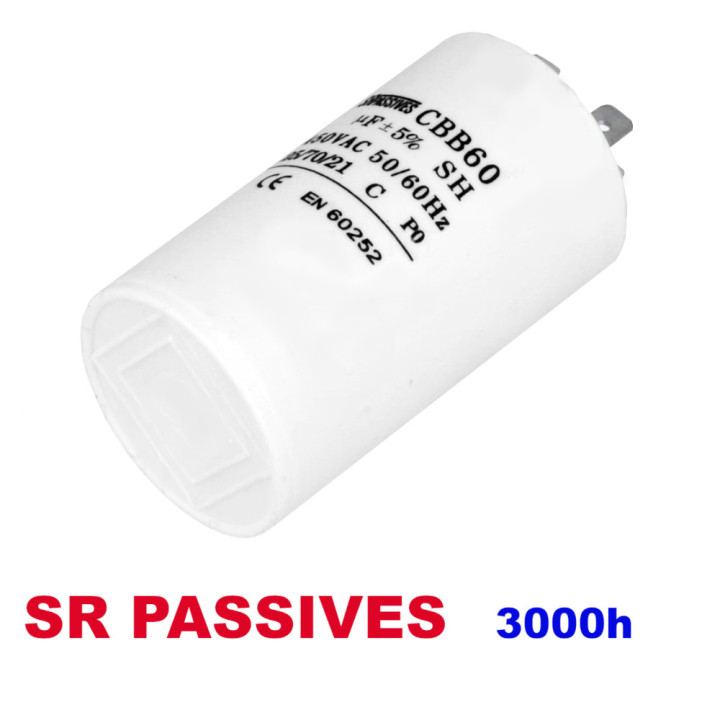

Motor capacitor STARTING WORK 30uF / 450V

ENGINE CAPACITOR WORKING 30uF/450V SR-PASSIVES CONNECTORS

The motor start/run capacitor is designed for cooperation with asynchronous electric motors powered by electricity variable.
In everyday life we encounter them in :

• lawn mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

TECHNICAL SPECIFICATION

• Manufacturer SR Passives
• Capacitor type: polypropylene
• Application of capacitors for motors, work
• Capacitance 30µF
• Operating voltage 450V
• Body dimensions fi - 45 x 90mm
• Operating temperature -25...70°C
• Tolerance ±5%
• Climate category 25/70/21
• Lifespan 3000h
• Leads CONNECTORS 6.3mm
• Fixing screw NONE

Capacity selection:

You should always be guided by the documentation and the status found in device. Important information - that you can always increase the capacity (max by 20%) compared to the damaged one. Too much capacity causes a decrease engine speed and power (actually torque drop). Too Small capacity will cause the engine to have trouble starting.

Symptoms of capacitor damage:

• optical inspection - external melting in the pot gray "lava" ++
• auditory inspection - the engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine capacitor failure, but this may not be the only fault in the system driving
