Motor capacitor 1.5uF 450V VERY SMALL cab
Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.
To pay for the purchase of a product in excess of its current status, we will provide you with:
- product reservation and guarantee,
- a guarantee of the price from the date of payment of the order.

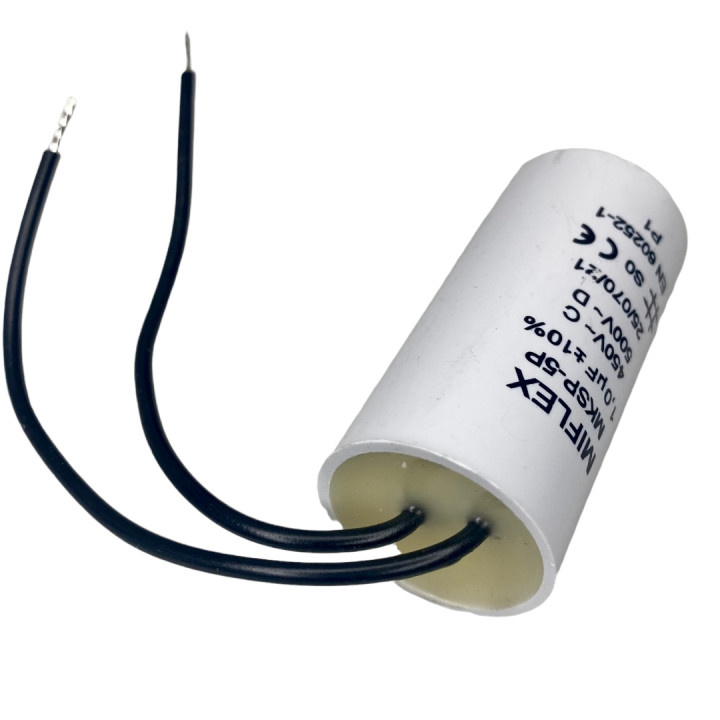

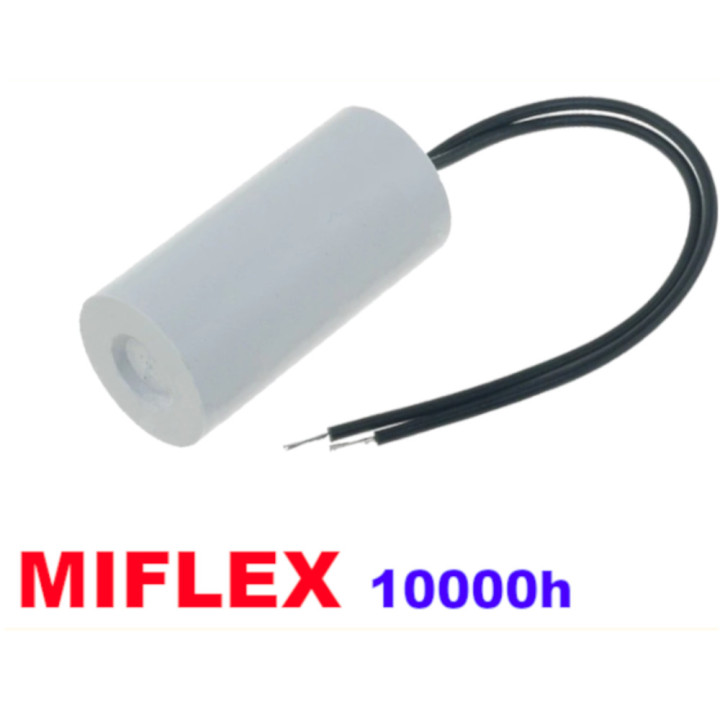

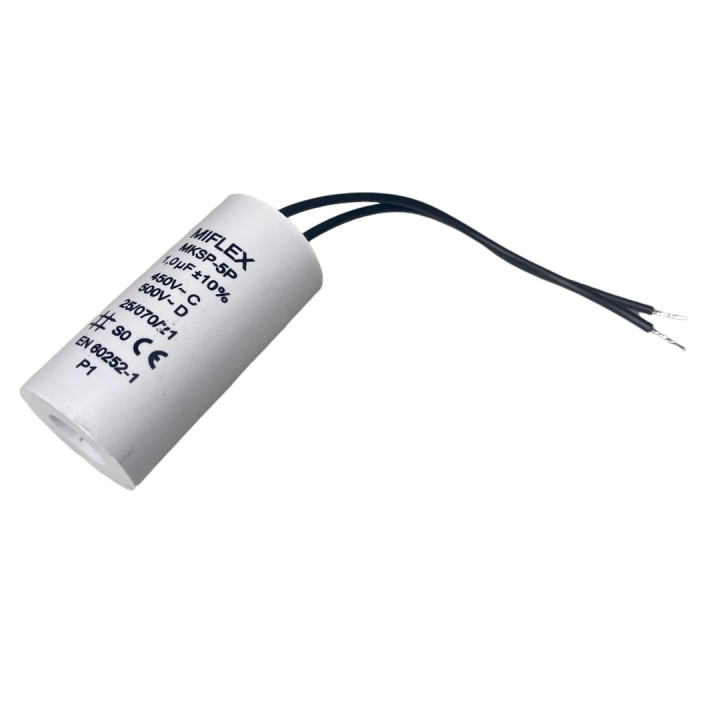

CAPACITOR MOTOR WORKING 1.5uF/450V MIFLEX CABLES Polish product
LONG LIFETIME 10000 hours
***Down capacitors with cables can be ordered for an ADDITIONAL CHARGE 6 PLN tips shown in the photos - details at the end description.
Capacitor The starting/operating motor is designed to work with asynchronous ones electric motors powered by alternating current.
Are used:
- lawn mowers
- fans
- central heating circulation pumps
- entrance gate actuators
- and others
SPECIFICATION TECHNICAL
- Manufacturer: MIFLEX
- Capacitor type: polypropylene
- Application of capacitors for motors, operation
- Capacity 1.5µF
- Operating voltage 450V
- Body dimensions Ø25 x 51mm
- Operating temperature -25...70
- Tolerance ±10%
- Climate category 25/70/21
- Capacitor series: MKSP-5P
- Version: 7
- Life time 10000 hours
- Pinouts CABLES
- Gross weight: 0.1kg
Selection capacity:
Belongs always follow the documentation and the condition found in the device. Important The information is that you can always increase the capacity (max. 20%). relation to the damaged one. Too much capacity causes a drop in speed rotation and engine power. Too little capacity causes the engine to have boot problem.
A symptom capacitor damage:
- optical inspection - melting outside in the form of gray "lava" ++
- auditory inspection - the engine does not work and makes a roaring noise ++
- electrical measurement with a meter
++ the methods described above usually determine capacitor damage, but it may not be the only fault in the drive system.
***Additional tip assembly:
After When selecting a capacitor, select the offer whose title begins with " Tip surcharge... ".
If If you order several capacitors, please include them in the order notes ( please avoid a separate message) please write which capacitors which endings.
