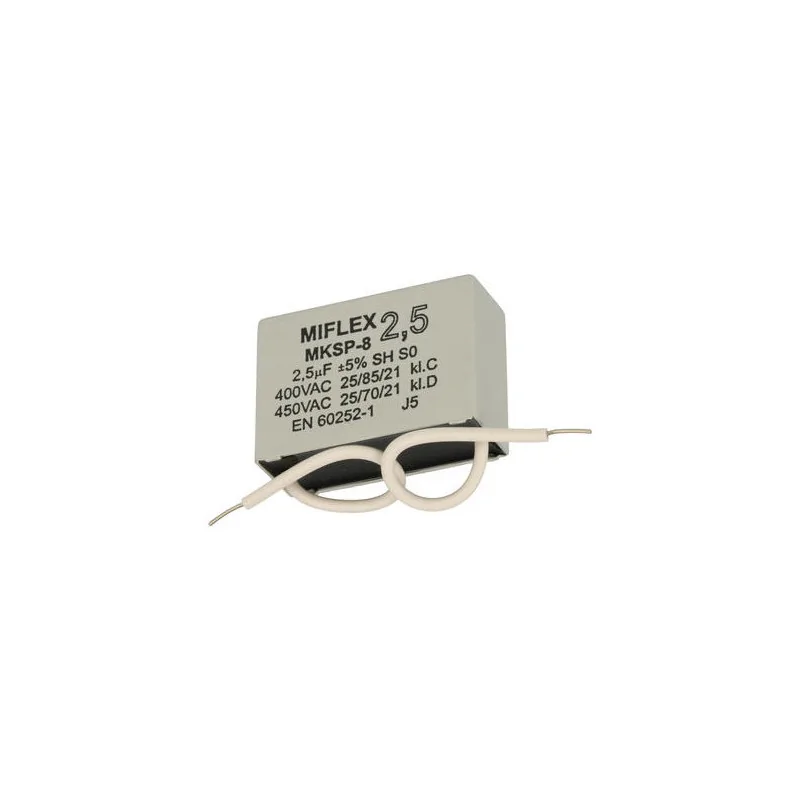

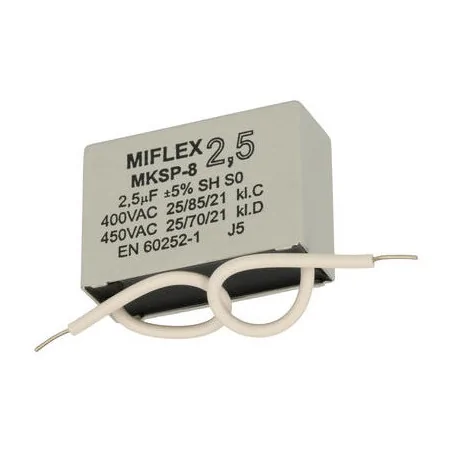

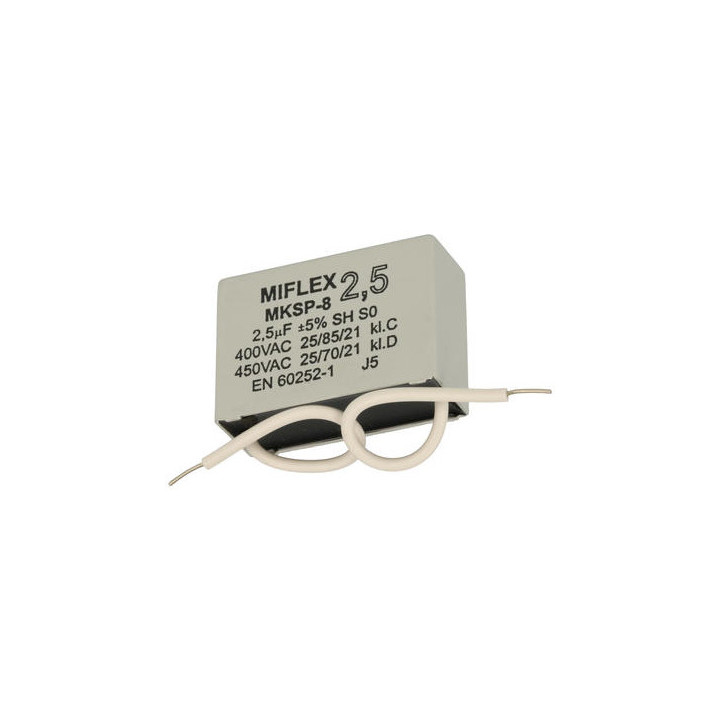

MIFLEX 2.5uF 400V motor capacitor POLISH

ENGINE CAPACITOR WORKING 2.5uF/400Vac MIFLEX POLISH

The starting/running motor capacitor is designed for cooperation with asynchronous electric motors powered by electricity variable.
In everyday life we encounter them in :

• lawn mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

TECHNICAL SPECIFICATION

• Manufacturer MIFLEX
• Capacitor type: polypropylene
• Application of capacitors for motors, work
• Capacity 2.5 µF
• Operating voltage 400Vac
• MKSP-8 capacitor series
• Version 2
• Body dimensions 41.4x28.5x16mm
• Pinout pitch 37.5mm
• Operating temperature -25...70°C
• Tolerance ±5%
• Climate category 25/70/21
• Lifespan 3000h
• Leads WIRES
• Possibility of PCB assembly
• Gross weight: 0.03kg


Capacity selection:

You should always be guided by the documentation and the status found in device. Important information - that you can always increase the capacity (max by 20%) compared to the damaged one. Too much capacity causes a decrease engine speed and power (actually torque drop). Too small capacity will cause the engine to have problems start-up.

Symptoms of capacitor damage:

• optical inspection - external melting in the pot gray "lava" ++
• auditory inspection - the engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine capacitor failure, but this may not be the only fault in the system driving
