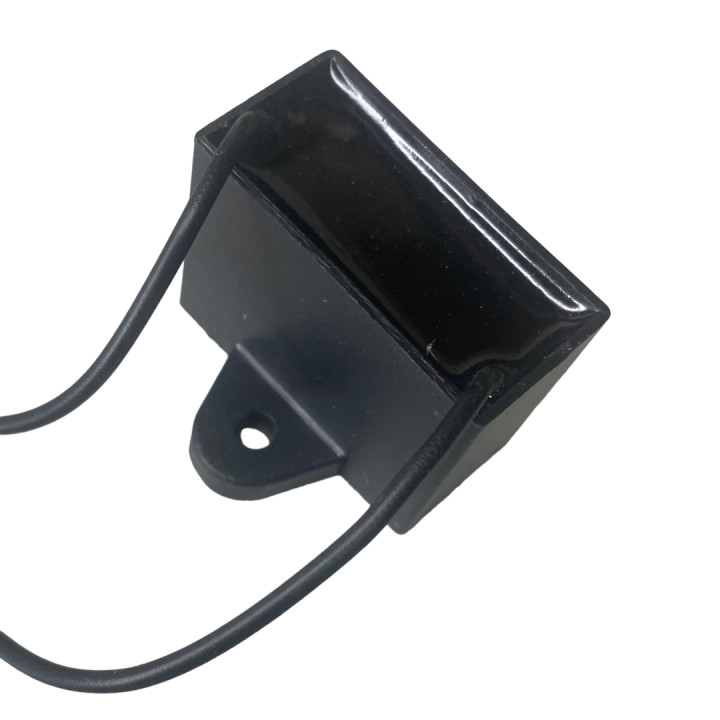

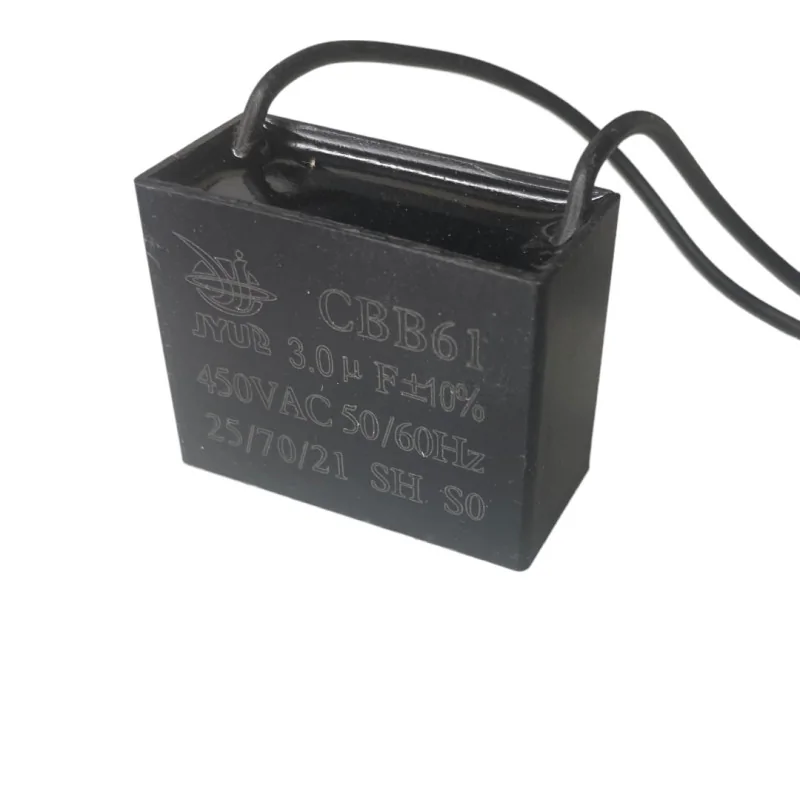

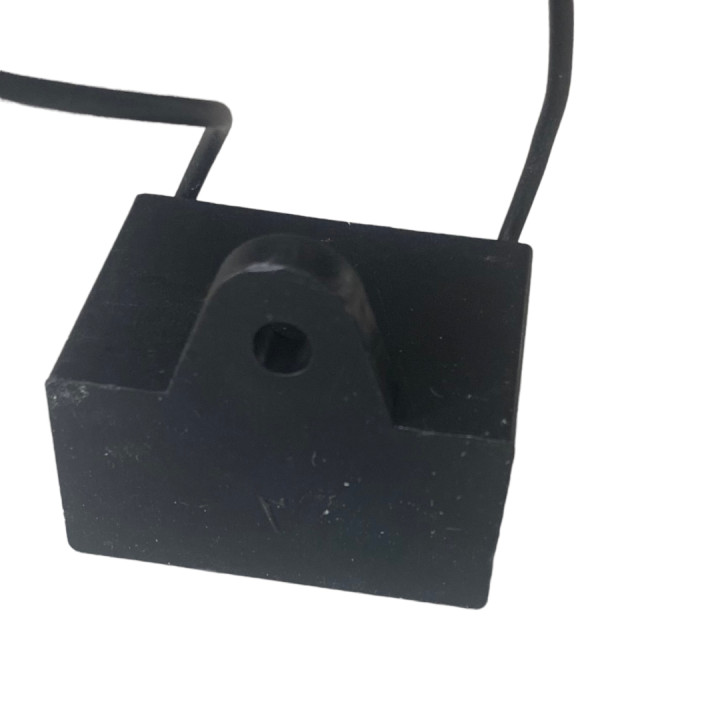

Motor Starting Capacitor 3uF 450V CBB61
Brutto:
zł15.65
(zł15.65 szt.)
Netto: 12.72 PLN
Czas wysyłki 1-2 dni robocze
ENGINE CAPACITOR WORKING 3uF/450Vac CBB61
Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.
Are commonly used:
- lawn mowers
- fans
- central heating circulation pumps
- blowers at central heating furnaces
- screw feeders for pellets or coal dust in furnaces WHAT
- Entrance gate actuators
- and others
SPECIFICATION TECHNICAL
- CBB61 Series
- Capacitor type: polypropylene
- Application of capacitors for motors: running, starting
- Capacitance 3µF
- Operating voltage 450V
- Body dimensions 37x29x14 mm (with mounting eyelet 27mm)
- Operating temperature -25...70*C
- Tolerance ±5%
- Climate category 25/70/21
- Lifespan 3000h
- Outputs CABLES
- Compliant with: IEC60252-1:2001, GB/T 3667.1-2005, RoHS
- Insulation resistance > 3000Mohm
- Loss Tg<+0.002 for (50...100Hz)
- Gross weight: 0.026 kg
