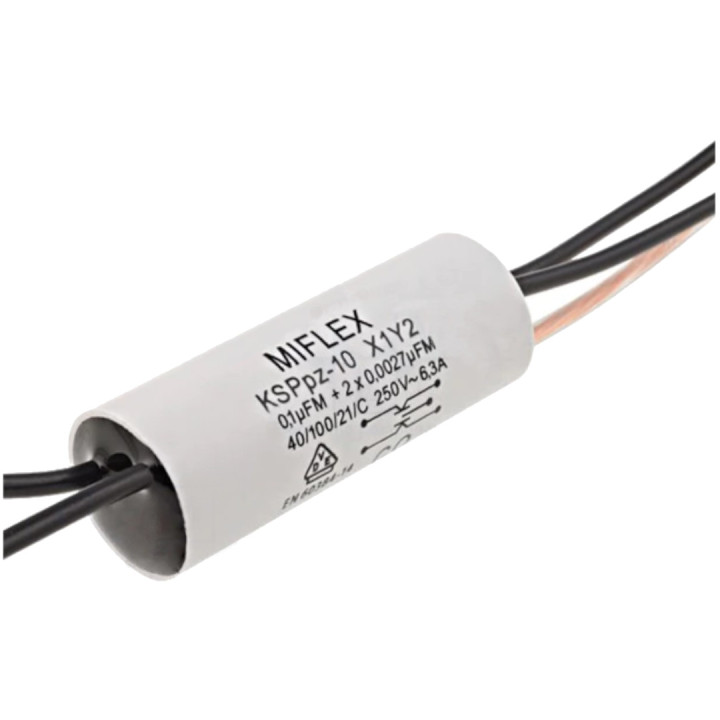

Capacitor KSPpz-10-2 100N/2.7N 250V X1Y2 MIFLEX

MKP X1 Y2 Capacitor KSPpz-10-2 100N/2.7N 100nF/2x2.7nF 250V MIFLEX (PL product )

Anti-interference polypropylene capacitor MKP X1 Y2 100nF/2x 2.7nF 250VAC is intended for mounting as a component anti-interference in circuits with motors and other devices commutating, also LED lighting.

If your vacuum cleaner, grinder coffee maker or other device causes crackling in the radio receiver, this indicates that this particular element is damaged in the device or it is missing has ( in older devices or removed during previous unfortunate repair).

The spectrum of side effects of capacitor damage is much wider. When operating the device with a damaged or removed capacitor can cause GSM and WiFi connections to drop, "image freezing" in TV.

Technical data:

Capacitor type polypropylene Capacitor type X1, Y2 Operating voltage 250V AC Tolerance ±20% Derivations wires Capacity Cx 100nF Capacitance Cy 2.7nF Dimension: Ø22x43mm

ADDITIONAL INFORMATION:

The capacitor is mounted in series with the device's power supply. Most often these are low-power motors, they can also be any commutating device, switching power supplies (e.g. LED lighting).

Symptoms of non-switching capacitor damage devices:

• radio interference heard as buzzing, whistling, sound distortion in radio and telecommunications devices,
• slowing down WiFi data transfers and GSM/LTE,
• loss of device connections telecommunications,
• image "puzzling" during DVB-T reception or SAT.

Symptoms of capacitor failure shutting down device:

• circuit overcurrent protection trip power supply of the device (short circuit between the black wires,
• switching off the differential circuit protection power supply of the device (short circuit or leakage between one of the black wires and a copper one,
• both of the above symptoms may occur simultaneously,
• the device does not start - due to lack of continuity of the power supply circuit (break in the circuit of one or two power supply lines black wire)
