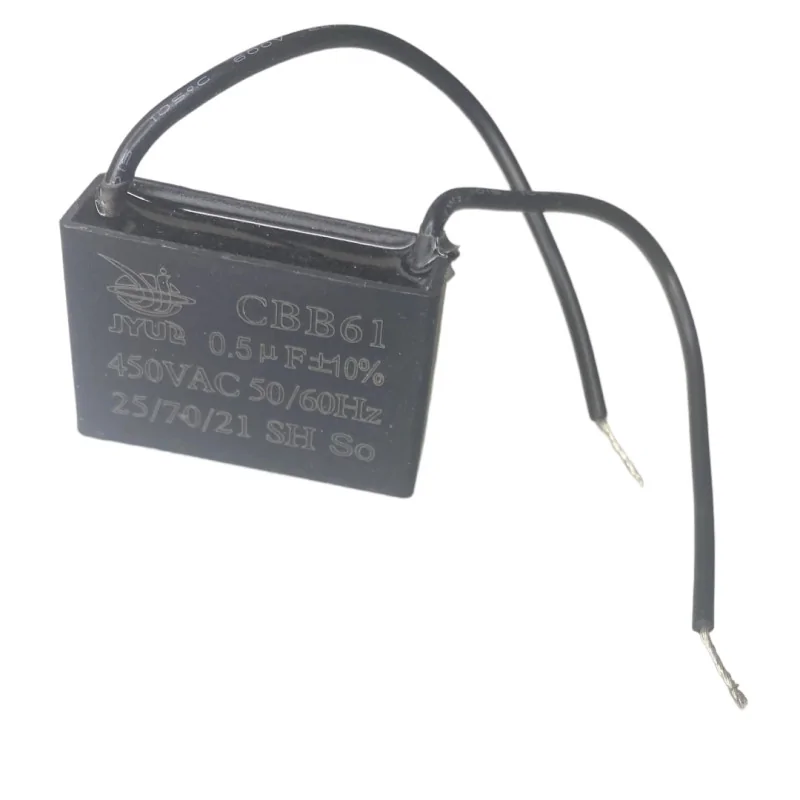

Motor Starting Capacitor 0.5uF 450V CBB61
Brutto:
zł14.43
(zł14.43 szt.)
Netto: 11.74 PLN
Czas wysyłki 1-2 dni robocze
ENGINE CAPACITOR WORK 0.5uF/450Vac CBB61
Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.
Are commonly used:
- lawn mowers
- fans
- central heating circulation pumps
- blowers at central heating furnaces
- screw feeders for pellets or coal dust in furnaces WHAT
- Entrance gate actuators
- and others
SPECIFICATION TECHNICAL
- CBB61 Series
- Capacitor type: polypropylene
- Application of capacitors for motors: running, starting
- Capacitance 0.5µF
- Operating voltage 450V

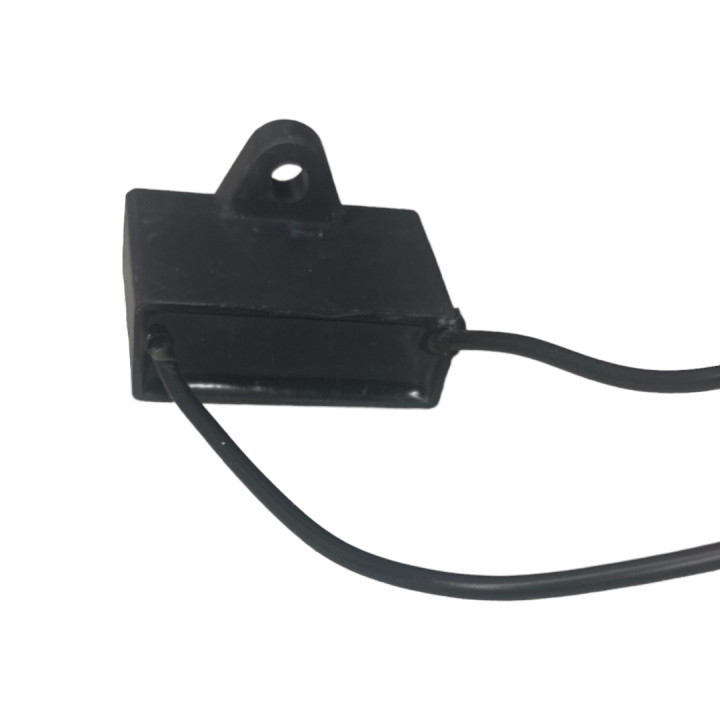

- Body dimensions 37x23x13 mm (with mounting eyelet 24 mm)
- Operating temperature -25...70*C
- Tolerance ±5%
- Climate category 25/70/21
- Lifespan 3000h
- Outputs CABLES
- Compliant with: IEC60252-1:2001, GB/T 3667.1-2005, RoHS
- Insulation resistance > 3000Mohm
- Loss Tg<+0.002 for (50...100Hz)
- Gross weight: 0.02 kg
