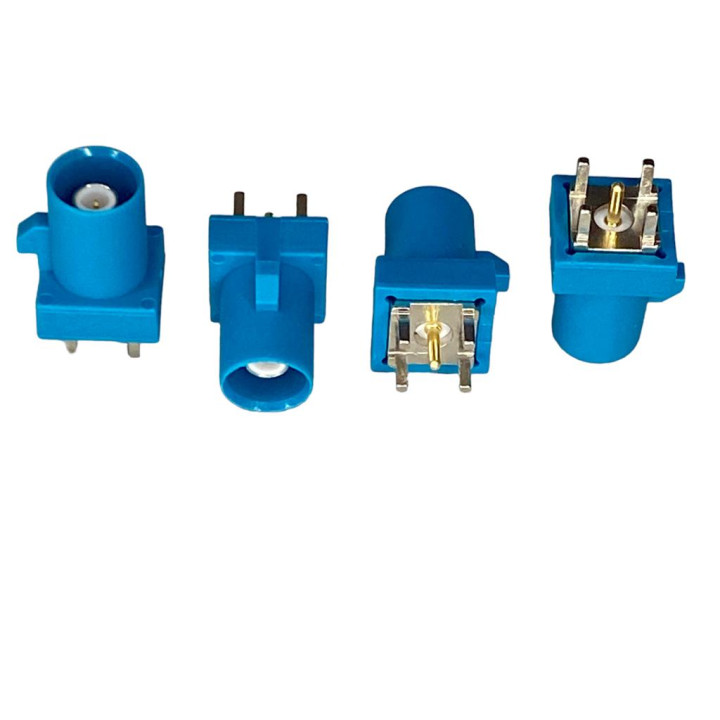

FAKRA PCB CODE plug - Z straight
Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.
To pay for the purchase of a product in excess of its current status, we will provide you with:
- product reservation and guarantee,
- a guarantee of the price from the date of payment of the order.
FAKRA PCB plug RG316 CODE-Z simple
High frequency coaxial connectors SMB is additionally equipped with a plastic cover, which polarizes (encodes) the connector according to the industry standard FAKRA.
The FAKRA standard was created mainly for the needs of the automotive industry technologies used: RF signals GPS, GSM, radio (AM, FM, DAB) which does not limit the use of connectors in other applications.
TECHNICAL SPECIFICATIONS:
- Manufacturer: MOLEX
- Type connectors: FAKRA II SMB
- Type: concentric
- Connector: plug male
- Wave impedance: concentric
- Assembly method: THT soldered to PCB
- Maximum operating voltage: 335V
- Operating temperature: -40°C ~ 105°C
The FAKRA standard distinguishes thirteen mechanical keys coded with large letters, which are available related to color coding
(letters A - Black, B - Cream, C - Navy blue, D - Violet, E - Green leaf, F - Brown, G - Gray, H - Pink I - Beige, K - Curry, L - Carmine, M - Orange, N - Green, Z - Blue marine).
Codes, thus enabling easy identification and unique coding with a mechanical key which prevents incorrect matching. IN The FAKRA standard provides for one neutral key.
