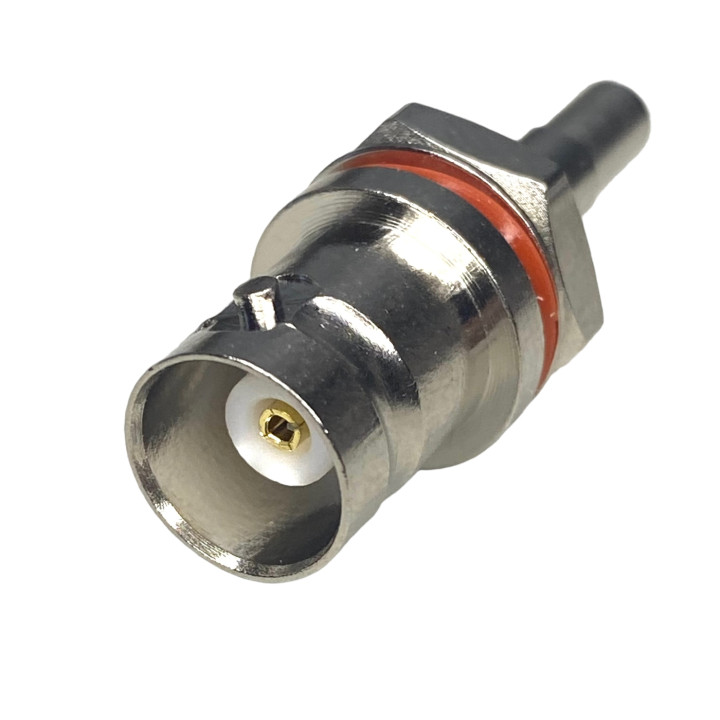

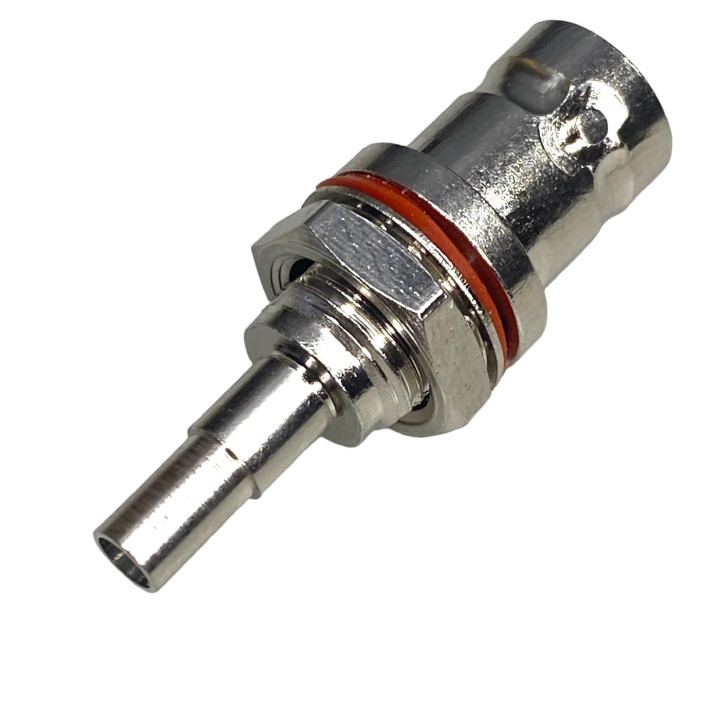

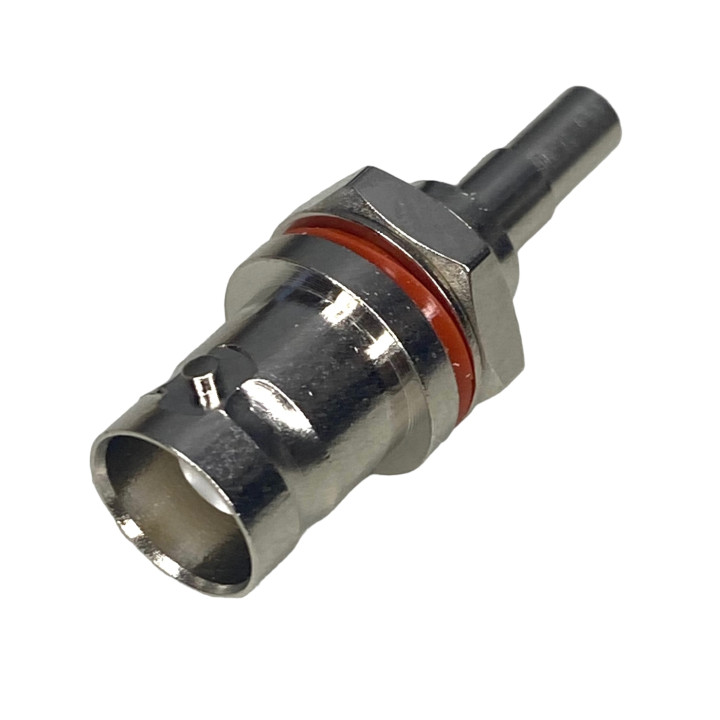

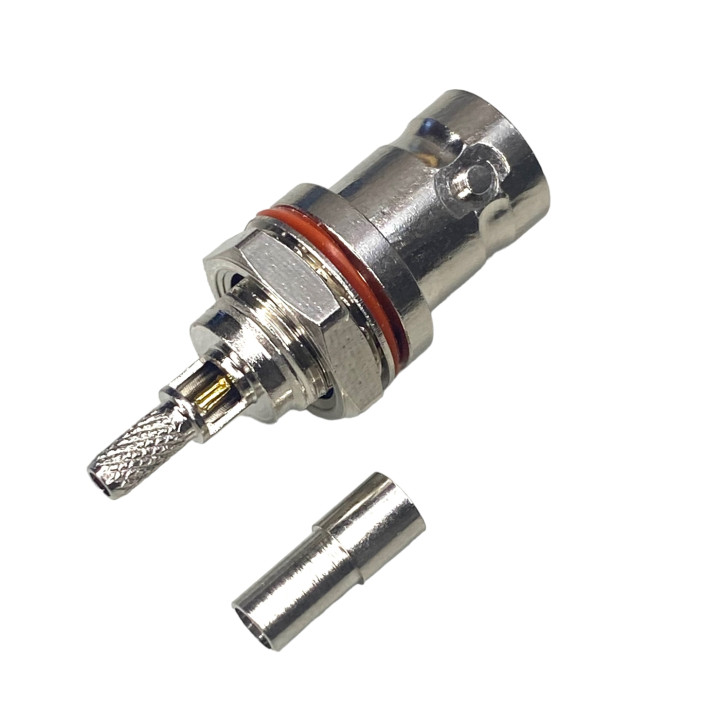

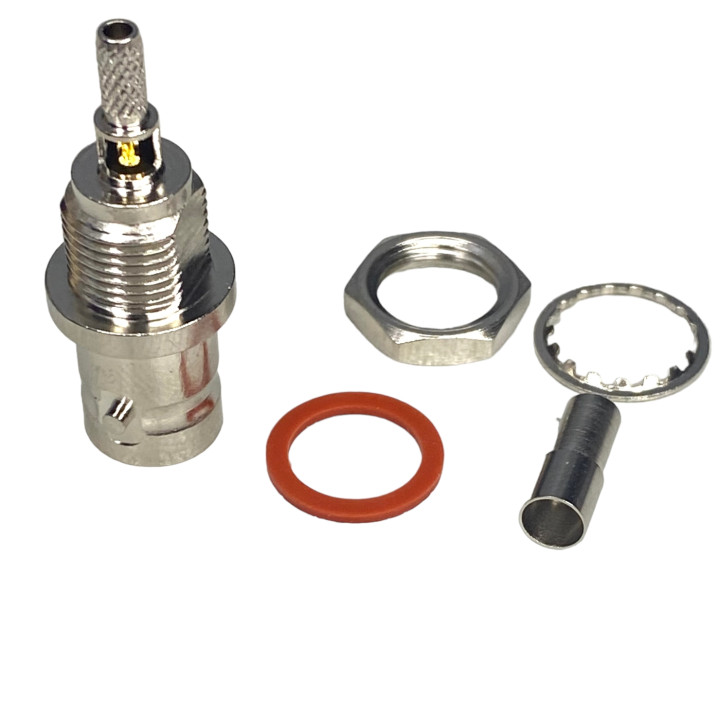

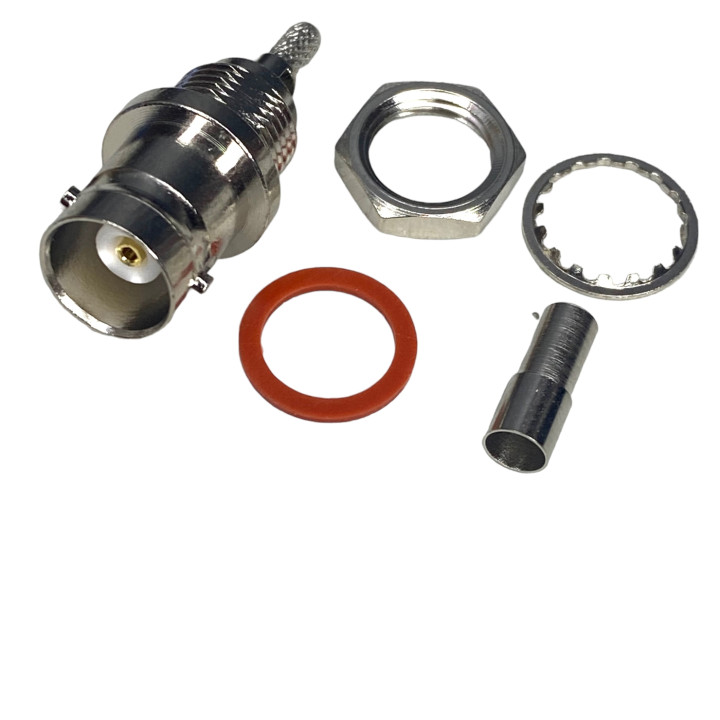

BNC socket connector for RG174 HQ cable

BNC socket connector on RG174 cable crimp with pin soldering window

The connector has a fixed PIN with a soldering window.

The innovative solution offers a number of benefits:

• simpler and faster assembly,
• significantly reduces the risk of the PIN shorting with the housing when "pulled out" cable due to its retraction.
• significantly reduces the risk of short-circuiting the PIN with the housing when mounting the PIN due to the excess price when soldering the signal wire
• it is impossible to withdraw the PIN

SPECIFICATION:

Connector type: BNC plug Connector type: female socket Wave impedance: 50Ω Orientation spatial cable connector: easy Assembly electric: screen crimped, soldered pin Covering contact: gold plated Assembly mechanical: on cable Type cable: RG174, LMR100, RG188, RG188(A), RG316 and others
