WiFi antenna 2.4GHz Omnidirectional SMA 6dBi WHITE
Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.
To pay for the purchase of a product in excess of its current status, we will provide you with:
- product reservation and guarantee,
- a guarantee of the price from the date of payment of the order.
size="4"> WiFi antenna 2.4 GHz - 6 dBi Omnidirectional SMA WHITE

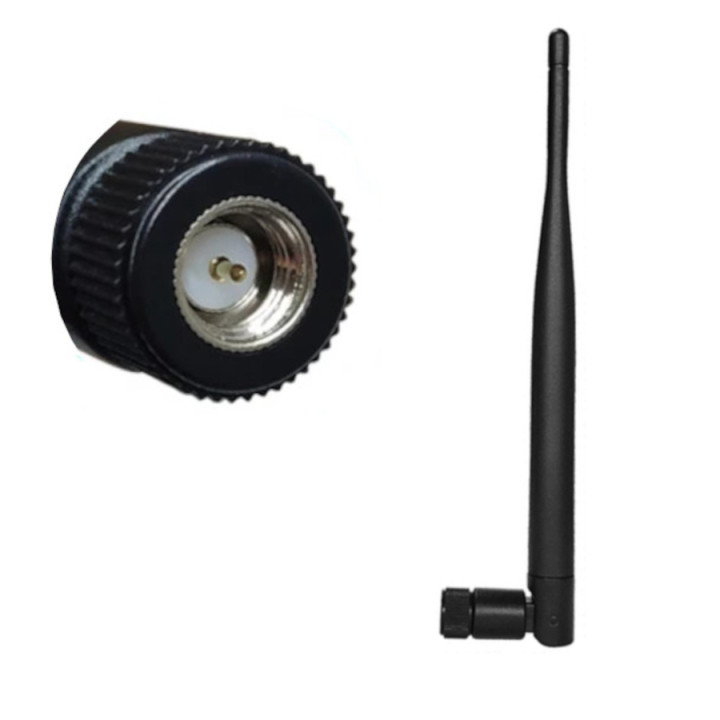

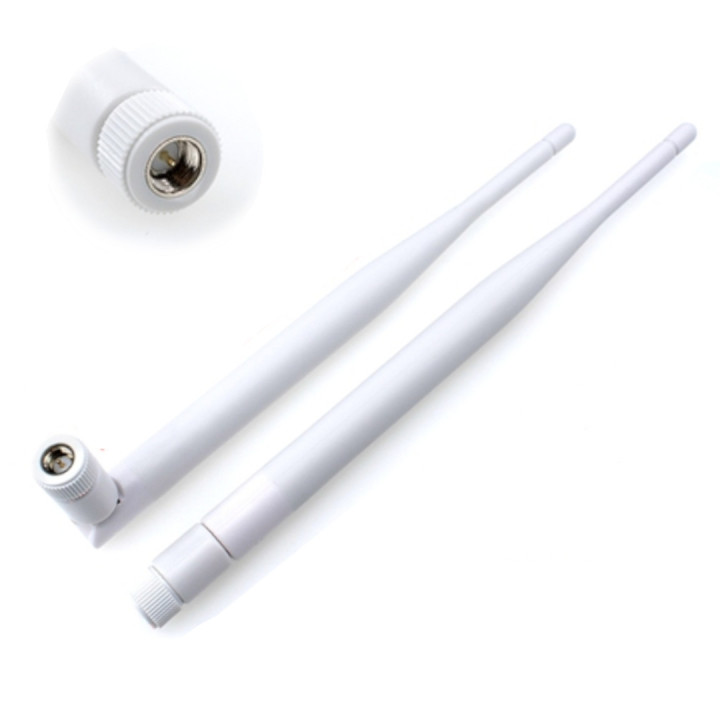

Offer concerns the white antenna, photos of the black antenna are used to show it better shape and dimensions
ATTENTION:
Yeah the antenna IS NOT INTENDED FOR WiFi NETWORK DEVICES - router, network card, access point
face="Arial">!!! please verify your socket in your device with the photo!!!
For the antenna to work with WiFi network devices (routers, access points) must be equipped with SMA-RP plug.
APPLICATION:
- truly intelligent home,
- garage door control systems,
- alarm detectors,
- cameras,
- drones,
- remotely controlled devices,
- temperature controllers,
- radioline,
- telemetry,
- and other
Leading the antenna outside the housing device or room significantly improves range and stability data transmission.
SPECIFICATION:
- Frequency: 2.4 GHz ,
- Bluetooth communication,

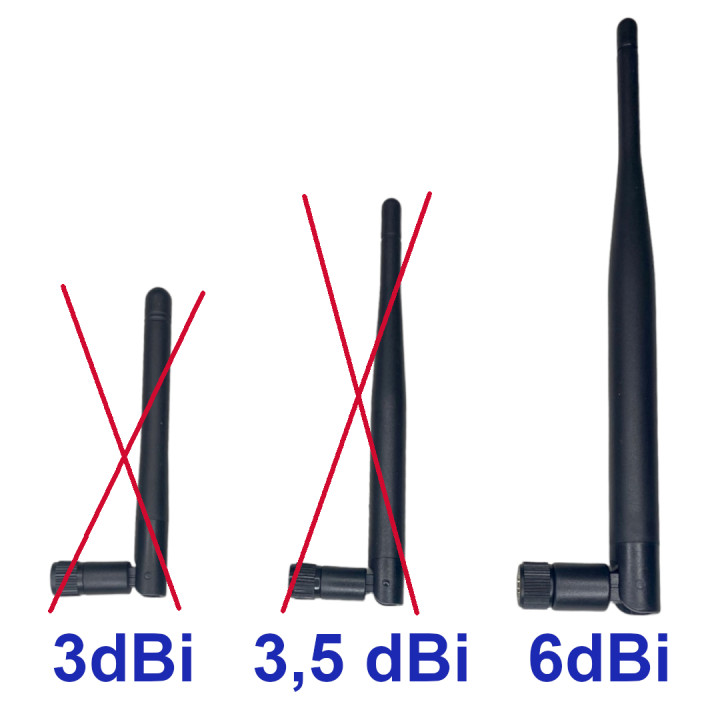

- Antenna energy gain: 6 dBi , Omni-directional
- Impedance: 50 Ω ,
- Polarization: linear ,
- Operating temperature: -40...85 °C ,
- Installation: connectors,
- Connector type: SMA plug ,

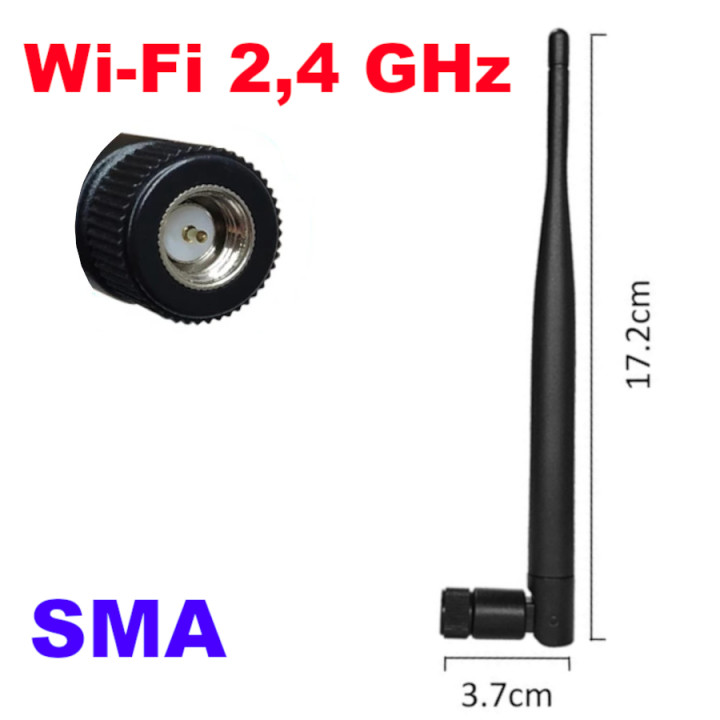

- Total length of the antenna : 204 mm ,
- Antenna length up to hinge: 172 mm ,
- Antenna diameter: 13.5mm .
- Color: WHITE
OFFER DETAILS:
- new product,
- the offer applies to 1 pcs.
If you need to connect the antenna to the RF module with connector, U.FL or MHF4, you will find pigtails in our offer connection:
- Pigtail U.FL (IPEX) - SMA FEMALE from 5 to 80cm
- Pigtail MHF4 (IPEX) - SMA FEMALE from 5 to 80cm
- Pigtail MHF4 (IPEX) - FEMALE SMA from 5 up to 80cm
