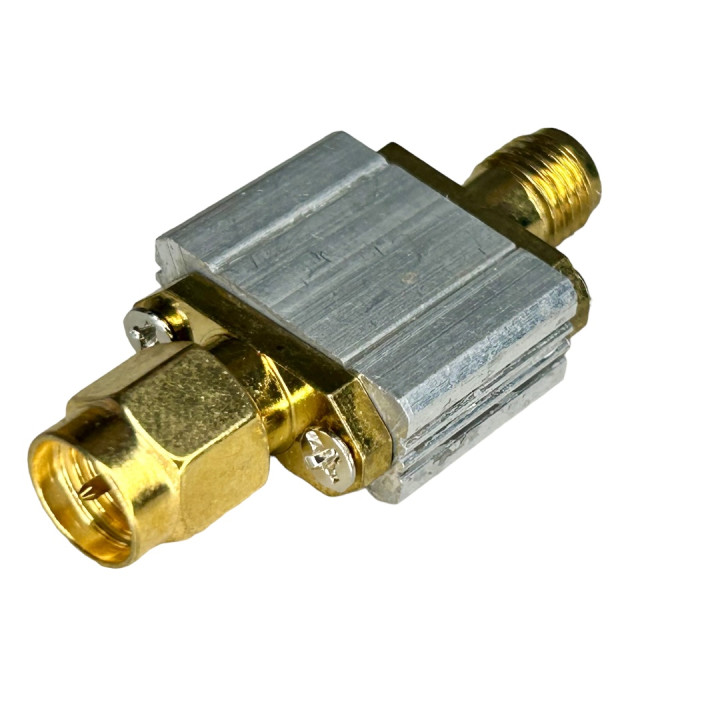

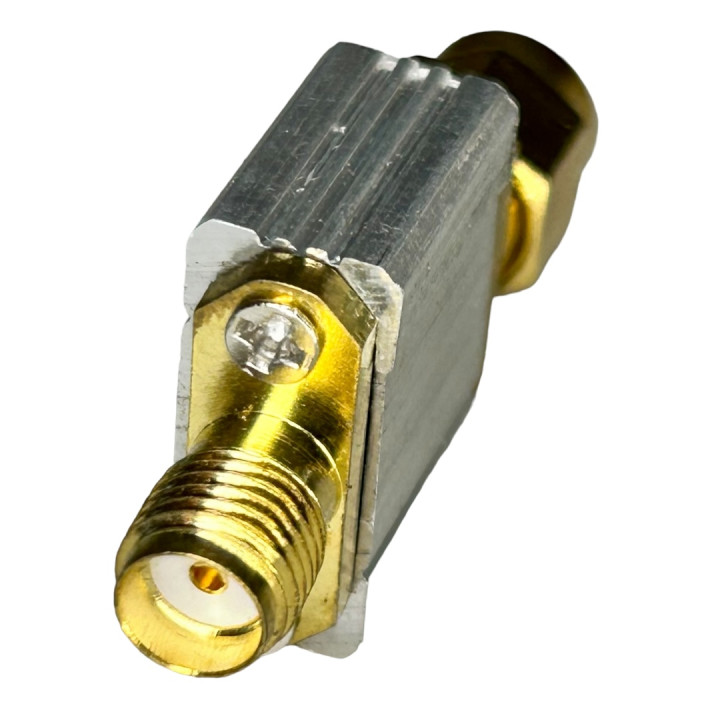

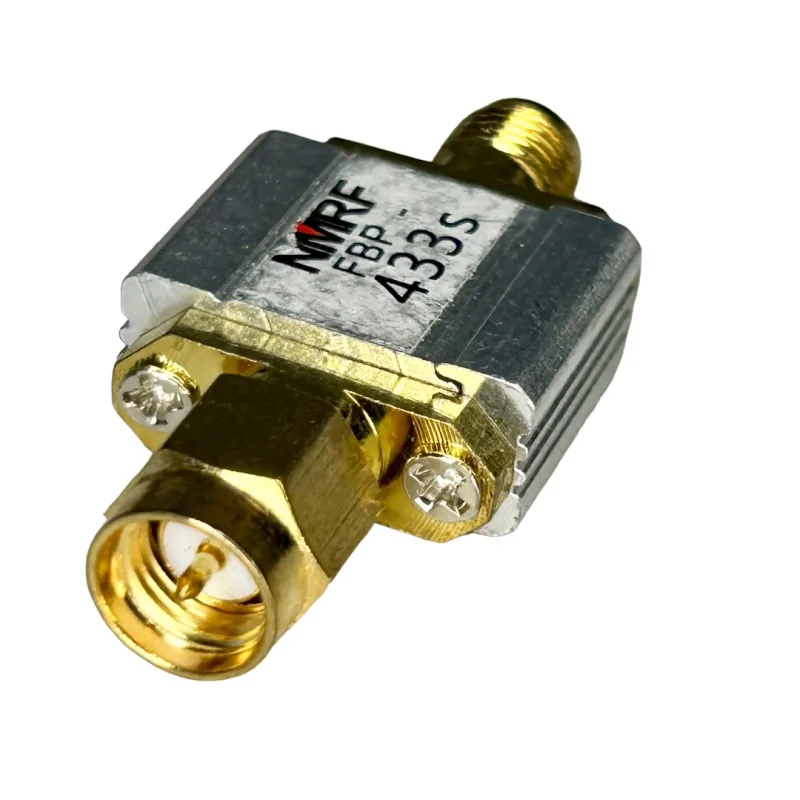

433MHZ Bandpass Filter SMA Plug / SMA Socket v1

Name: 433MHZ Bandpass Filter SMA Plug / SMA Socket v1
Brand: RF CONNECTORS
SKU: FILTR 433MHZ
Price: 159.83 PLN
Availability: InStock

Brutto: zł159.83

Netto: 129.94 PLN

Czas wysyłki 1-2 dni robocze

Product in permanent offer.
In the event of a temporary shortage or demand for more, the delivery time is 5-10 working days.

In stock 9 Items

Quantity

Delivery of goods

Returns of goods

Description
Product Details

FBP-433s 2m band 433 MHz bandpass filter.

style="outline: 0px; box-sizing: border-box; -webkit-tap-highlight-color: transparent;"> style="outline: 0px; box-sizing: border-box; -webkit-tap-highlight-color: transparent;"> face="Arial">Ceramic bandpass filter pass-through allows the 433 MHz band to pass, at the same time it suppresses signals beyond that band.

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">The 433 MHz band is widely used in many different applications ranging from home automation and IoT systems to telemetry systems, monitoring and, less frequently, amateur radio communication.

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Good propagation properties, low power consumption and widespread availability make it a popular band for many applications wireless. However, potential interference and limited bandwidth can be a challenge in some scenarios.

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial"> Specification:

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial"> Model: FBP-433s.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Impedance : 50 ohm.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial"> Center Frequency / Bandwidth: 433 MHz / 24MHz.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Band: 422 ...446 MHz @3dB.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial"> Insertion Loss in Band: <1.8 dB.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Power transfer: 100mW (20dBm)
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Connector 1: SMA plug.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Connector 2: SMA socket.
