1090MHz Bandpass Filter SMA Plug / SMA Socket v1
search
  • 1090MHz Bandpass Filter SMA Plug / SMA Socket v1
  • 1090MHz Bandpass Filter SMA Plug / SMA Socket v1
  • 1090MHz Bandpass Filter SMA Plug / SMA Socket v1
  • 1090MHz Bandpass Filter SMA Plug / SMA Socket v1

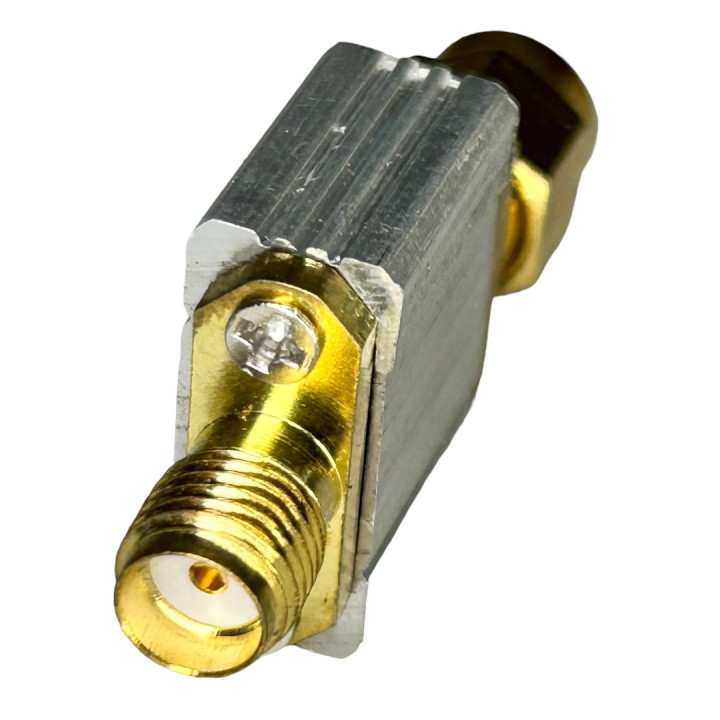

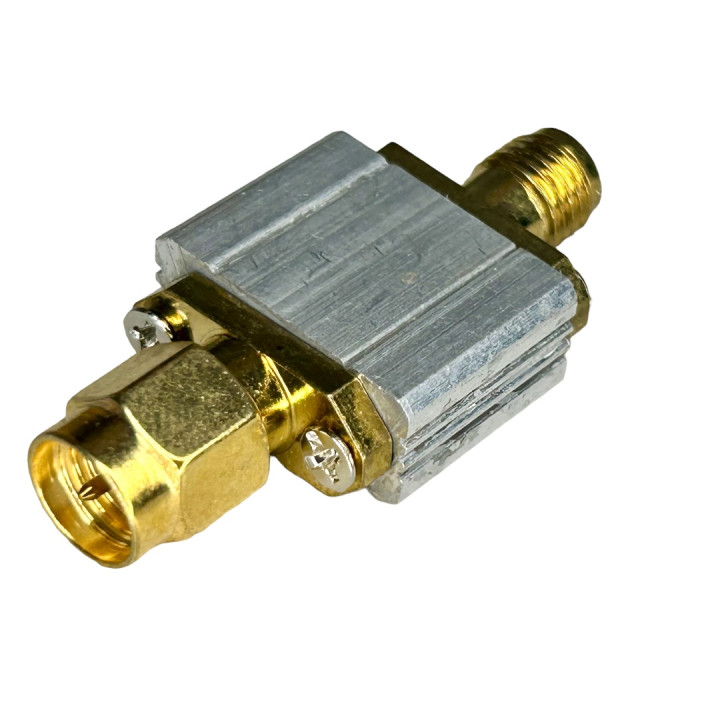

1090MHz Bandpass Filter SMA Plug / SMA Socket v1

Brutto: zł159.83
Netto: 129.94 PLN
Czas wysyłki 1-2 dni robocze
done   Product in permanent offer.
In the event of a temporary shortage or demand for more, the delivery time is 5-10 working days.
   In stock   10 Items
Quantity



Privacy Policy



Delivery of goods



Returns of goods

style="outline: 0px; box-sizing: border-box; -webkit-tap-highlight-color: transparent;"> style= "outline: 0px; box-sizing: border-box; -webkit-tap-highlight-color: transparent;"> size="3"> size="4">FBP-1090S ADS-B band 1090 bandpass filter MHz.
style="outline: 0px; box-sizing: border-box; -webkit-tap-highlight-color: transparent;"> style= "outline: 0px; box-sizing: border-box; -webkit-tap-highlight-color: transparent;">
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Ceramic bandpass filter passes the band 1090MHz, while suppressing signals outside this band.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial"> ADS-B (Automatic Dependent Surveillance-Broadcast) Technology used in aviation to track and monitor traffic aviation. Except for the USA, ADS-B operates in the UHF band at 1090 MHz.
Using this filter significantly improves the range and quality of received signals. ADS-B packets.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> Specification:

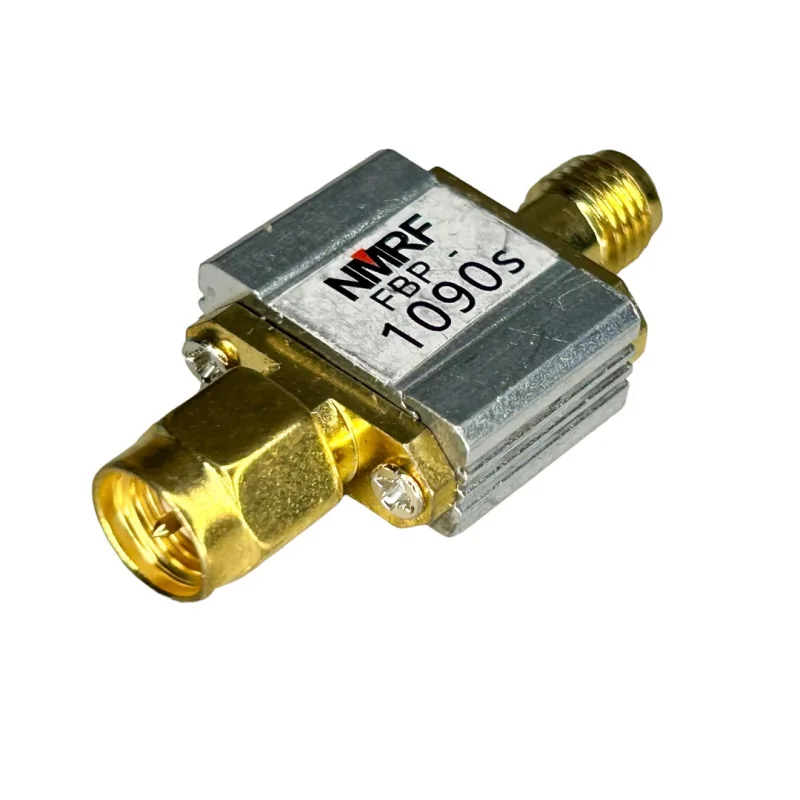

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial"> Model: FBP-1090s.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Impedance : 50 ohm.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial"> Center Frequency / Bandwidth: 1090 MHz / 25MHz.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Band: 1078.5 to ...1102.5 MHz.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Insertion loss in band: <2.2 dB.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Transfer Power: 200 mW (23dBm)
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Connector 1: SMA plug.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Connector 2: SMA socket.
RF CONNECTORS
FILTR 1090MHZ
10 Items

Data sheet

Złącze 1
SMA
Złącze 2
SMA
Rabat
NIE
