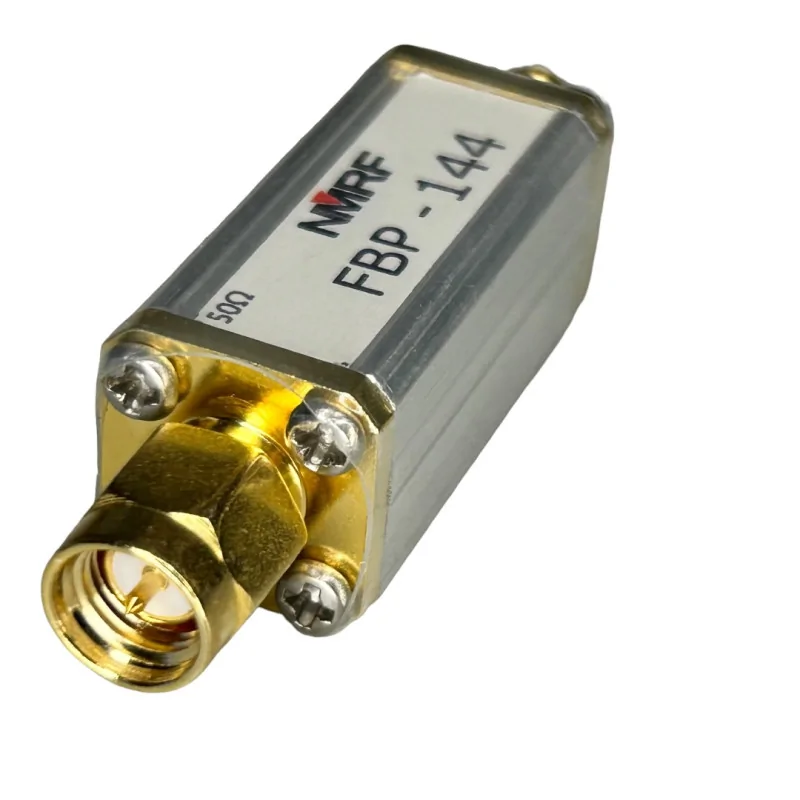

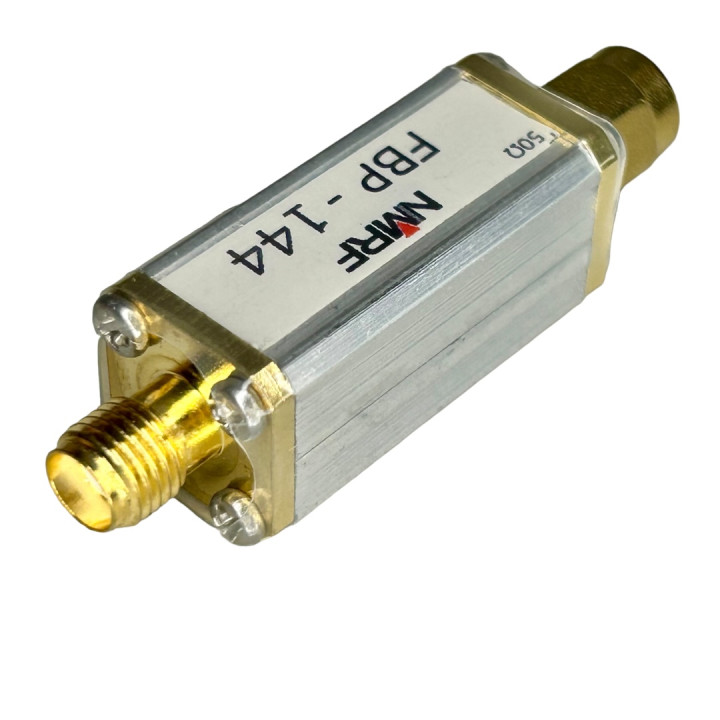

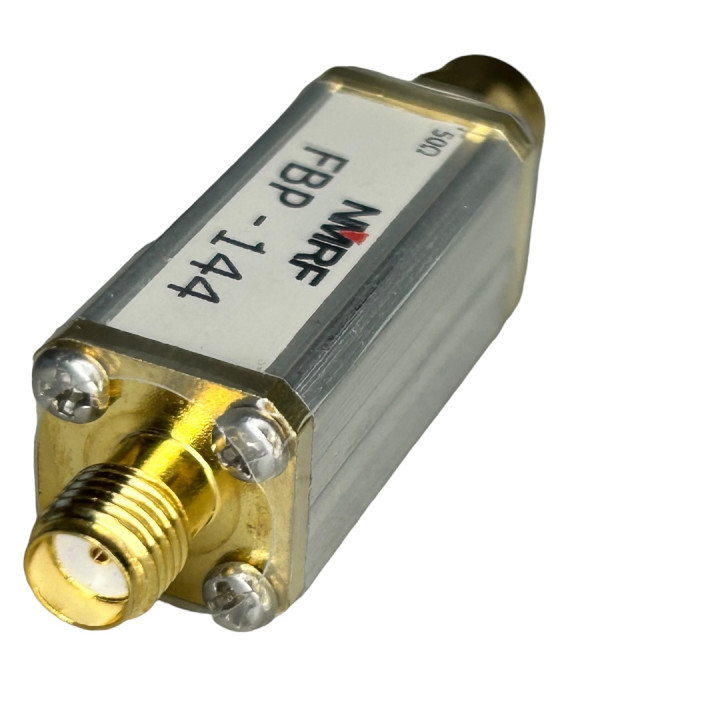

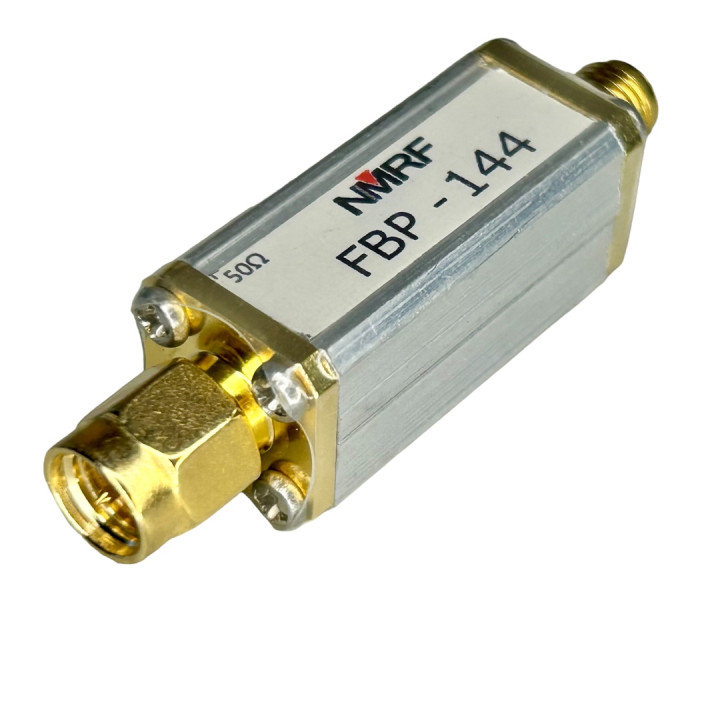

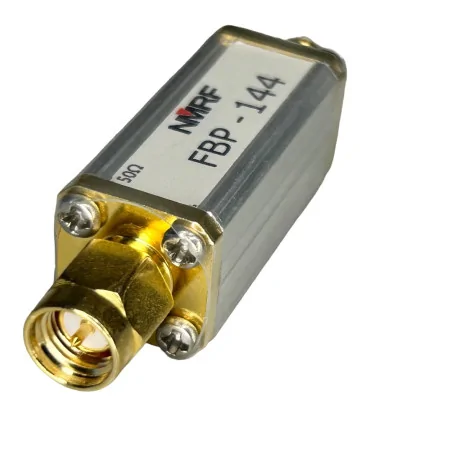

144MHz Bandpass Filter SMA Plug / SMA Socket v1

Name: 144MHz Bandpass Filter SMA Plug / SMA Socket v1
Brand: RF CONNECTORS
SKU: FILTR 144MHZ
Price: 441.32 PLN
Availability: InStock

Brutto: zł441.32

Netto: 358.8 PLN

Czas wysyłki 1-2 dni robocze

Product in permanent offer.
In the event of a temporary shortage or demand for more, the delivery time is 5-10 working days.

In stock 5 Items

Quantity

Delivery of goods

Returns of goods

Description
Product Details

style="outline: 0px; box-sizing: border-box; -webkit-tap-highlight-color: transparent;">

style="outline: 0px; box-sizing: border-box; -webkit-tap-highlight-color: transparent;"> style="outline: 0px; box-sizing: border-box; -webkit-tap-highlight- color: transparent;"> style="outline: 0px; box-sizing: border-box; -webkit-tap-highlight-color: transparent;"> style= "outline: 0px; box-sizing: border-box; -webkit-tap-highlight-color: transparent;"> size="3"> size="4">FBP-144s 2m band filter banded

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> style="outline: 0px; box-sizing: border-box; -webkit-tap-highlight-color: transparent;"> style= "outline: 0px; box-sizing: border-box; -webkit-tap-highlight-color: transparent;">

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">The ceramic bandpass filter passes a band of 144 MHz , while suppressing signals outside this band.

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi">144 MHz band (2-meter) VHF is a key resource for amateur radio communications, emergency services, and various industrial and commercial applications.

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi">Thanks to your propagation properties (large range and resistance to interference) and accessibility, it is ideal for local and regional communication, offering at the same time good transmission parameters and reliability.

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> Specification:

data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial"> Model: FBP-144s.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Impedance : 50 ohm.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial"> Center Frequency / Bandwidth: 144 MHz / 30MHz.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Band: 127 ...157 MHz @3dB.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial"> Band: 105 ...200 MHz @30dB.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial"> Insertion Loss in Band: <2.8 dB.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Power transfer: 3 W (35dBm)
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Connector 1: SMA plug.
data-spm-anchor-id="a2g0o.detail.1000023.i0.4c6b0qpP0qpPfi"> face="Arial">Connector 2: SMA socket.
