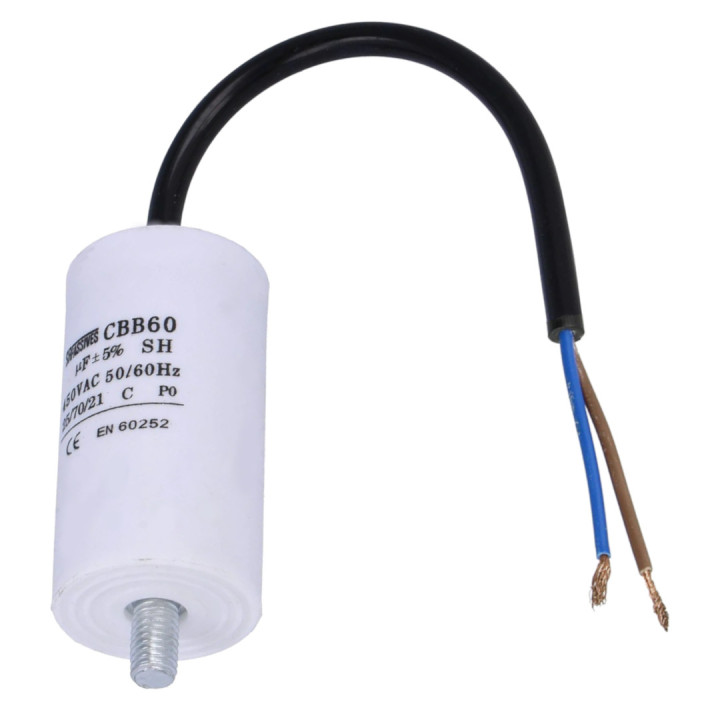

Motor capacitor STARTING WORK 2.5uF /450V

ENGINE CAPACITOR 2.5uF/450V WORK WITH SR-PASSIVES CABLES

***Down capacitors with wires can be ordered for an ADDITIONAL CHARGE ends shown in photos - details at the end of the description.

After When selecting a capacitor, you should choose an offer whose title starts with " Surcharge end... " and add to cart.

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Are used in:

• mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

TECHNICAL SPECIFICATION

• Manufacturer SR Passives
• Capacitor type: polypropylene
• Application of capacitors for motors, work
• Capacitance 2.5µF
• Operating voltage 450V
• Body dimensions Ø35 x 60mm
• Operating temperature -25...70°C
• Tolerance ±5%
• Climate category 25/70/21
• Lifespan 3000h
• Outputs CABLES

Capacity selection:

You should always be guided by the documentation and the status found in device. The important information is that you can always increase the capacity ( max by 20%) compared to the damaged one. Too much capacity causes decrease in engine speed and power (actually a decrease in torque rotational). Too small capacity causes the engine to have problems with start-up.

Symptoms of capacitor damage:

• optical inspection - external melting in the form of gray "lava" ++
• auditory inspection - the engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine capacitor failure, but this may not be the only fault in the system drive.

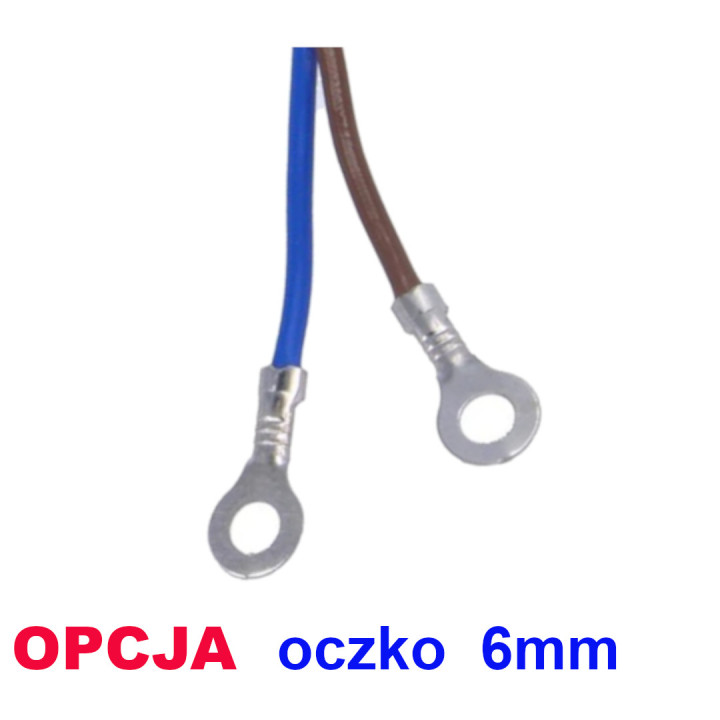

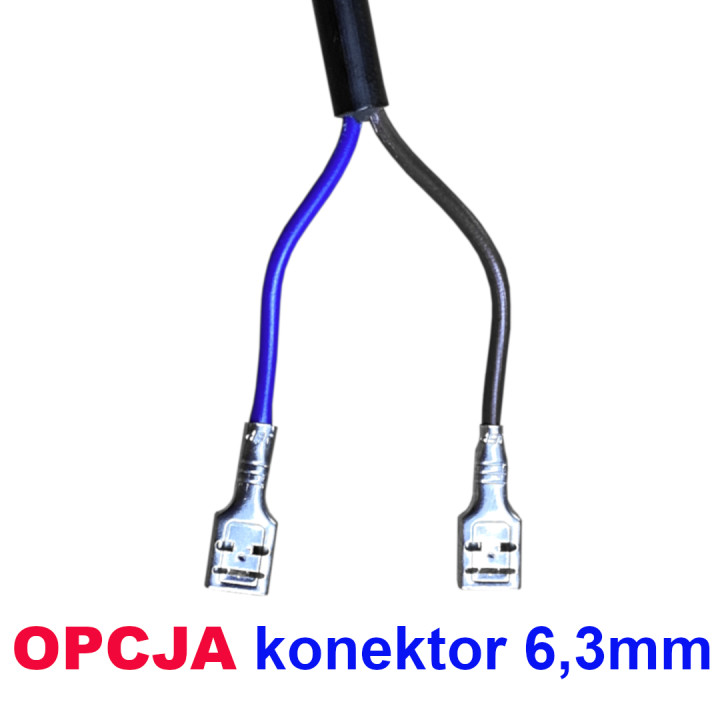

***Additional tip assembly:

After selecting the capacitor, you need to choose the offer that you want title begins "Tip Surcharge..."

If you order several capacitors, please include them in the comments. to order (please avoid a separate message) please write to which capacitors, which terminals.
