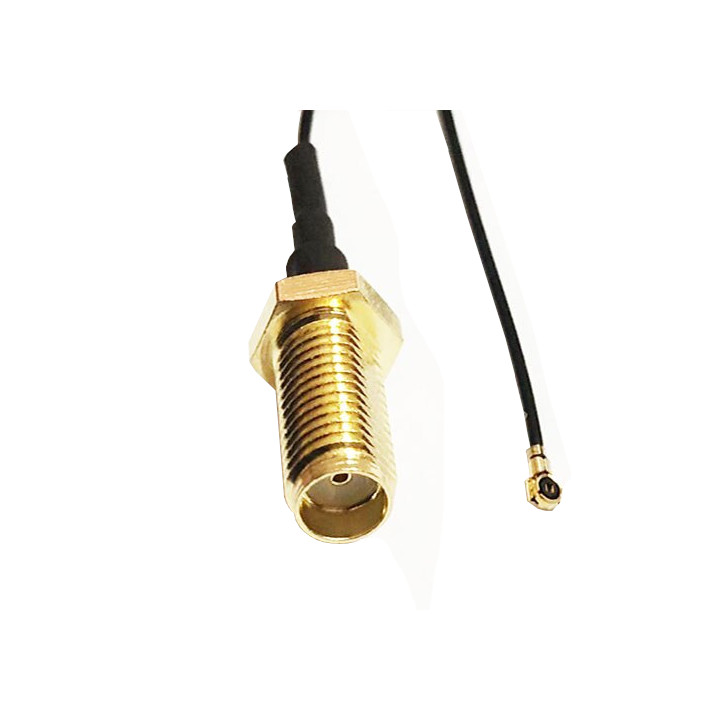

Pigtail MHF4 female plug - SMA socket RF0.81 1m

Name: Pigtail MHF4 female plug - SMA socket RF0.81 1m
Brand: RF CONNECTORS
SKU: PT_MHF4 / SMA FFM1
Price: 25.72 PLN
Availability: InStock

Brutto: zł25.72

Netto: 20.91 PLN

Czas wysyłki 1-2 dni robocze

Volume discounts

Quantity	Unit price	You Save
6	zł25.72	zł6.17
16	zł25.72	zł28.81
31	zł25.72	zł79.74
51	zł25.72	zł170.54
100	zł25.72	zł411.57
200	zł25.72	zł1,028.93
300	zł25.72	zł1,852.07
500	zł25.72	zł3,601.25

Product in permanent offer.
In the event of a temporary shortage or demand for more, the delivery time is 5-10 working days.

In stock 282 Items

Quantity

Delivery of goods

Returns of goods

Description
Product Details

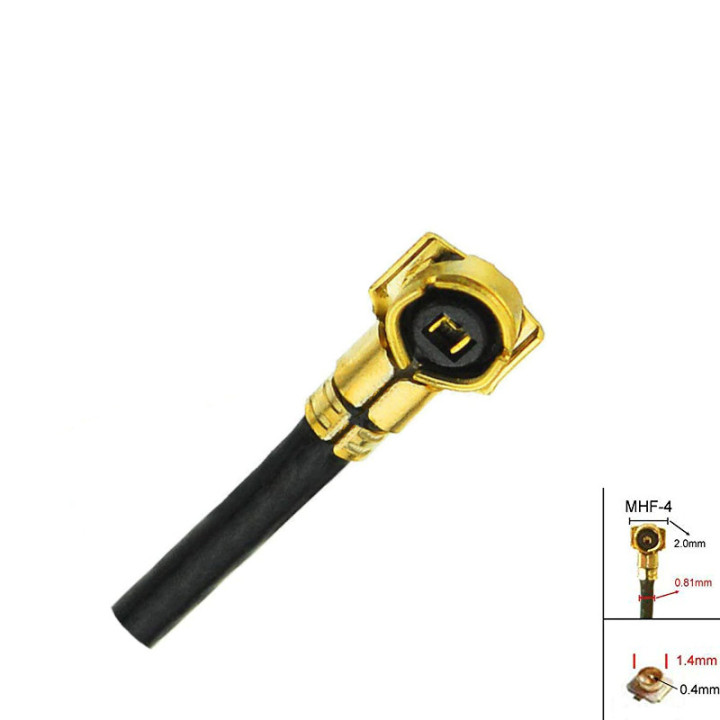

MHF4 IPX IPEX adapter - FEMALE SMA 100cm

Pigtail (adapter, connector) is used to connect antennas with SMA connector RF module which has MHF4 type antenna socket IPX IPEX.

SPECIFICATION:

product type: RF pigtail (connector w.cz) CONNECTOR 1: MHF4 IPX IPEX plug face="Arial"> CONNECTOR 2: SMA socket face="Arial"> cable: TYPE 0.81mm face="Arial"> wave impedance: 50 ohm face="Arial"> product length: 100cm

INFORMATION ABOUT THE OFFER:

The offer applies to 1 piece of the product

ATTENTION:

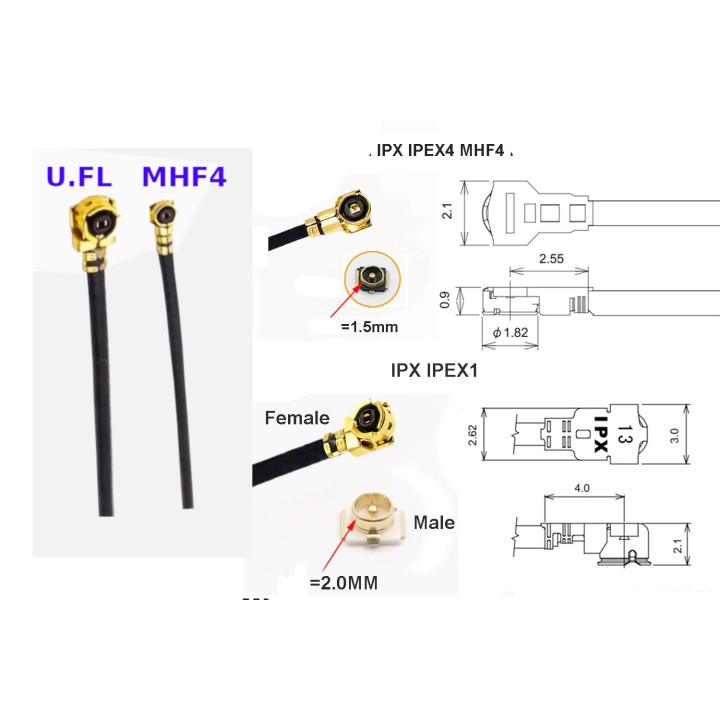

The MHF4 connector (IPX IPEX 4th generation) is definitely smaller than the most popular U.FL connector. Please see the graphic at the end of the auction, which explains the differences between MHF4 vs. U.FL

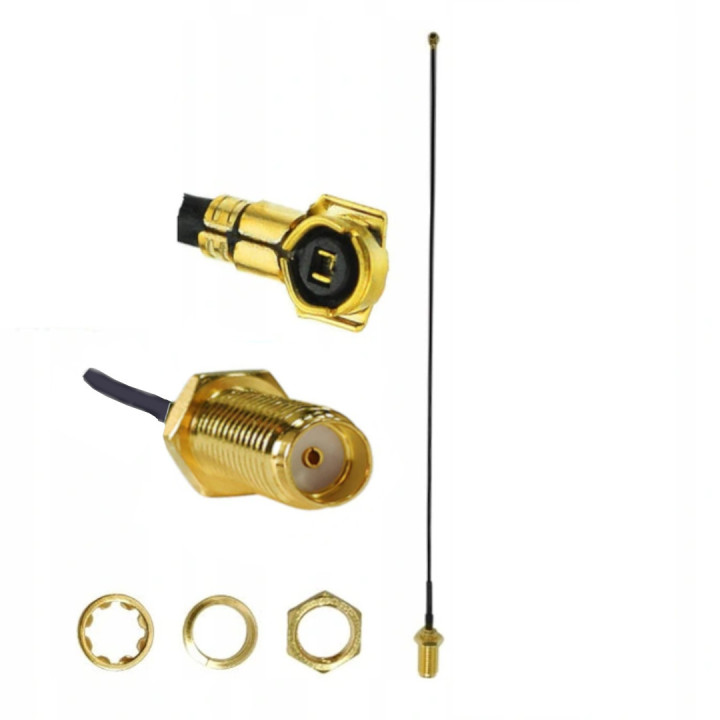

Additional photos show examples of use: ( antenna and module are not an offer for sale)

Brand RF CONNECTORS

Reference PT_MHF4 / SMA FFM1

In stock 282 Items

Data sheet
