RF antenna pigtails and cables (fiders)

We are a manufacturer of RF cables, which we make according to the customer's needs.
For production, we use cables with a diameter of 0.81mm ... 11 mm
e.g. RF0.81, RF1.13, RG178, RG174, RG316 RG58, H155, RF5, RF240, Hyperflex 5, H1000, CNT400, Hyperflex 10 and others.

In the store you will find many predefined types of RF cables in various combinations of connectors and lengths.

If you haven't found the cable pattern you need, please contact us:
by phone +48 882 953 094 or email [email protected]

ATTENTION:
Cables manufactured in this category are not returnable.

Pigtail MHF4 female plug SMA socket 0.81 20cm

Name: Pigtail MHF4 female plug SMA socket 0.81 20cm
Brand: RF CONNECTORS
SKU: PT_MHF4 / SMA90FF20
Price: 19.56 PLN
Availability: InStock

Brutto: zł19.56

Netto: 15.9 PLN

Czas wysyłki 1-2 dni robocze

In stock 214 Items

Gwarancja ceny

W związku z dużą ilością zamówień włączyliśmy opcję zamawiania ilości produktów powyżej dostępnego stanu w magazynie.

Opłacenie zakupu produktu powyżej aktualnego stanu zapewni Państwu:

- rezerwację i gwarancję dostawy produktu,
- gwarancję ceny z dnia z opłacenia zamówienia.

Nie ma innej formy rezerwacji produktów

Quantity	Unit price	You save	Total price
1	zł19.56	-	zł19.56
6	zł18.78	Up to zł4.69	zł112.67
16	zł18.19	Up to zł21.91	zł291.06
31	zł17.60	Up to zł60.64	zł545.75
51	zł17.02	Up to zł129.69	zł867.91
100	zł16.43	Up to zł312.97	zł1,643.11
200	zł15.65	Up to zł782.43	zł3,129.73
300	zł14.87	Up to zł1,408.38	zł4,459.86
500	zł14.08	Up to zł2,738.51	zł7,041.89

In stock 214 Items

Quantity

Volume discounts

Quantity	Unit price	You Save
6	zł19.56	zł4.69
16	zł19.56	zł21.91
31	zł19.56	zł60.64
51	zł19.56	zł129.69
100	zł19.56	zł312.97
200	zł19.56	zł782.43
300	zł19.56	zł1,408.38
500	zł19.56	zł2,738.51

Product in permanent offer.
In the event of a temporary shortage or demand for more, the delivery time is 5-10 working days.

Delivery of goods

Returns of goods

Description
Product Details

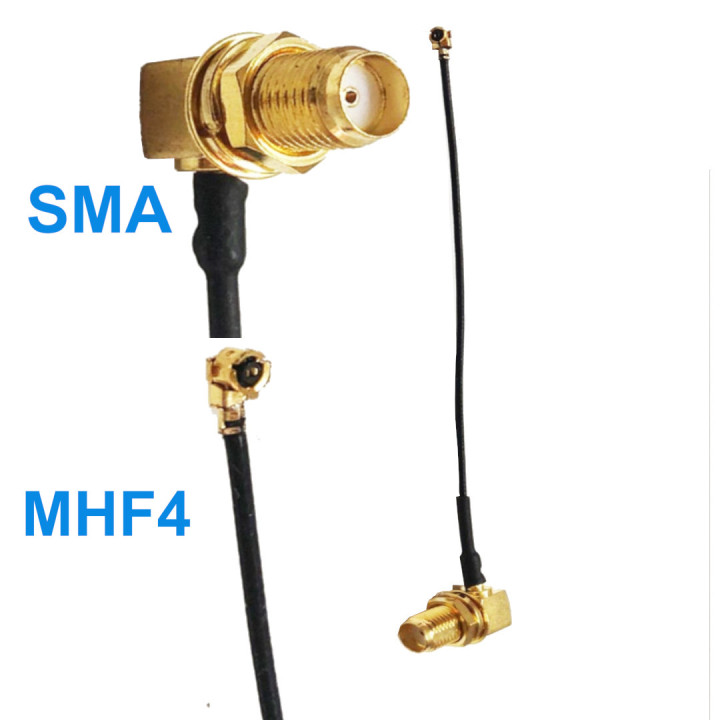

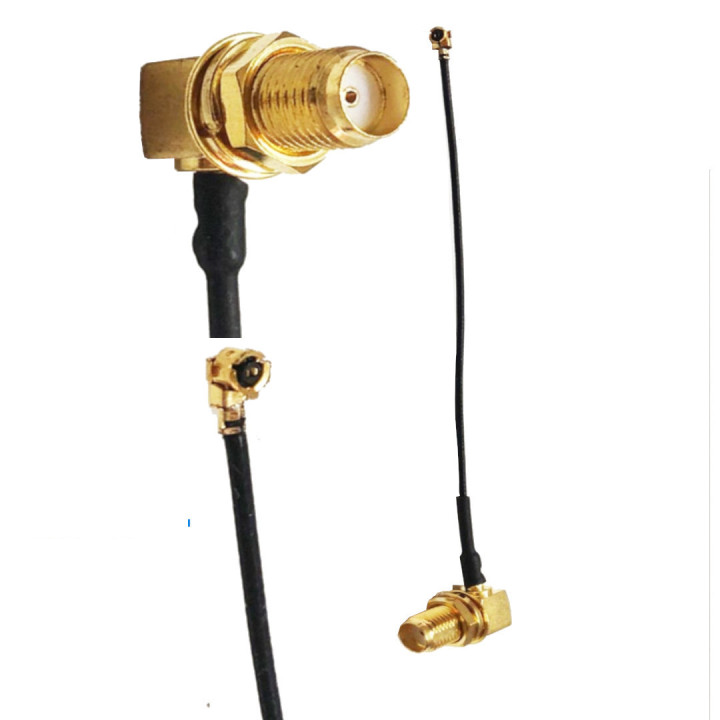

MHF4 adapter IPX4 IPEX - SMA FEMALE ANGLED 20cm

Pigtail (adapter) is used to connect antennas with SMA connector RF module which has U.FL IPX type antenna socket IPEX.

SPECIFICATION:

type product: RF pigtail (RF connector)

CONNECTOR 1: MHF4 IPX4 plug girls

CONNECTOR 2: SMA socket angular

cable : TYPE 0.81mm

wave impedance: 50 ohm

product length: 20cm

ATTENTION:

U.FL connector ( IPX IPEX 1 generation) It is the most popular RF connector among micro connectors. After it, there were subsequent, increasingly smaller RF connections.

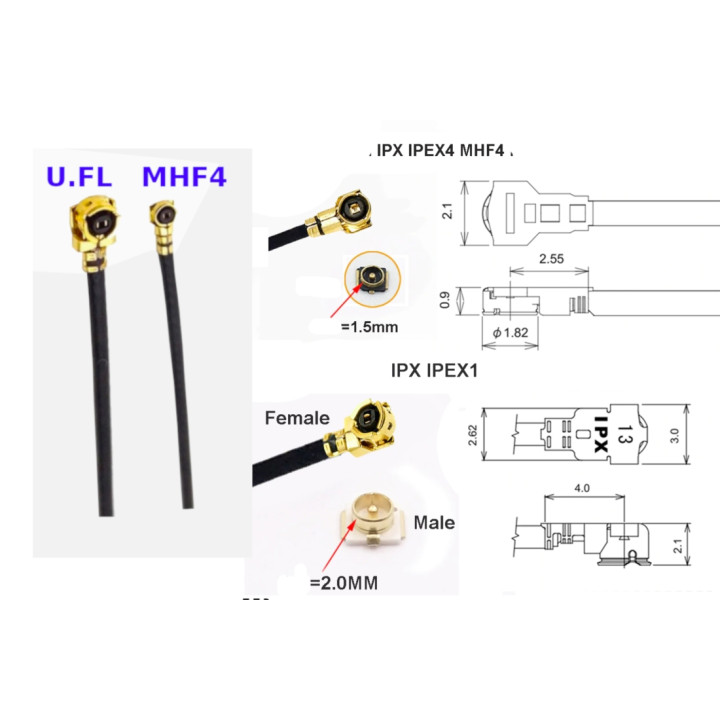

Please read the graphic at the end of the auction that explains the differences between MHF4 vs. U.FL .

Brand RF CONNECTORS

Reference PT_MHF4 / SMA90FF20

In stock 214 Items

Data sheet

Złącze 1: MHF4
Złącze 2: SMA
Kabel: RF0.81
Długość: 20cm
Rabat: TAK

Condition New

Pigtail MHF4 female plug SMA socket 0.81 20cm
