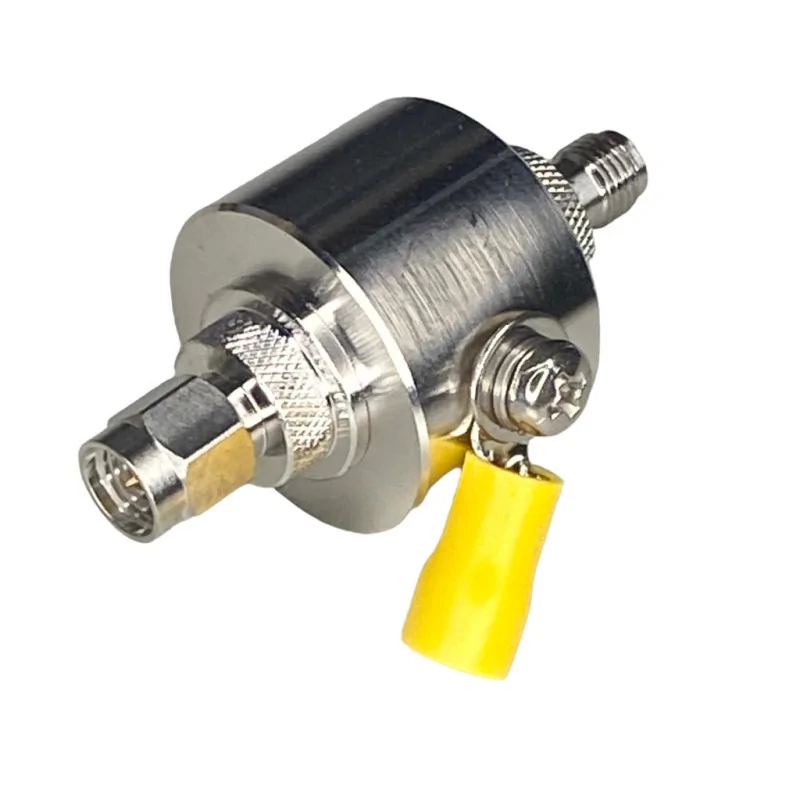

SMA Plug/Socket V1 Surge Protector

Surge protector SMA plug/socket v1

The surge protector is designed to protect or minimizing the effects of phenomena causing overvoltages affecting antenna lines and tracks as well as radio systems and networks telecommunications against the effects of voltage surges.

APPLICATION:

• Antenna installations
• communication equipment

TECHNICAL SPECIFICATIONS:

• type: surge protector,
• connector 1: SMA plug - radio path;
• connector 2: SMA socket - radio path;
• connector 3: screw - ground
• operating limit frequency: DC - 6GHz,
• attenuation: =<0.8dB,
• maximum power transmission: 200W,
• VSWR coefficient: =<1.2,
• Dielectric strength: >=2.5kV RMS, 50Hz - above sea level,
• working voltage: =< 1kV RMS, 50Hz - above the level seas,
• operating range for direct voltage 230 V dc,
• Pulse discharge current (8/20us): 20kA,
• insulation resistance: >= 1000Mom,
• recommended wire cross-section protective:>=8mm2
• operating temperature -40...85 *C
• durability : >=500 cycles
