RF antenna pigtails and cables (fiders)

We are a manufacturer of RF cables, which we make according to the customer's needs.
For production, we use cables with a diameter of 0.81mm ... 11 mm
e.g. RF0.81, RF1.13, RG178, RG174, RG316 RG58, H155, RF5, RF240, Hyperflex 5, H1000, CNT400, Hyperflex 10 and others.

In the store you will find many predefined types of RF cables in various combinations of connectors and lengths.

If you haven't found the cable pattern you need, please contact us:
by phone +48 882 953 094 or email [email protected]

ATTENTION:
Cables manufactured in this category are not returnable.

Pigtail uFL female plug SMA socket RF1.13 40cm

Brutto: zł26.42
Netto: zł21.48
In stock: 473 pcs
Quantity Unit price You Save
6 zł25.36 zł6.34
16 zł24.57 zł29.59
31 zł23.78 zł81.90
51 zł22.99 zł175.17
100 zł22.19 zł422.73
200 zł21.14 zł1,056.83
300 zł20.08 zł1,902.30
500 zł19.02 zł3,698.91
Czas wysyłki 1-2 dni robocze

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Gwarancja ceny

W związku z dużą ilością zamówień włączyliśmy opcję zamawiania ilości produktów powyżej dostępnego stanu w magazynie.

Opłacenie zakupu produktu powyżej aktualnego stanu zapewni Państwu:

- rezerwację i gwarancję dostawy produktu,
- gwarancję ceny z dnia z opłacenia zamówienia.
Nie ma innej formy rezerwacji produktów
done   Produkt w stałej ofercie.
W przypadku chwilowego braku lub zapotrzebowania na większą ilość czas dostawy 5-10 dni roboczych.

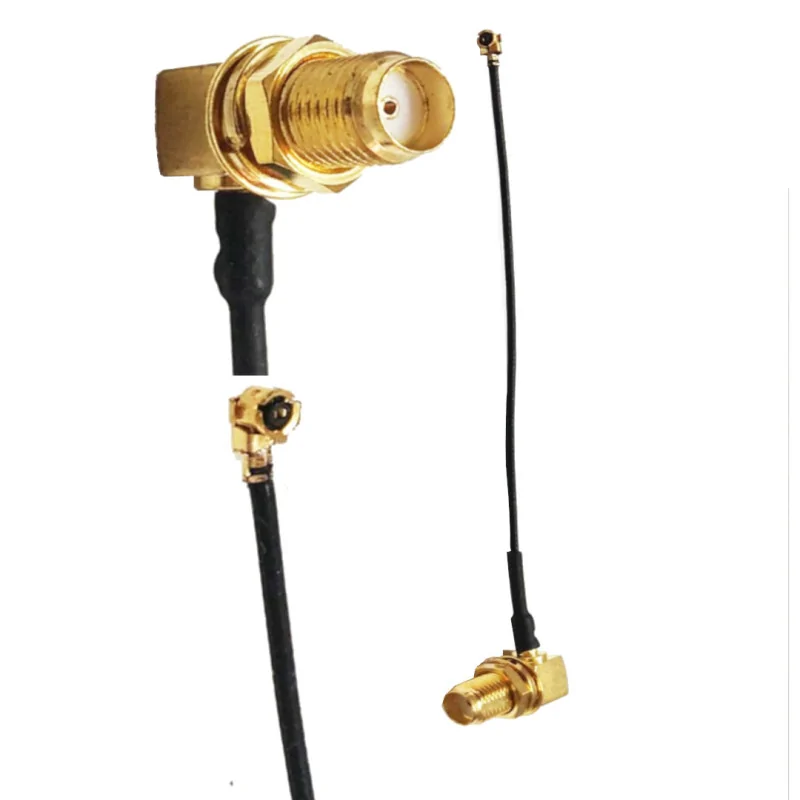

Adapter U.FL IPX1 IPEX - SMA FEMALE ANGLED 40cm

Pigtail (adapter) is used to connect antennas with SMA connector RF module which has U.FL IPX type antenna socket IPEX.



SPECIFICATION:

type product: RF pigtail (RF connector)

CONNECTOR 1: U.FL IPX1 IPEX plug female

CONNECTOR 2: SMA socket angle female

cable : TYPE RF1.13

wave impedance: 50ohm

product length: 40cm

ATTENTION:

U.FL connector ( IPX IPEX 1 generation) It is the most popular RF connector among micro connectors. After it, there were subsequent, increasingly smaller RF connections.

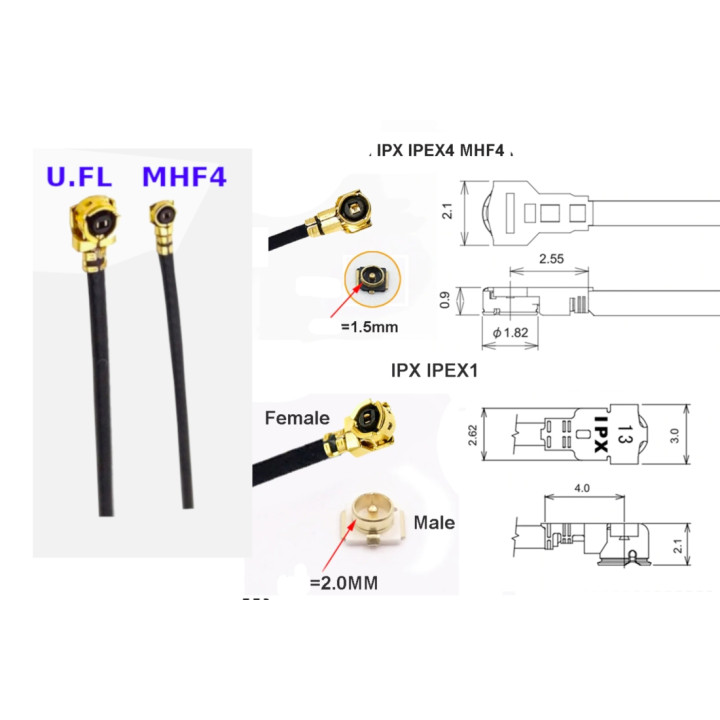

Please read the graphic at the end of the auction that explains the differences between MHF4 vs. U.FL .

  • Brand
    RF CONNECTORS
  • Reference
    PT_UFL / SMA90 FF40
  • In stock
    473 Items
  • Condition
    New
  • EAN13
    5904734563631
