FAKRA plug for RG316 CODE-B cable, straight
Brutto: zł18.90
Netto: 15.37 PLN
Time of delivery 1-2 work days
Price Guarantee
Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.
To pay for the purchase of a product in excess of its current status, we will provide you with:
- product reservation and guarantee,
- a guarantee of the price from the date of payment of the order.
Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.
To pay for the purchase of a product in excess of its current status, we will provide you with:
- product reservation and guarantee,
- a guarantee of the price from the date of payment of the order.
There is no other way to reserve products

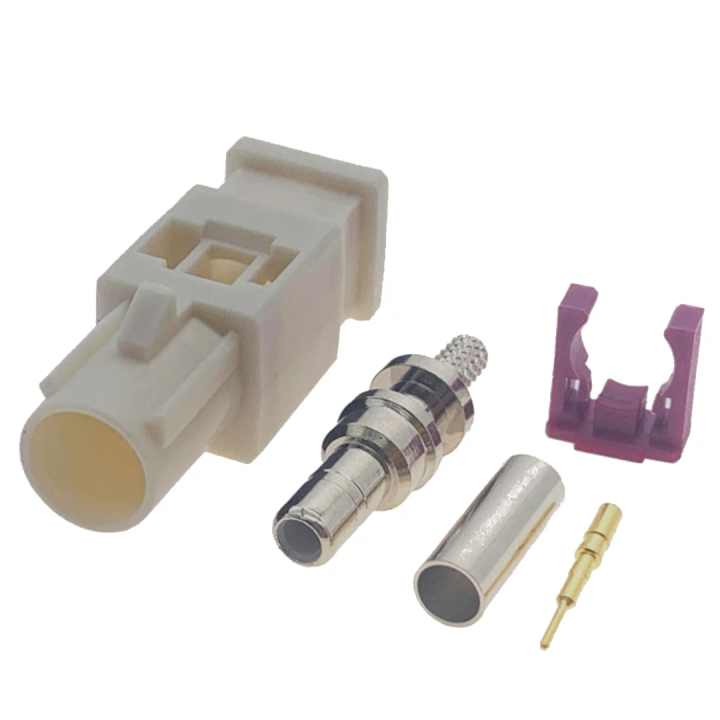

FAKRA SMB male connector for RG316 cable B coding.
High frequency coaxial connectors SMB is additionally equipped with a plastic cover, which polarizes (encodes) the connector according to the industry standard FAKRA.
The FAKRA standard was created mainly for the needs of the automotive industry technologies used: RF signals GPS, GSM, radio (AM, FM, DAB) which does not limit the use of connectors in other applications.
TECHNICAL SPECIFICATIONS:
- Manufacturer: MOLEX
- Type connectors: FAKRA II SMB
- Type: concentric
- Connector: plug male
- Wave impedance: concentric
- Working frequency max.: concentric
- Maximum operating voltage: 335V
- Cable type: RG174, RG316
- Operating temperature: -40°C ~ 105°C
The FAKRA standard distinguishes thirteen mechanical keys coded with large letters, which are available related to color coding.
(letters A - Black, B - Cream, C - Navy blue, D - Violet, E - Green leaf, F - Brown, G - Gray ,H - Pink I - Beige, K - Curry, L - Crimson, M - Orange, N - Green, Z - Blue marine).
Codes, thus enabling easy identification and unique coding with a mechanical key which prevents incorrect matching. IN The FAKRA standard provides for one neutral key.
