RF antenna pigtails and cables (fiders)

We are a manufacturer of RF cables, which we make according to the customer's needs.
For production, we use cables with a diameter of 0.81mm ... 11 mm
e.g. RF0.81, RF1.13, RG178, RG174, RG316 RG58, H155, RF5, RF240, Hyperflex 5, H1000, CNT400, Hyperflex 10 and others.

In the store you will find many predefined types of RF cables in various combinations of connectors and lengths.

If you haven't found the cable pattern you need, please contact us:
by phone +48 882 953 094 or email [email protected]

ATTENTION:
Cables manufactured in this category are not returnable.

Pigtail MHF®-SW23 male / SMA female RG178 20cm

Brutto: zł45.86
Netto: zł37.29
In stock: 64 pcs

Product customization

Długość
Możesz podać krótszą długość niż podana w ofercie, np. 86 cm zamiast 1m. Jeżeli potrzebujesz większej długości (np. 5m zamiast 1m), znajdziesz ją w innym produkcie.
15 char. max
Optional
Quantity Unit price You Save
6 zł44.03 zł11.01
16 zł42.65 zł51.37
31 zł41.28 zł142.18
51 zł39.90 zł304.08
100 zł38.53 zł733.82
200 zł36.69 zł1,834.56
300 zł34.86 zł3,302.21
500 zł33.02 zł6,420.96
Czas wysyłki 1-2 dni robocze

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Gwarancja ceny

W związku z dużą ilością zamówień włączyliśmy opcję zamawiania ilości produktów powyżej dostępnego stanu w magazynie.

Opłacenie zakupu produktu powyżej aktualnego stanu zapewni Państwu:

- rezerwację i gwarancję dostawy produktu,
- gwarancję ceny z dnia z opłacenia zamówienia.
Nie ma innej formy rezerwacji produktów
done   Produkt w stałej ofercie.
W przypadku chwilowego braku lub zapotrzebowania na większą ilość czas dostawy 5-10 dni roboczych.

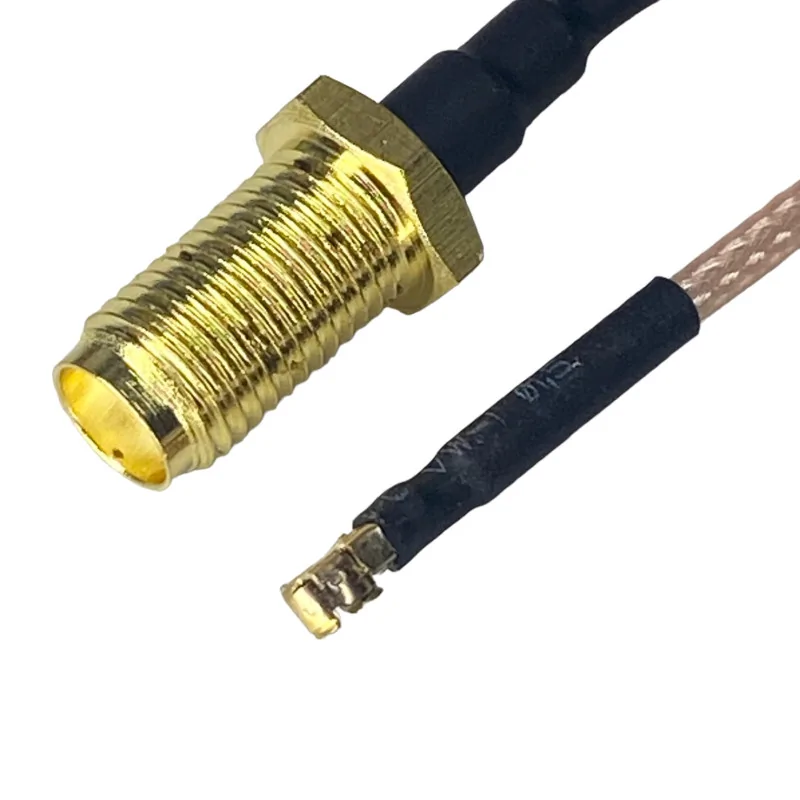

MHF®-SW23 adapter - FEMALE SMA 20cm

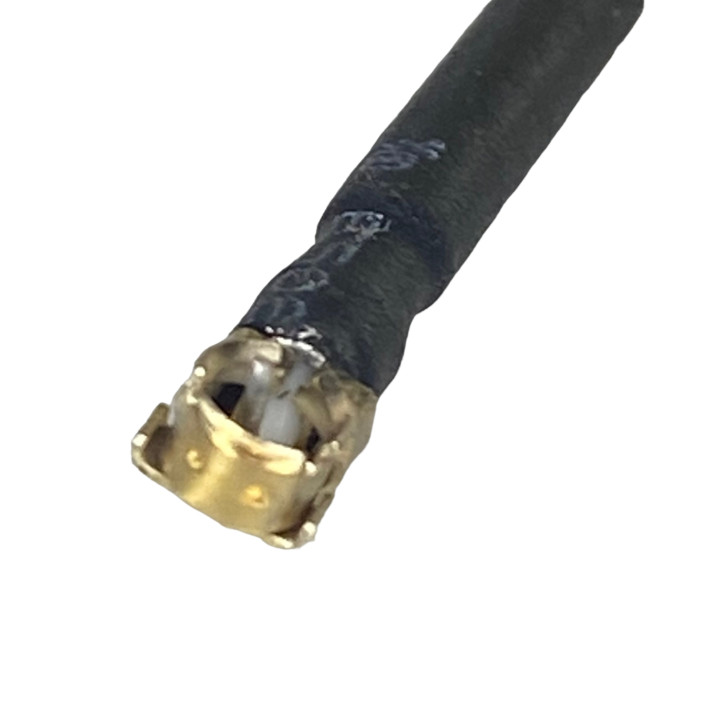

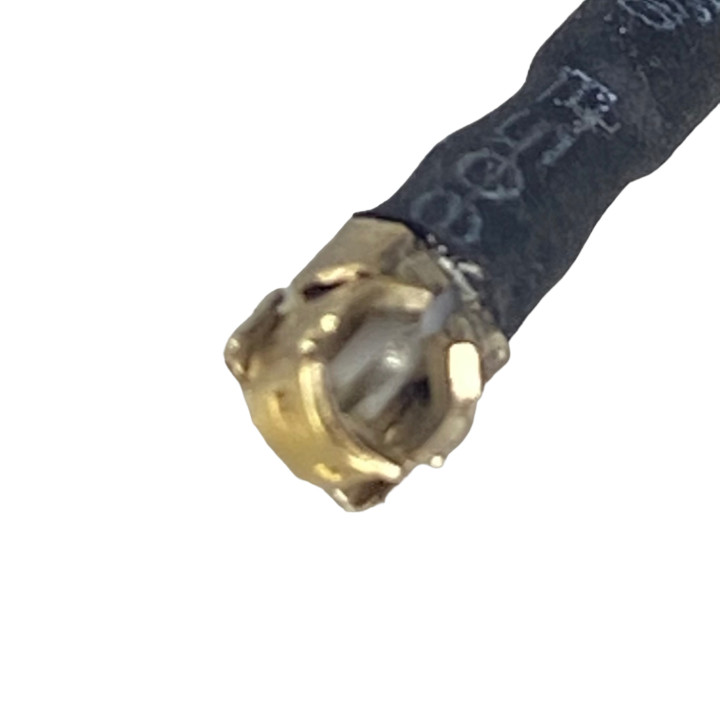

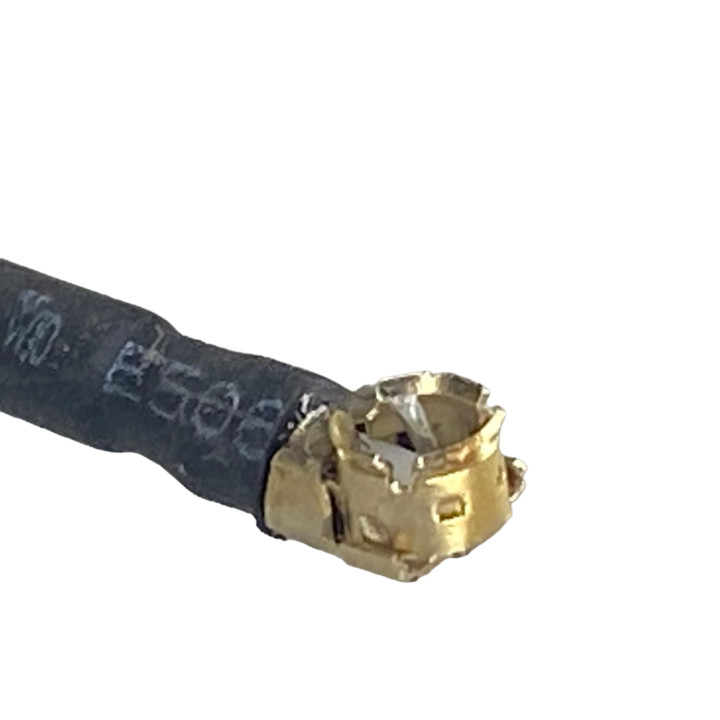

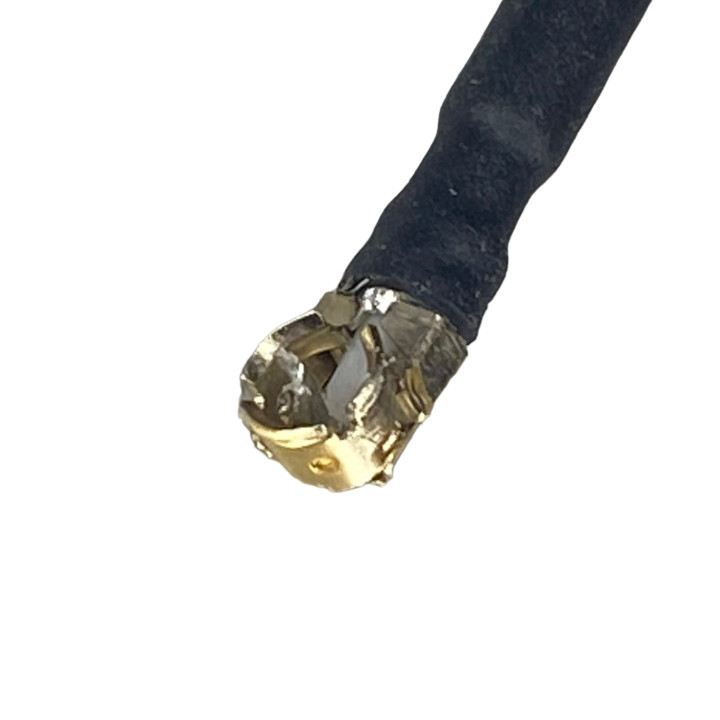

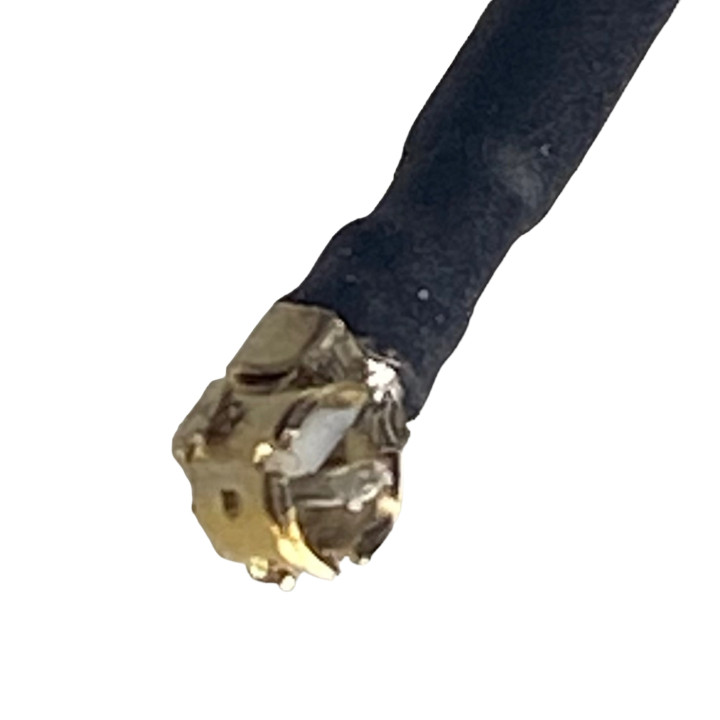

Pigtail (adapter) is used to connect antenna with SMA connector RF module which has antenna socket type MHF®-SW23. As shown in the sample photos

THE MHF®-SW23 PLUG IS SOMETIMES CALLED MINI MS156 although in fact the MS156 is a measuring plug.

The MHF®-SW23 socket is often found in routers, e.g. MikroTik and of course other brands. The size and shape of the connector The MHF®-SW23 resembles the U.FL / MHF4 connectors. It differs from them in that it does not has a pina - they are female with a characteristic plastic funnel with contact in the depths.

The main purpose of the MHF®-SW23 connector is measurement function. Using the offered pigtail, you can connect an antenna external.

SPECIFICATION:

type product: RF pigtail (RF connector)

CONNECTOR 1: MHF®-SW23 plug male

CONNECTOR 2: SMA socket

cable : RG178

wave impedance: 50 ohm

product length: 20cm

ATTENTION:

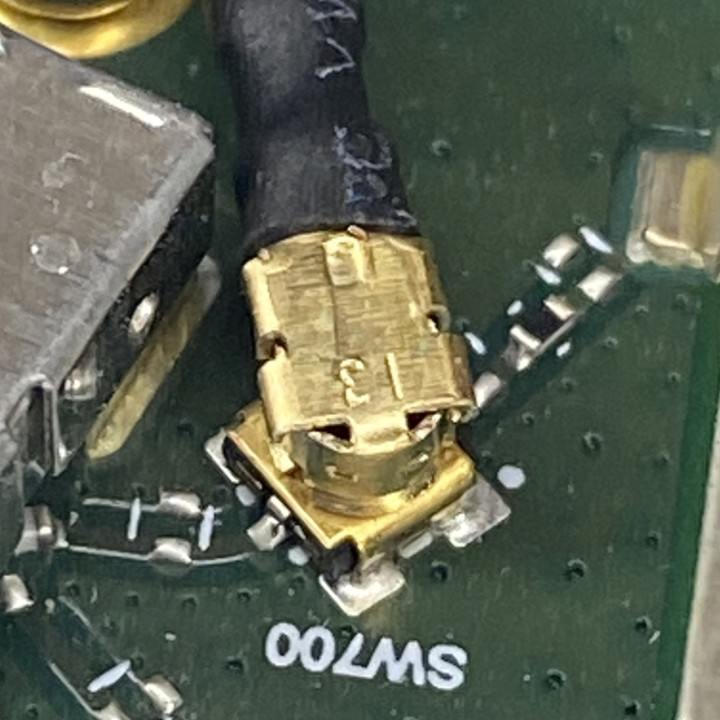

The offer is for a pigtail. Photo of the board is an example of the use of a pigtail and is not the subject of this offers.

  • Brand
    RF CONNECTORS
  • Reference
    PT_MHFSW23/SMAF
  • In stock
    64 Items
  • Condition
    New
  • EAN13
    5904734564386
