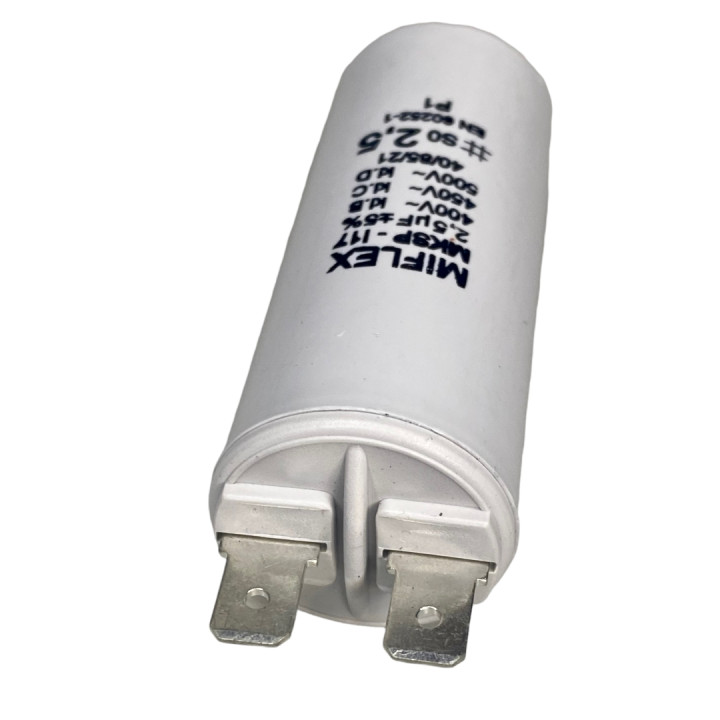

Motor capacitor 2.5uF 400V VERY SMALL con

CAPACITOR MOTOR WORK 2.5uF/450V MIFLEX CABLES Polish product

LONG LIFETIME 10000 hours

***Down capacitors with wires can be ordered for an ADDITIONAL CHARGE of 5 pln ends shown in photos - details at the end description.

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Are used:

• lawn mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

SPECIFICATION TECHNICAL

• Manufacturer MIFLEX
• Capacitor type: polypropylene
• Application of capacitors for motors, work
• Capacitance 2.5µF
• Operating voltage 450V
• Body dimensions Ø25 x 55mm
• Operating temperature -25...85
• Tolerance ±10%
• Climate category 25/85/21
• Capacitor Series: MKSP-I17
• Fastening: M8 screw
• Lifespan 10000h hello
• Leads CONNECTORS 6.3mm
• Gross weight: 0.1 kg

Selection capacity:

It is necessary always refer to the documentation, the condition found in the device. Important the information is that you can always increase the capacity (max. 20%) in in relation to the damaged one. Too much capacity causes a drop in speed rotational speed and engine power. Too small a capacity causes the engine to have problem with starting.

Symptom capacitor damage:

• optical inspection - melting on the outside in the form of gray "lava" ++
• auditory inspection - engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine capacitor damage, but it may may not be the only fault in the drive system.

***Additional tip assembly:

After When selecting a capacitor, you should choose an offer whose title starts with " Terminal payment... ".

If If you order several capacitors, please include them in the order notes ( please avoid separate message) please write to which capacitors, which endings.
