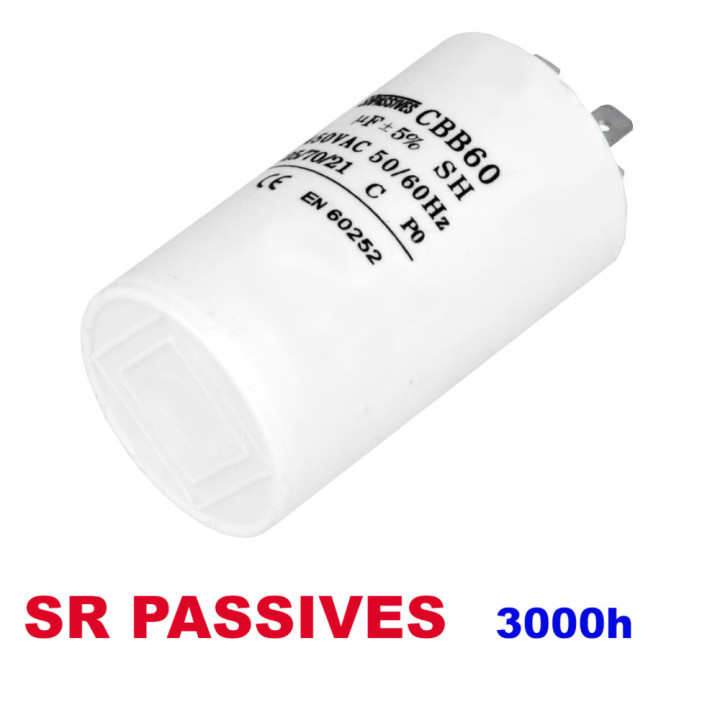

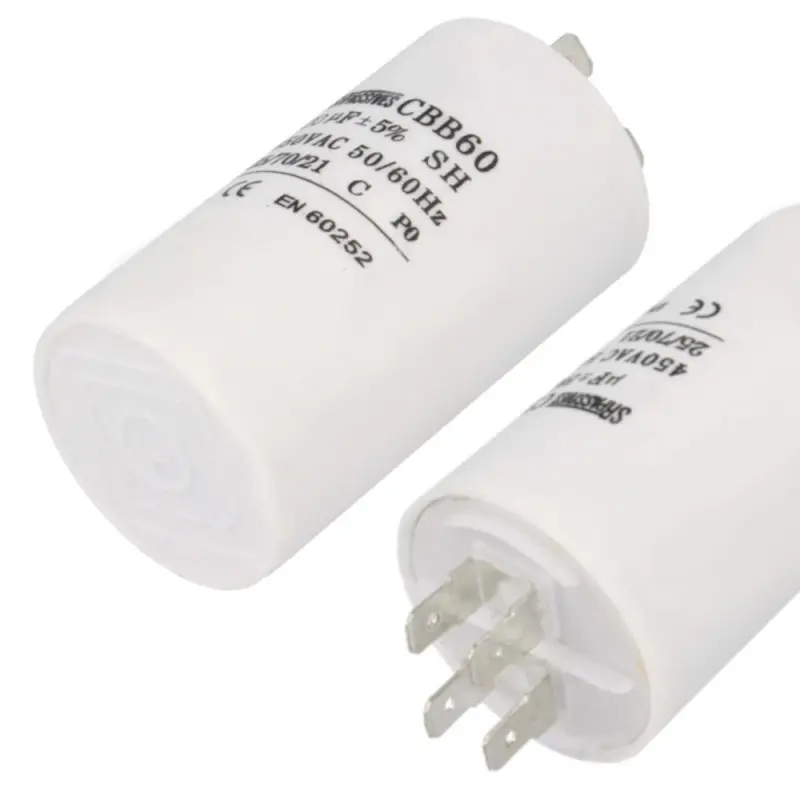

Motor capacitor STARTING WORK 16uF / 450V

ENGINE CAPACITOR WORKING 16uF /450V CONNECTORS 6.3mm SR PASSIVES

Motor starting capacitor - working works with asynchronous electric motors powered by electricity variable.

In everyday life we encounter them in:

• lawn mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

TECHNICAL SPECIFICATION

• Manufacturer: SR PASSIVES
• Capacitor type: polypropylene
• Capacitor Applications: For Motors asynchronous
• Capacitance 16µF
• Operating voltage: 450V
• Body dimensions: 40 x 70mm
• Operating temperature: -25...85°C
• Tolerance: ±5%
• Lifespan: 3000h
• Pins: DOUBLE CONNECTORS 6.3mm

Capacity selection:

You should always be guided by the documentation and the status found in device.

Important information:

you can always increase the capacity (max. 20%) in relation to damaged:

• Too much capacity causes a drop in speed speed and engine power (actually a drop in torque).
• Too small a capacity causes the engine to have problem with starting.

Symptoms of capacitor damage:

• optical inspection - external melting in the form of gray "lava" ++
• auditory inspection - engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine the damage capacitor, but this may not be the only fault in the system driving
