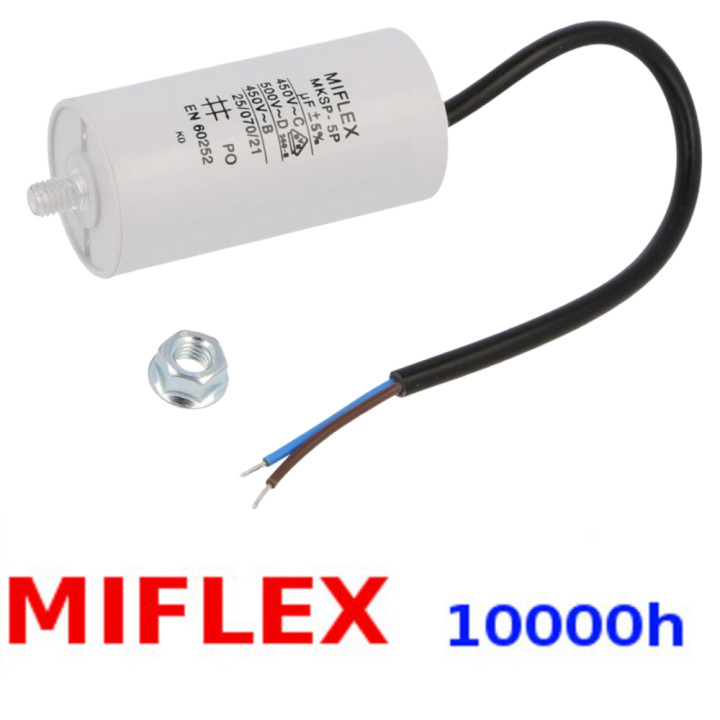

MIFLEX 40uF 450Vac motor capacitor POLISH

POLISH CAPACITOR MOTOR WORK 40uF/450V MIFLEX CONNECTORS

LONG LIFETIME 10000 hours

***Down capacitors with wires can be ordered for an ADDITIONAL CHARGE ends shown in photos - details at the end of the description.

After When selecting a capacitor, you should choose an offer whose title starts with " Surcharge end... " and add to cart.

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Are used:

• lawn mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

TECHNICAL SPECIFICATION

• Manufacturer MIFLEX
• Capacitor type: polypropylene
• Application of capacitors for motors, work
• Capacitance 40µF
• Operating voltage 450V
• Body dimensions fi - 45 x 114mm
• Operating temperature -25...70°C
• Tolerance ±10%
• Climate category 25/70/21
• Lifespan 10000h
• Derivations CABLES
• M8 mounting screw
• Gross weight: 0.23kg


Capacity selection:

You should always be guided by the documentation and the status found in device. Important information - that you can always increase the capacity ( max by 20%) compared to the damaged one. Too much capacity causes a drop in engine speed and power (actually a drop torque). Too small a capacity will cause the engine to may have trouble starting.

Symptoms of capacitor damage:

• optical inspection - external melting in the pot gray "lava" ++
• auditory inspection - the engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine the damage capacitor, but this may not be the only fault in the system drive.

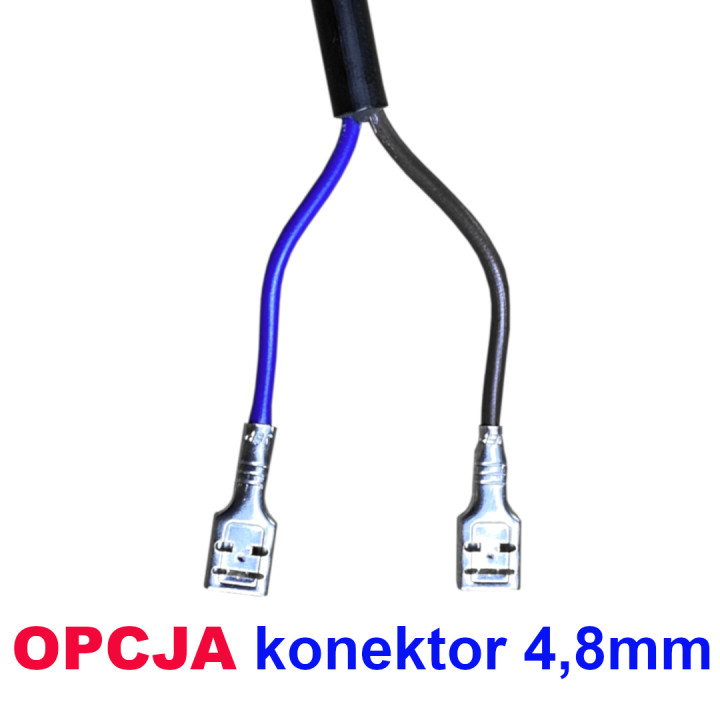

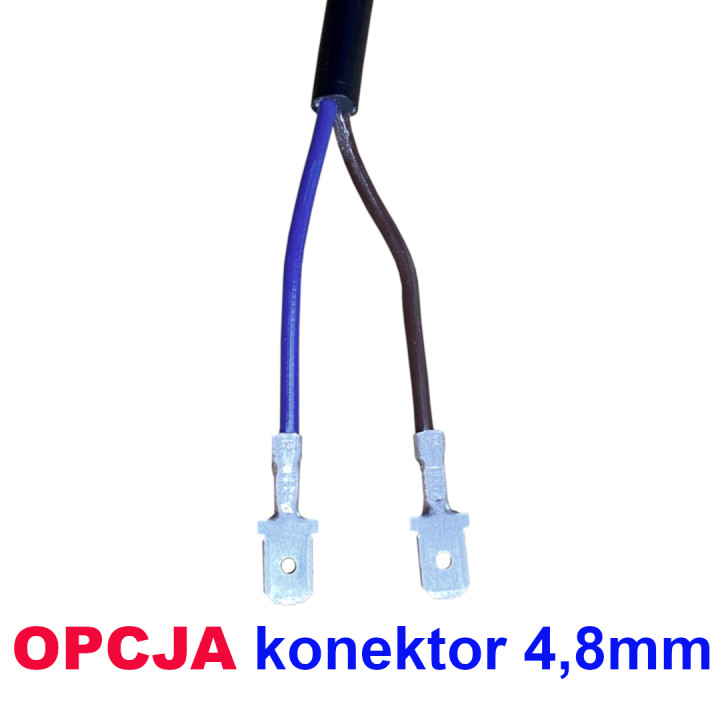

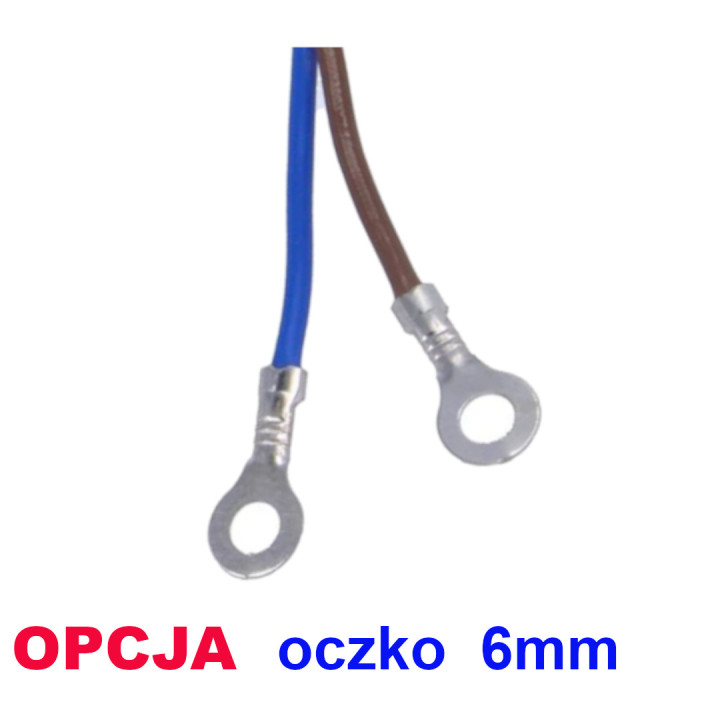

***Additional tip assembly:

After When selecting a capacitor, you should choose an offer whose title starts with " Terminal payment... ".

If If you order several capacitors, please include them in the order notes ( please avoid separate message) please write to which capacitors, which endings.
