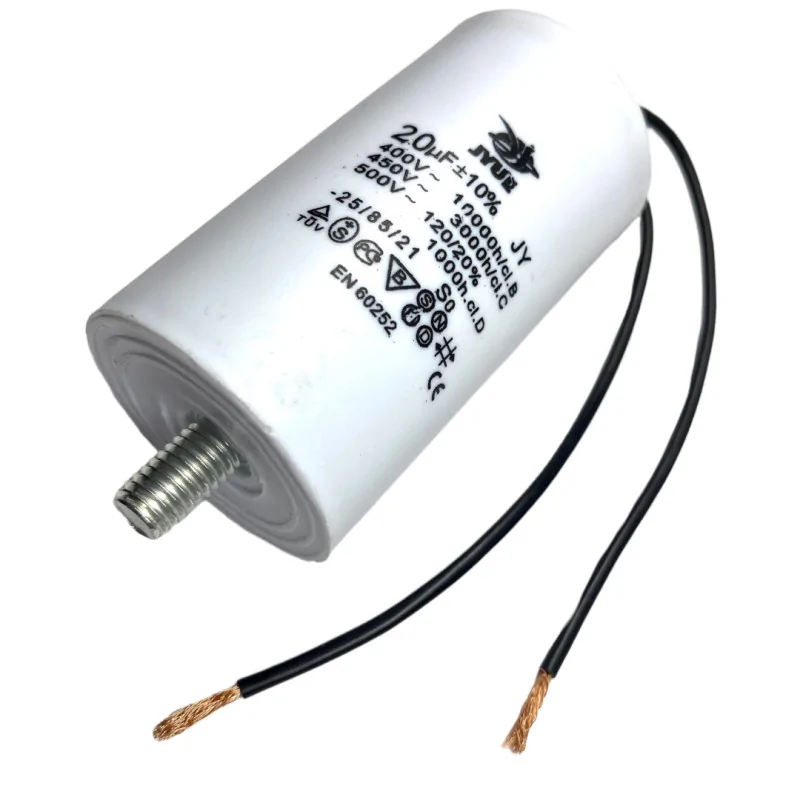

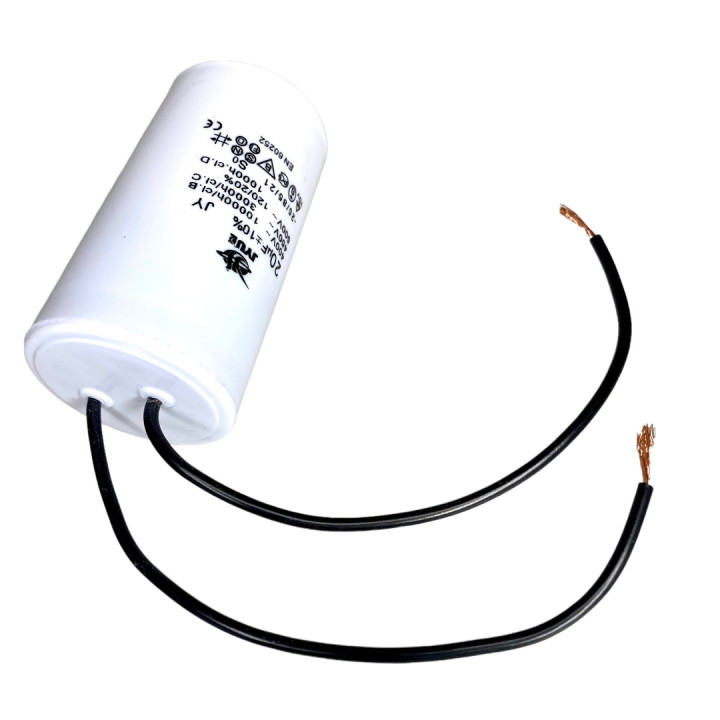

CAPACITOR STARTING/RUN FOR ENGINE 20uF/450V CABLES

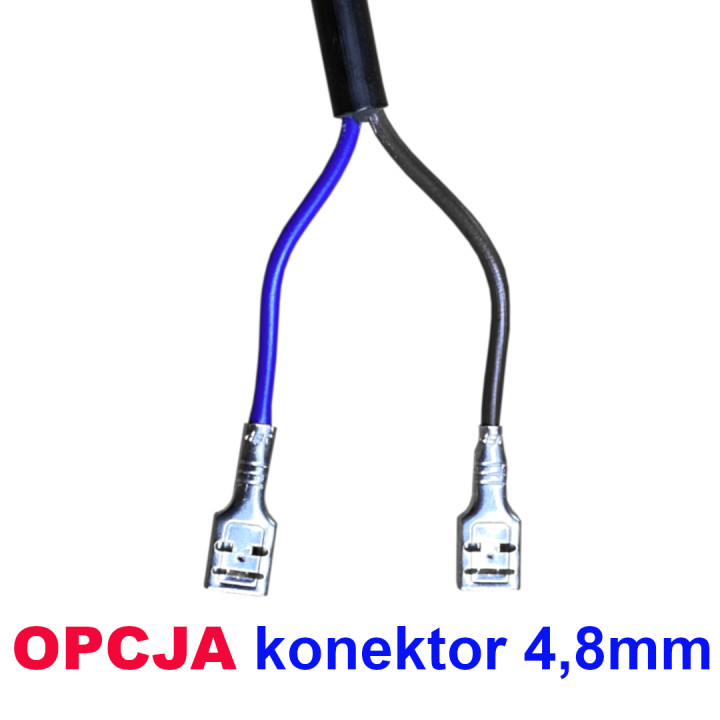

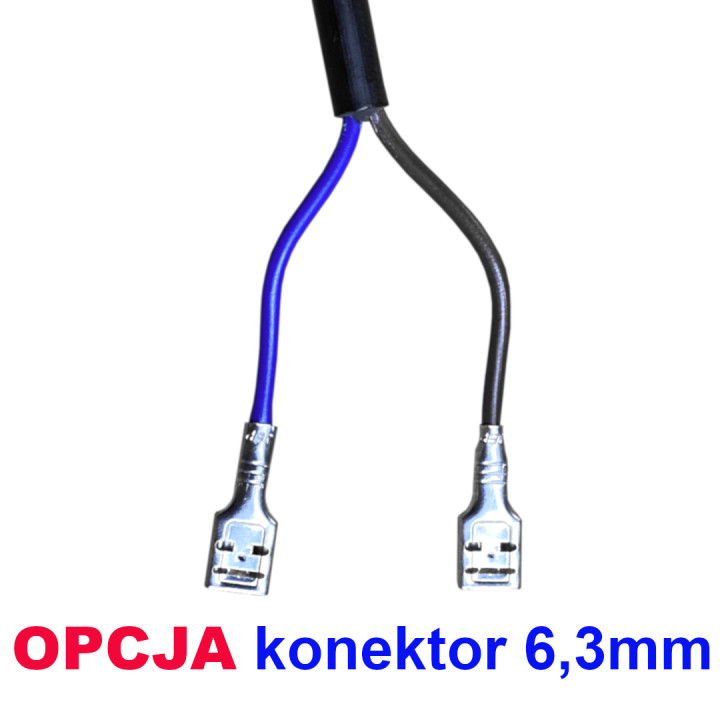

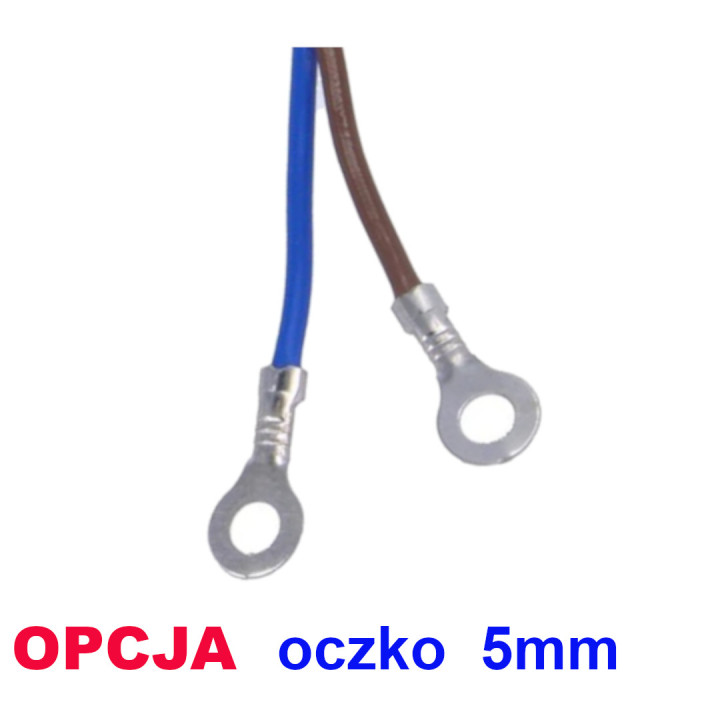

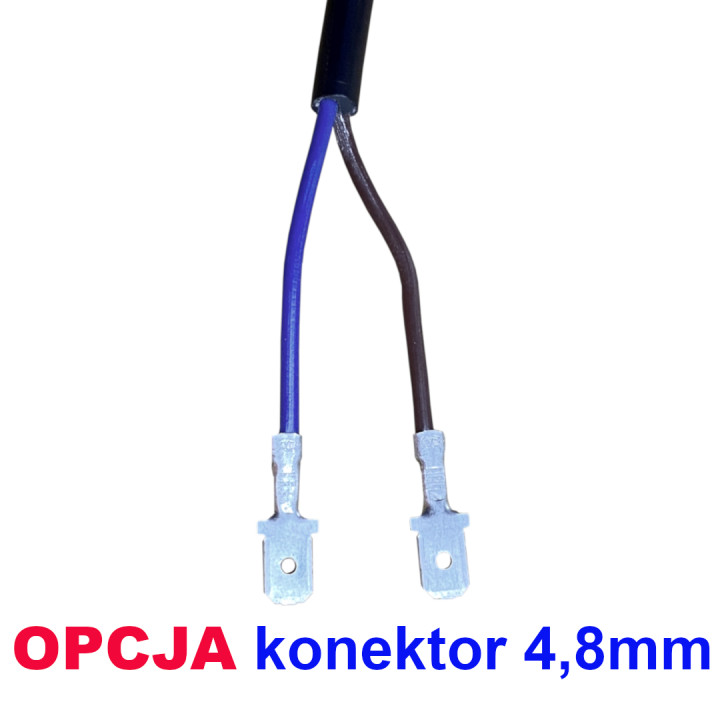

***Down capacitors with wires can be ordered for an ADDITIONAL CHARGE ends shown in photos - details at the end of the description.

After When selecting a capacitor, you should choose an offer whose title starts with " Surcharge end... " and add to cart.

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Are commonly used:

• lawn mowers
• fans
• central heating circulation pumps
• blowers at central heating furnaces
• screw feeders for pellets or coal dust in furnaces WHAT
• Entrance gate actuators
• and others

SPECIFICATION TECHNICAL

• CBB60 Series
• Model CBB60CN20
• Capacitor type: polypropylene
• Application of capacitors for motors: running, starting
• Capacitance 20µF
• Operating voltage 450V
• Body dimensions Ø40 x 73mm
• Operating temperature -25...70
• Tolerance ±10%
• Climate category 25/85/21
• M8 mounting screw - WITHOUT NUT
• Lifespan 10000h FOR 400Vac (standard single-phase power grid) Poland )
• Outputs CABLES
• Compliant with: IEC60252-1:2001, GB/T 3667.1-2005, RoHS
• Insulation resistance > 3000Mohm
• Loss Tg<+0.002 for (50...100Hz)
• Gross weight: 0.1 kg
