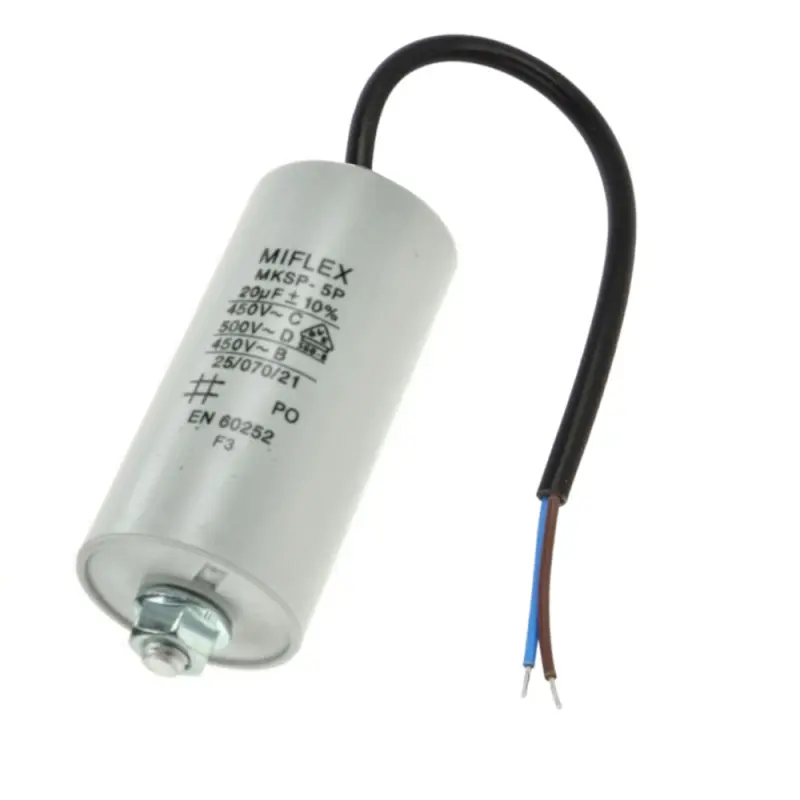

MIFLEX 20uF 450Vac motor capacitor POLISH

LONG LIFETIME 10000 hours

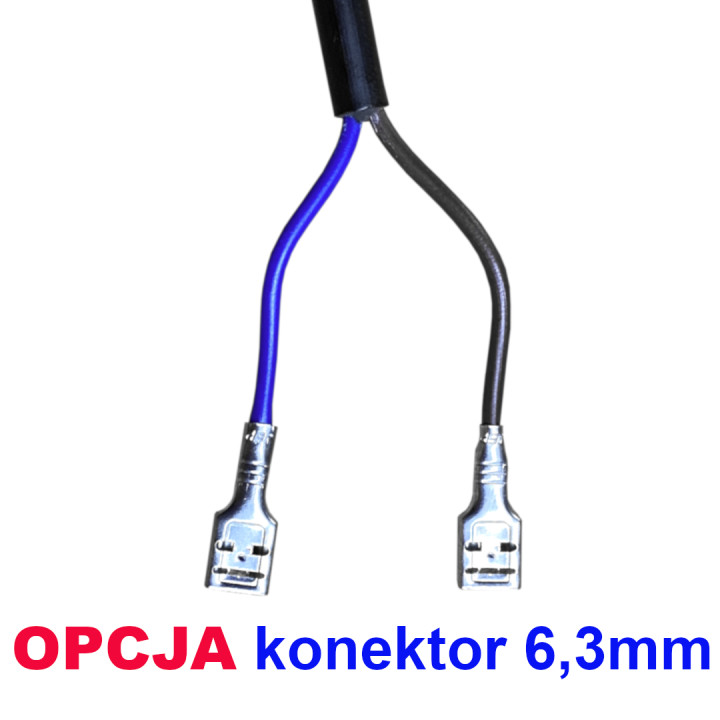

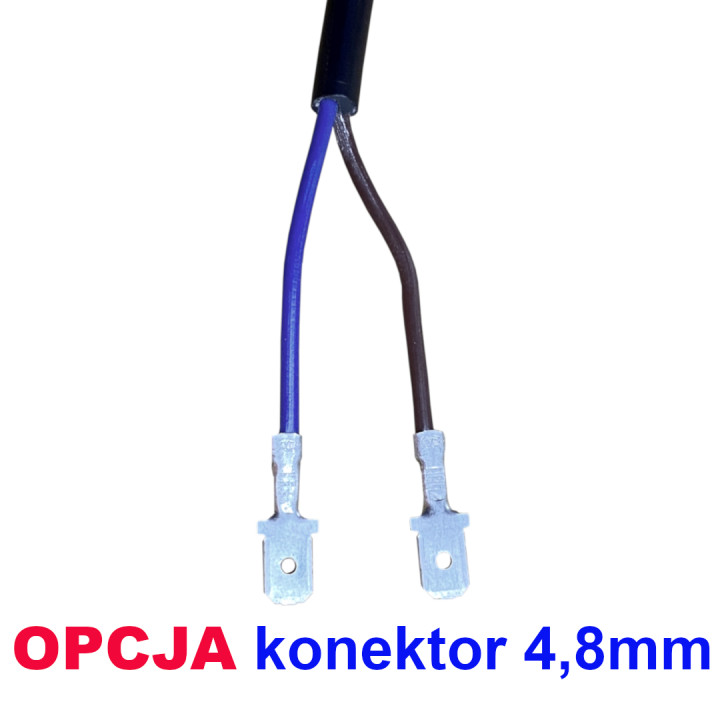

***Down capacitors with wires can be ordered for an ADDITIONAL CHARGE ends shown in photos - details at the end of the description.

After When selecting a capacitor, you should choose an offer whose title starts with " Surcharge end... " and add to cart.

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Are used:

• mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

SPECIFICATION TECHNICAL

• Manufacturer MIFLEX
• Capacitor type: polypropylene
• Application of capacitors for motors, work
• Capacitance 20µF
• Operating voltage 450V
• Body dimensions Ø40 x 78m
• Operating temperature -25...70
• Tolerance ±5%
• Climate category 25/701
• Lifespan 10000h
• Outputs CABLES
• Gross weight: 0.1 kg

Selection capacity:

It is necessary always refer to the documentation and the condition found in the device.

Important information:

Always we can increase the capacity (max by 20%) compared to the damaged one. Too large capacity causes a decrease in engine speed and power. Too small capacity means the engine may have difficulty starting.

Symptoms capacitor damage:

• optical inspection - melting on the outside in the form of gray "lava" ++
• auditory inspection - engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine capacitor damage, but it may may not be the only fault in the drive system.

***Additional tip assembly:

After When selecting a capacitor, you should choose an offer whose title starts with " Terminal payment... ".

If If you order several capacitors, please include them in the order notes ( please avoid separate message) please write to which capacitors, which endings.
