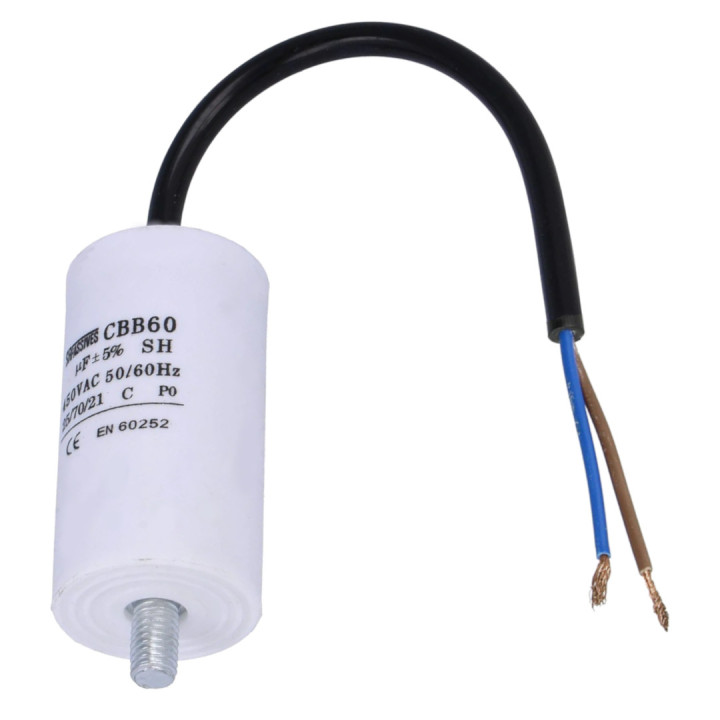

Motor capacitor STARTING WORK 16uF / 450V

ENGINE CAPACITOR WORKING 1 6uF / 450V SR PASSIVES CABLES

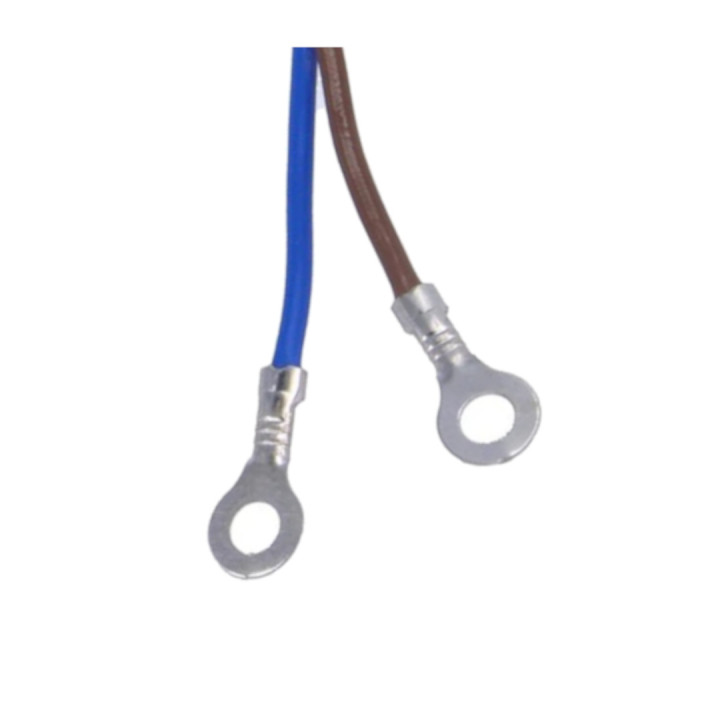

***Down capacitors with wires can be ordered for an ADDITIONAL CHARGE ends shown in photos - details at the end of the description.

After When selecting a capacitor, you should choose an offer whose title starts with " Surcharge end... " and add to cart.

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Are used in:

• lawn mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

TECHNICAL SPECIFICATION

• Manufacturer: SR PASSIVES
• Capacitor type: polypropylene
• Capacitor Applications: For Motors asynchronous
• Capacitance 1 6µF
• Operating voltage: 450V
• Body dimensions: 40 x 70mm
• Operating temperature: -25...85°C
• Tolerance: ±5%
• Lifespan: 3000h
• Leads: 190mm CABLES

Capacity selection:

You should always be guided by the documentation and the status found in device.

Important information:

you can always increase the capacity (max. 20%) in relation to damaged:

• Too much capacity causes a drop in speed speed and engine power (actually a drop in torque rotary).
• Too small a capacity causes the engine to have problem with starting.

Symptoms of capacitor damage:

• optical inspection - external melting in the form of gray "lava" ++
• auditory inspection - engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine the damage capacitor, but this may not be the only fault in the system drive.

***Additional tip assembly:

After selecting the capacitor, you need to choose the offer that you want the title begins "Terminal payment...".

If you order several capacitors, please include them in the comments. to order (please avoid a separate message) please write to which capacitors, which terminals.
